FC5989-0404S Aeroquip by Danfoss | Lifesaver 100R2 TTC Reusable Hose Fitting | FC Series | -04 Braze x -04 Reusable Hose End | Steel
FC5989-0404S Aeroquip by Danfoss | Lifesaver 100R2 TTC Reusable Hose Fitting | FC Series | -04 Braze x -04 Reusable Hose End | Steel
FC5989-0404S Aeroquip by Danfoss | Lifesaver 100R2 TTC Reusable Hose Fitting | FC Series | -04 Braze x -04 Reusable Hose End | Steel
FC5989-0404S Aeroquip by Danfoss | Lifesaver 100R2 TTC Reusable Hose Fitting | FC Series | -04 Braze x -04 Reusable Hose End | Steel

FC5989-0404S Aeroquip by Danfoss | Lifesaver 100R2 TTC Reusable Hose Fitting | FC Series | -04 Braze x -04 Reusable Hose End | Steel

$31.90 - $31.90
$31.90
$31.90 - $31.90
$31.90

Aeroquip® by Danfoss

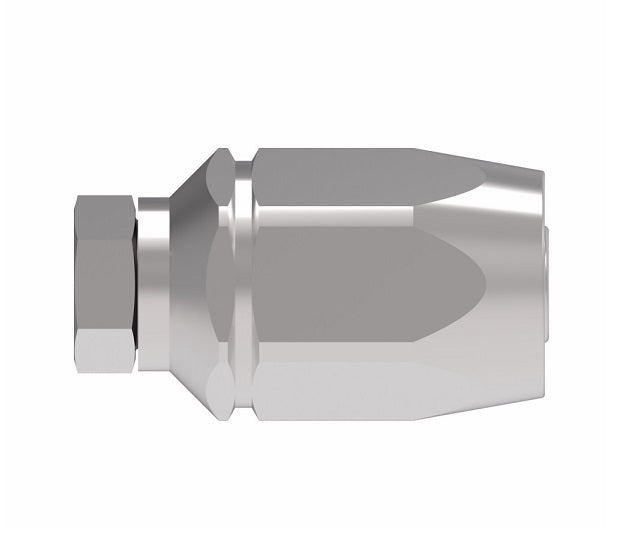

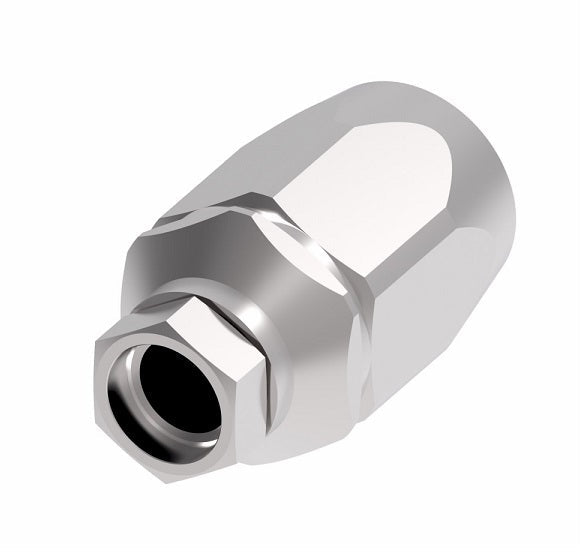

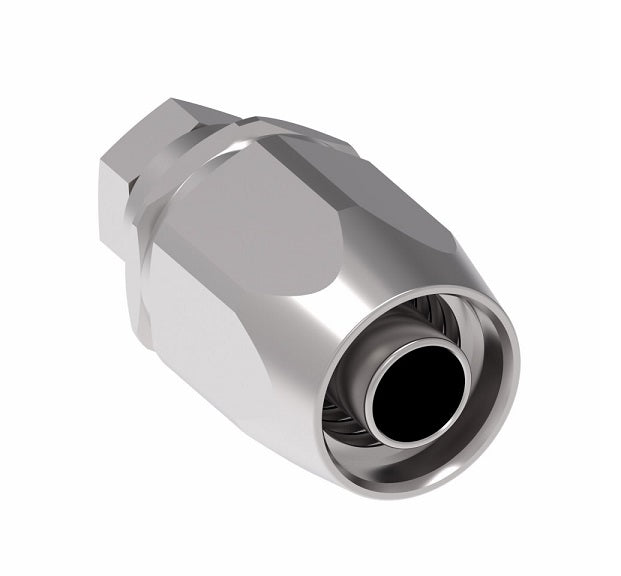

100R2 TTC Reusable Hose Fitting - FC Series - Lifesaver - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC5989-0404S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Braze End, 1/4in Reusable Hose End
Material(s): Steel
Compatible with the following Series: GH793 Series
Technical Info:
Note:
  • For use with GH793 hose ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Tube Size A B D EØ
FC5989-0404S -04 1/4" 2.03" 0.25" 0.86" 0.17"
FC5989-0606S -06 3/8" 2.22" 0.38" 0.88" 0.31"
FC5989-0808S -08 1/2" 2.40" 0.50" 0.89" 0.39"

*B dimension is counterbore diameter for mating tubing.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
