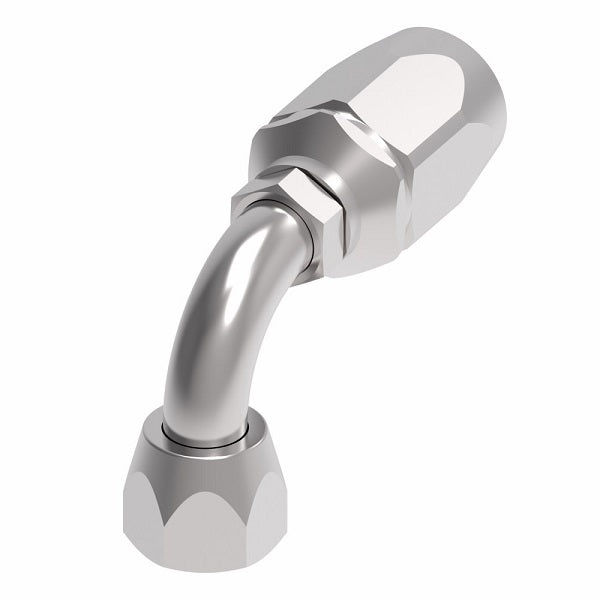

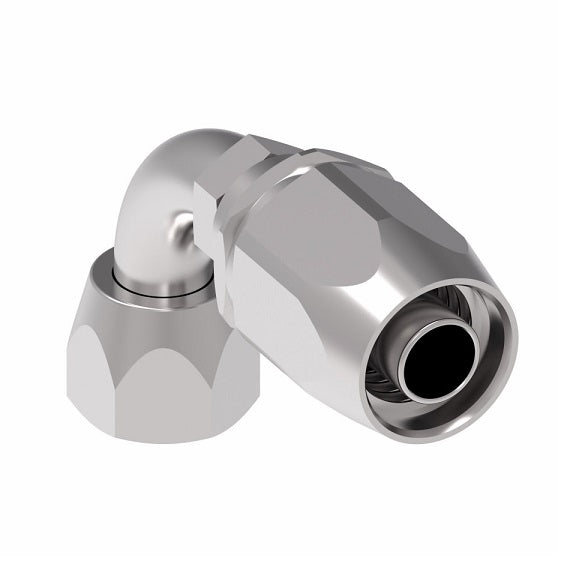

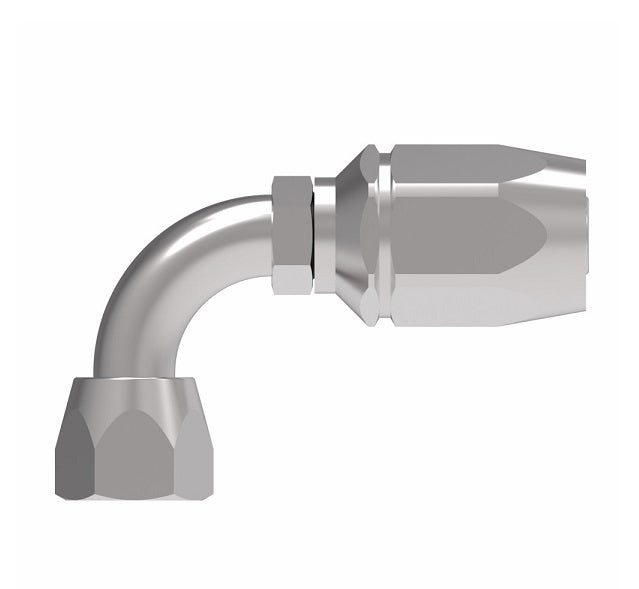

FC5992-1008S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -10 Female 37° JIC Swivel x -08 Reusable Hose End | Steel
FC5992-1008S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -10 Female 37° JIC Swivel x -08 Reusable Hose End | Steel
FC5992-1008S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -10 Female 37° JIC Swivel x -08 Reusable Hose End | Steel
FC5992-1008S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -10 Female 37° JIC Swivel x -08 Reusable Hose End | Steel

FC5992-1008S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -10 Female 37° JIC Swivel x -08 Reusable Hose End | Steel

$111.32 - $111.32
$111.32
$111.32 - $111.32
$111.32

Aeroquip® by Danfoss
100R2 TTC Reusable Hose Fitting - FC Series - Female 37° JIC Swivel Short Drop - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC5992-1008S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female JIC, 1/2in Reusable Hose End
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: GH793 Series
Technical Info:
Note:
  • For use with GH793 hose ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ H
FC5992-0404S -04 7/16-20 2.40" 1.23" 0.17" 0.68"
FC5992-0606S -06 9/16-18 2.72" 1.38" 0.31" 0.85"
FC5992-0808S -08 3/4-16 3.02" 1.52" 0.39" 1.09"
FC5992-1008S -08 - - - - -
FC5992-1212S -12 1-1/16-12 4.11" 2.24" 0.61" 1.82"
FC5992-1616S -16 1-5/16-12 4.84" 2.79" 0.82" 2.39"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
