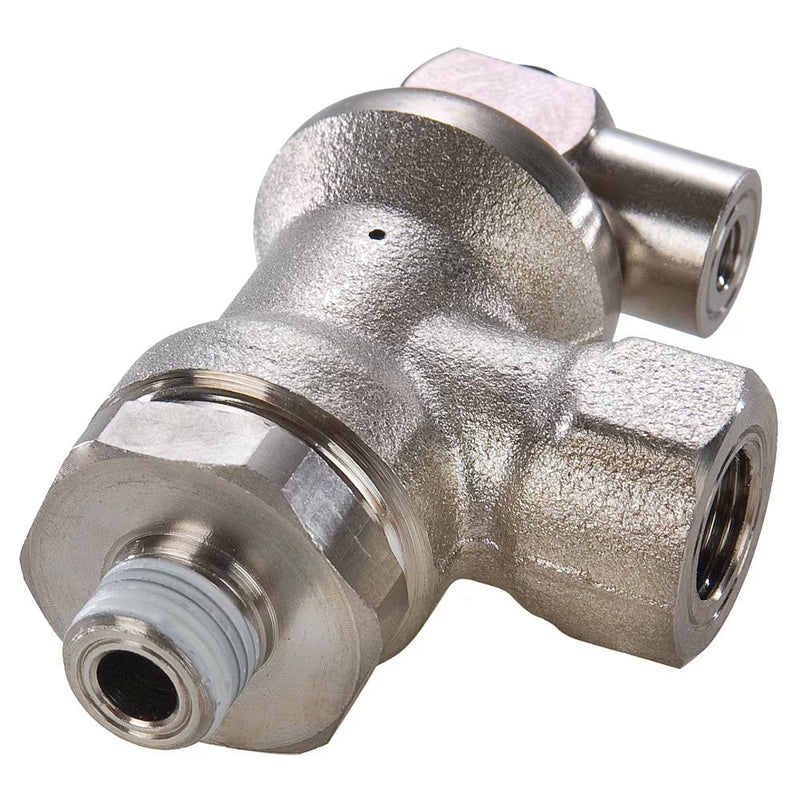

FC608-4R-2R by Parker | Threaded Port Lock Out Valve | 1/8" Male BSPT Thread x 1/4" Female BSPT Thread | 51.5 mm Length | Multi-Plane Swivel | Brass

FC608-4R-2R by Parker | Threaded Port Lock Out Valve | 1/8" Male BSPT Thread x 1/4" Female BSPT Thread | 51.5 mm Length | Multi-Plane Swivel | Brass

Save $59.60 Save $59.60
$149.00
$149.00 - $149.00
$149.00
$89.40
$89.40 - $89.40
$89.40

by Parker Hannifin
Blocking Valves:FC608 Threaded Port Lock-Out Valve - BSPT
Specifications for Variant SKU: FC608-4R-2R Parker
Series: FC608 Series
Shape (Orientation): Multi-Plane Swivel
Material(s): Brass, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel, Silicone Free, Valved
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Nickel-plated brass threads
  • NBR seals
  • Silicone free
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Packaging
  • Textile
  • Machine Tools
Pressure Range: 15 to 145 PSI (1.0 to 9.9 bar)
Temperature Range: -4° to +160° F (-20° to +71.1° C)
Leak Rate: <3.2CCM
Number of Cycles: >10 Million at 68°F and 1 HZ
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number BSPT 1 BSPT 2 Hex H H1 H2 L
FC608-4R-2R 1/8" 1/4" 21 mm 51.5 mm 31.5 mm 20.0 mm 26.5 mm
FC608-4R-4R 1/4" 1/4" 21 mm 51.5 mm 31.5 mm 20.0 mm 26.5 mm
FC608-6R-6R 3/8" 3/8" 24 mm 55.5 mm 29.0 mm 26.5 mm 34.0 mm
FC608-8R-8R 1/2" 1/2" 241 mm 55.5 mm 29.05 mm 26.5 mm 40.0 mm
