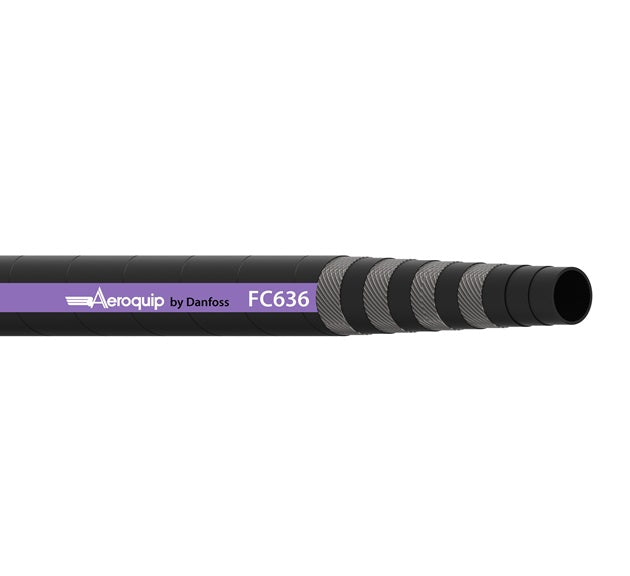

FC636-20 Aeroquip by Danfoss | EPDM 4 Spiral Wire Hydraulic Hose | SAE 100R12 | 1.25" ID

FC636-20 Aeroquip by Danfoss | EPDM 4 Spiral Wire Hydraulic Hose | SAE 100R12 | 1.25" ID

$95.75 - $95.75
$95.75
$95.75 - $95.75
$95.75

Aeroquip® by Danfoss
FC636 Series | EPDM 4 Spiral Wire Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: FC636-20 Danfoss
Brand: Aeroquip
Series: FC636 Series
Hose Color(s): Blue
Dash Size: -20
Internal Diameter: 1.25in
Outer Diameter: 1.87in
Tubing Construction: EPDM
Cover Construction: EPDM
Applicable Specs & Approvals: SAE 100R12
Hose Properties:
Application: Ground support equipment (GSE), industrial phosphate ester based fluids, water glycol systems. SAE Rating: Meets: SAE 100R12
Other Ratings: N/A Tube: EPDM Rubber
Reinforcement: 4-Spiral Wire Cover: Green EPDM rubber
Temperature Range: -40°F to +174°F
(-40°C to +79°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
FC636-12 19 19,0mm 0.75" 31,5mm 1.24" 275,0 bar 4000 psi 1100,0 bar 16000 psi 241,0mm 9.50" 1,31 kg/m 0.88 lbs/ft
FC636-16 25 25,4mm 1.00" 38,6mm 1.52" 275,0 bar 4000 psi 1100,0 bar 16000 psi 305,0mm 12.00" 1,74 kg/m 1.17 lbs/ft
FC636-20 31 31,8mm 1.25" 47,5mm 1.87" 207,0 bar 3000 psi 828,0 bar 12000 psi 419,0mm 16.50" 2,31 kg/m 1.55 lbs/ft
FC636-24 38 38,1mm 1,50" 54,9mm 2.16" 172,0 bar 2500 psi 688,0 bar 10000 psi 508,0mm 20.00" 2,92 kg/m 1.96 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
