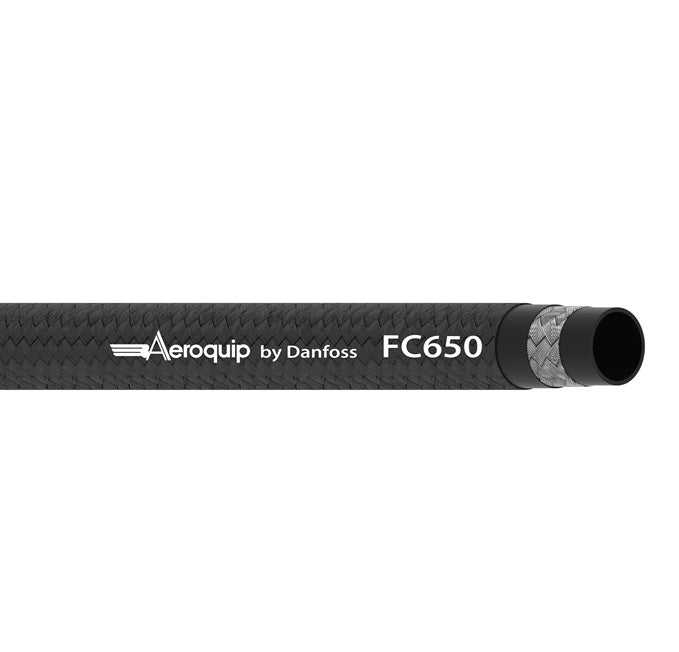

FC650-08 Aeroquip by Danfoss | High Temp Engine, Fuel & Oil Hose Single Wire Braid Transportation Hose | 0.41" ID

FC650-08 Aeroquip by Danfoss | High Temp Engine, Fuel & Oil Hose Single Wire Braid Transportation Hose | 0.41" ID

$9.70 - $9.70
$9.70
$9.70 - $9.70
$9.70

Aeroquip® by Danfoss
FC650 Series | High Temp Engine, Fuel & Oil Hose Single Wire Braid Transportation Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: FC650-08 Danfoss
Brand: Aeroquip
Series: FC650 Series
Hose Color(s): Black
Internal Diameter: 0.41in
Outer Diameter: 0.74in
Tubing Construction: AQP Elastomer
Cover Construction: Polyester
Hose Properties:
Application: Diesel fuel, gasoline, lubricating oils, water, coolant and air.
Not approved for air brake applications.		 SAE Ratings: N/A
Other Ratings: N/A Tube: AQP Elastomer
Reinforcement: Single Wire Braid Cover: Black Polyester Braided
Operating Parameters: -55°F to +302°F (-49°C to +150°C)
Air not to exceed +250°F (+121°C)
Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Vacuum Service Weight
mm in mm in bar psi bar psi mm in kPa in Hg kg/m lbs/ft
FC650-04 4,8mm 0.19" 12,2mm 0.48" 70,0 bar 1000 Psi 280,0 bar 4000 Psi 19,1mm 0.75" 94,8 kPa 28 in Hg. 0,15 kg/m 0.10 lbs/ft
FC650-06 7,9mm 0.31" 16,0mm 0.63" 70,0 bar 1000 Psi 280,0 bar 4000 Psi 31,8mm 1.25" 94,8 kPa 28 in Hg. 0,22 kg/m 0.15 lbs/ft
FC650-08 10,4mm 0.41" 18,8mm 0.74" 70,0 bar 1000 Psi 280,0 bar 4000 Psi 44,5mm 1.75" 94,8 kPa 28 in Hg. 0,28 kg/m 0.19 lbs/ft
FC650-10 12,7mm 0.50" 21,1mm 0.83" 70,0 bar 1000 Psi 280,0 bar 4000 Psi 57,2mm 2.25" 94,8 kPa 28 in Hg. 0,34 kg/m 0.23 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
