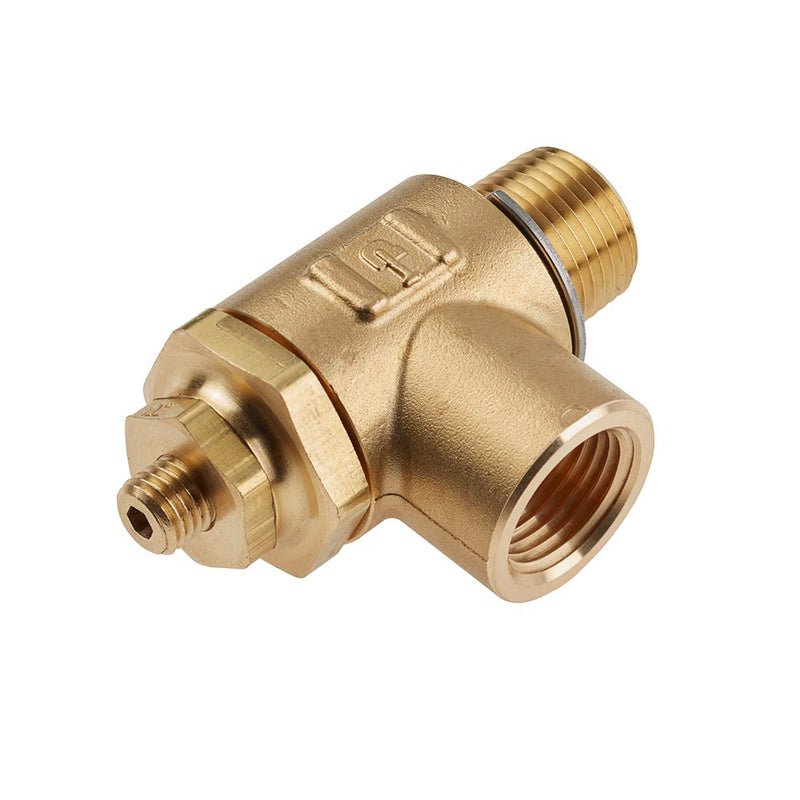

FC703-6 by Parker | Threaded Port Meter Out Metal Flow Control | 3/8" Female NPT x 3/8" Male NPT Thread | 15/16" Hex | 2.44" Length | 90° Elbow | Brass

FC703-6 by Parker | Threaded Port Meter Out Metal Flow Control | 3/8" Female NPT x 3/8" Male NPT Thread | 15/16" Hex | 2.44" Length | 90° Elbow | Brass | Pack of 100

Save $3,379.55 Save $3,379.55
$8,448.88
$8,448.88 - $8,448.88
$8,448.88
$5,069.33
$5,069.33 - $5,069.33
$5,069.33

by Parker Hannifin
Brass Flow Controls:FC703 Threaded Port Meter Out Metal Flow Control – NPT

Package Quantity: 100 Units

Specifications for Variant SKU: FC703-6 Parker | 100 |
Series: FC703 Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Special Properties: Silicone Free, Valved, Flow Control
Product Features:
  • Controls the speed of a pneumatic actuator
  • All brass Construction
  • Allen wrench adjusting screw
  • NPT and BSPP threads
  • Threaded and Push-to-Connect bodies
  • UL94 V-0 Flame Resistance Standard
  • Silicone Free
Markets:
  • Factory/Process Automation
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics Welding
  • End-of-Arm Tooling
  • Factory Automation
  • Automotive Assembly
  • Packaging
  • etc.
Pressure Range: 15 to 150 psi (1.0 to 10.34 bar)
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Polyethylene
  • 95FR
  • Polyurethane 95 Durometer Shore A
  • Semi-rigid Nylon
  • FEP Fluoropolymer
Part Number NPT Hex 1 Hex 2 H Open H Closed L
FC703-2 1/8" 7/16" 5/8" 1.84" 1.70" .67"
FC703-4 1/4" 5/8" 15/16" 2.52" 2.34" 1.00"
FC703-6 3/8" 5/8" 15/16" 2.44" 2.29" 1.00"
FC703-8 1/2" 13/16" 1-1/8" 2.72" 2.60" 1.31"
