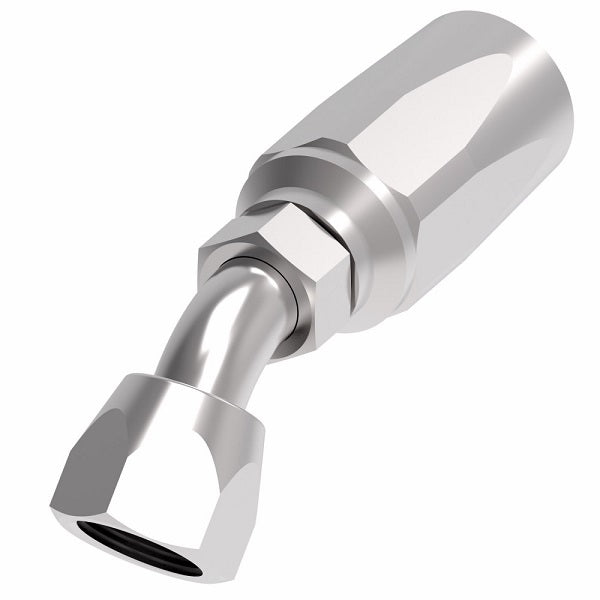

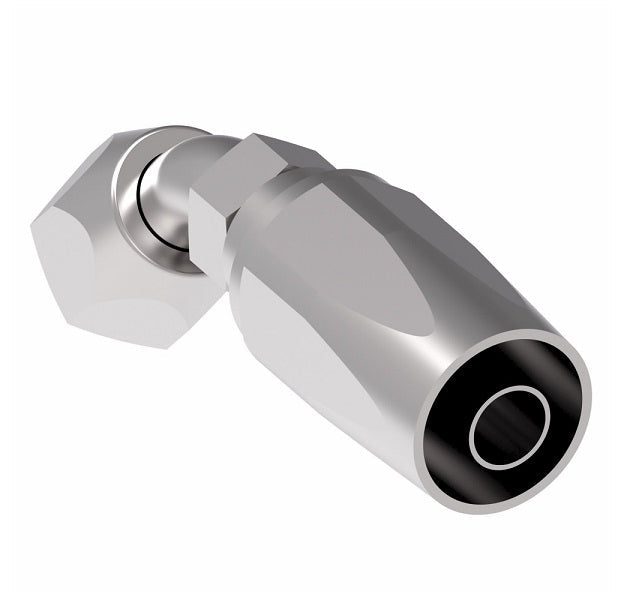

FC7990-0808S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC Swivel 45° Elbow 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel

FC7990-0808S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC Swivel 45° Elbow 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,424.20 - $1,424.20

$1,424.20

$1,424.20 - $1,424.20

$1,424.20

Aeroquip® by Danfoss
1 Wire TTC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC Swivel - 45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC7990-0808S Danfoss \| 10 \|
Shape (Orientation):	45 Degree
Ends Configuration:	1/2in Female JIC, 1/2in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	GH663 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
Fittings are compatible with Danfoss GH663 Hose, ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ	HØ
FC7990-0404S	-04	7/16-20	2.37"	1.33"	0.17"	0.33"
FC7990-0606S	-06	9/16-18	2.75"	1.62"	0.31"	0.39"
FC7990-0808S	-08	3/4-16	3.24"	1.77"	0.39"	0.55"
FC7990-1616S	-16	1-5/16-12	4.88"	2.75"	0.82"	1.07"

>

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
