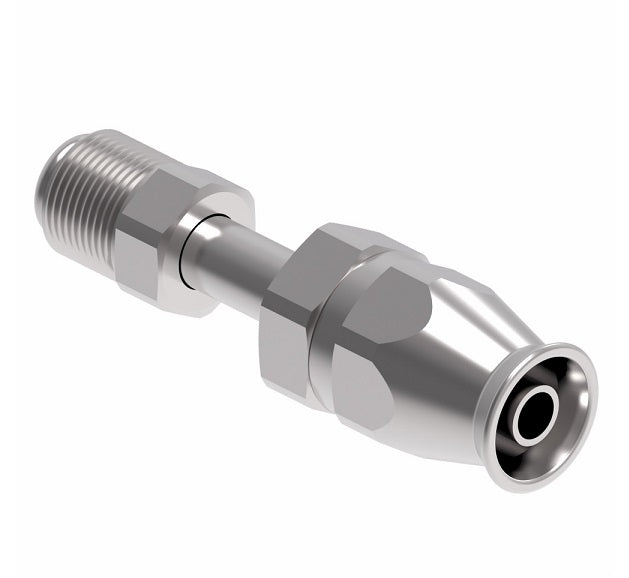

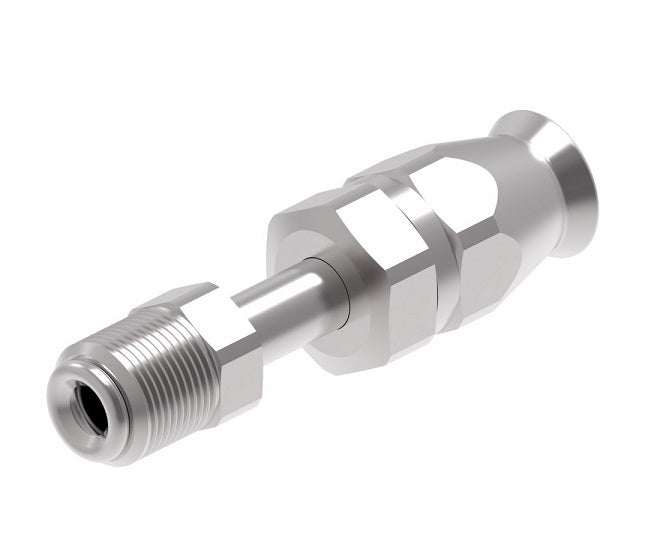

FC9062-0506S Aeroquip by Danfoss | Male SAE Inverted Flare Super Gem PTFE Reusable Hose Fitting | FC Series | -05 Male SAE Inverted Flare x -06 Reusable Hose End | Steel

FC9062-0506S Aeroquip by Danfoss | Male SAE Inverted Flare Super Gem PTFE Reusable Hose Fitting | FC Series | -05 Male SAE Inverted Flare x -06 Reusable Hose End | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$756.60 - $756.60

$756.60

$756.60 - $756.60

$756.60

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - FC Series - Male SAE Inverted Flare - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC9062-0506S Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	5/16in Male Inverted Flare, 3/8in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	2807 Series \| SC-TW Series \| S-TW Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	Sleeve Brass Part Number	Sleeve Stainless Steel Part Number
FC9062-0404S	-04	7/16-24	2.13"	1.66"	0.16"	-	-
FC9062-0505S	-05	1/2-20	2.17"	1.66"	0.23"	-	-
FC9062-0506S	-06	1/2-20	2.21"	1.69"	0.21"	-	-
FC9062-0606S	-06	5/8-18	2.21"	1.69"	0.28"	-	-
FC9062-0808S	-08	3/4-18	2.47"	1.84"	0.38"	-	-
FC9062-1010S	-10	7/8-18	2.78"	2.11"	0.47"	-	-
FC9062-1212S	-12	1-1/16-16	3.02"	2.37"	0.59"	-	-
