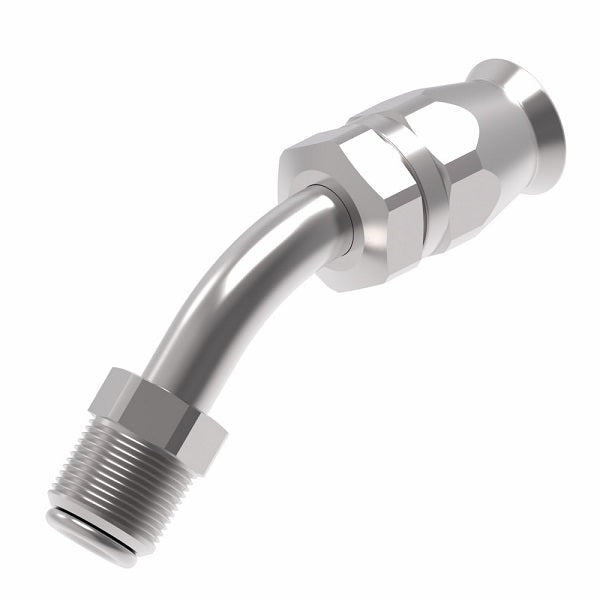

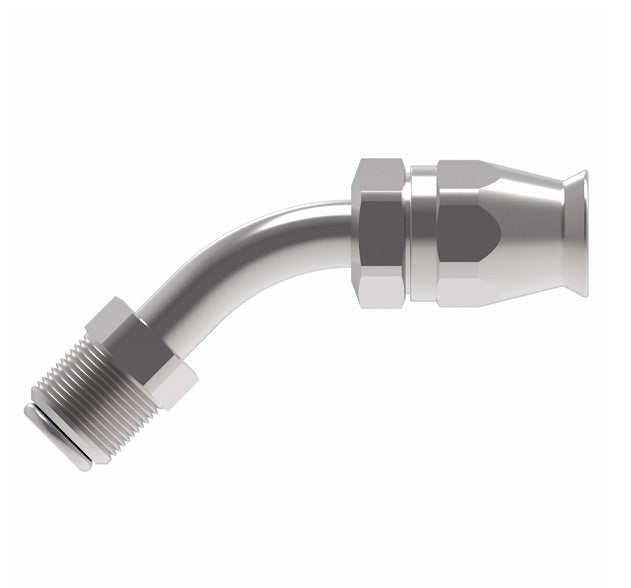

FC9063-0506S Aeroquip by Danfoss | Male SAE Inverted Flare 45° Elbow Super Gem PTFE Reusable Hose Fitting | FC Series | -05 SAE Male SAE Inverted Flare x -06 Reusable Hose End | Steel

FC9063-0506S Aeroquip by Danfoss | Male SAE Inverted Flare 45° Elbow Super Gem PTFE Reusable Hose Fitting | FC Series | -05 SAE Male SAE Inverted Flare x -06 Reusable Hose End | Steel

Name: FC9063-0506S Aeroquip by Danfoss | Male SAE Inverted Flare 45° Elbow Super Gem PTFE Reusable Hose Fitting | FC Series | -05 SAE Male SAE Inverted Flare x -06 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FC9063-0506S Danfoss
Price: 88.53 USD
Availability: InStock

$88.53 - $88.53

$88.53

$88.53 - $88.53

$88.53

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - FC Series - Male SAE Inverted Flare - 45° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FC9063-0506S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	5/16in Male Inverted Flare, 3/8in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	2807 Series \| FC465 Series \| S-TW Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	H	Sleeve Brass Part Number	Sleeve Stainless Steel Part Number
-	-04	-	-	-	-	-	900568-4B	900568-4C
FC9063-0505S	-05	1/2-20	2.46"	1.94"	0.23"	0.96"	900568-5B	900568-5C
FC9063-0506S	-06	1/2-20	2.50"	1.97"	0.21"	0.96"	900568-6B	900568-6C
FC9063-0606S	-06	5/8-18	2.50"	1.97"	0.28"	0.96"	900568-6B	900568-6C
FC9063-0808S	-08	3/4-18	2.66"	2.04"	0.38"	0.93"	900568-8B	900568-8C
FC9063-1010S	-10	7/8-18	2.96"	2.29"	0.47"	1.03"	900568-10B	900568-10C

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
