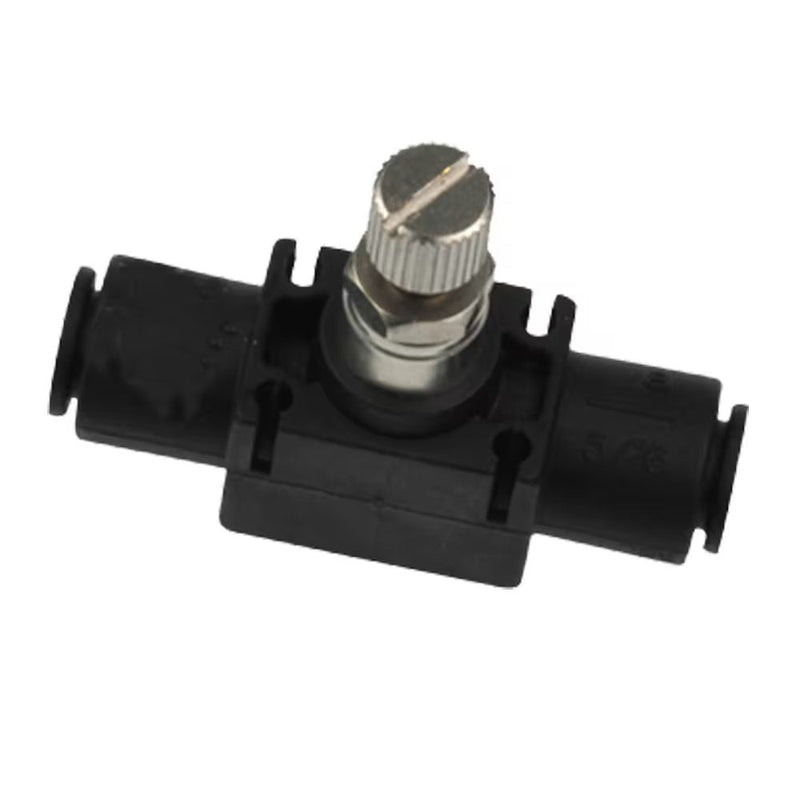

FCB832-8M by Parker | In-Line Bi-directional Flow Control | 8 mm Push-to-Connect x 8 mm Push-to-Connect | 60.5 mm Length | 50.0 mm Width | Straight | Glass-Reinforced Nylon | Pack of 5

FCB832-8M by Parker | In-Line Bi-directional Flow Control | 8 mm Push-to-Connect x 8 mm Push-to-Connect | 60.5 mm Length | 50.0 mm Width | Straight | Glass-Reinforced Nylon | Pack of 5

Save $166.75 Save $166.75
$416.88
$416.88 - $416.88
$416.88
$250.13
$250.13 - $250.13
$250.13

by Parker Hannifin
In-Line Flow Controls:FCB832 In-Line Bi-directional Flow Control

Package Quantity: 5 Units

Specifications for Variant SKU: FCB832-8M Parker | 5 |
Series: FCB832 Series
Shape (Orientation): Straight
Material(s): Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade, Valved, Flow Control
Product Features:
  • Glass reinforced nylon 6.6 body
  • Stainless straight gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated threads
  • Nitrile D seal
  • Panel mountable
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water And Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size Hex H Closed H Open K L L1 N1 N2 T
FCB832-4M 4 mm 5 mm 29.5 mm 33.5 mm 12.0 mm 36.0 mm 15.0 mm 8.0 mm 11.0 mm 2.2 mm
FCB832-6M 6 mm 8 mm 40.0 mm 44.5 mm 17.0 mm 51.0 mm 23.0 mm 11.0 mm 17.0 mm 3.2 mm
FCB832-8M 8 mm 11 mm 44.0 mm 50.0 mm 18.5 mm 60.5 mm 26.0 mm 12.5 mm 20.0 mm 3.2 mm
