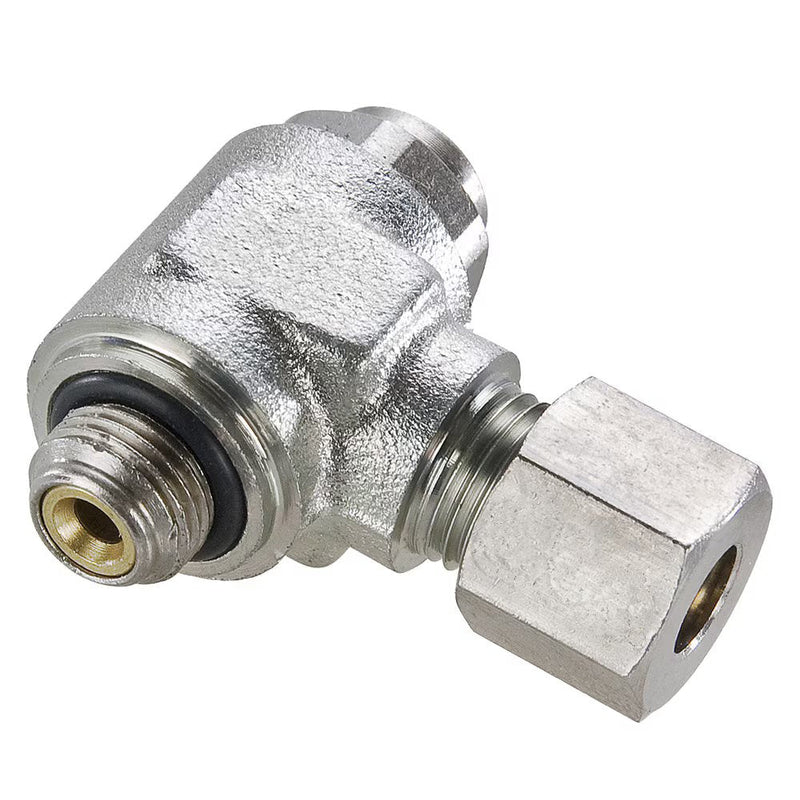

FCK701C-6M-2G by Parker | Knobless Compression Metal Flow Control | 6 mm Compression x 1/8" Male BSPP Thread | 13 mm Height | 90° Elbow | Nickel Plated Brass | Pack of 5

Save $26.92

$214.25

$214.25 - $214.25

$214.25

$187.33

$187.33 - $187.33

$187.33

by Parker Hannifin
Metal Flow Controls:FCK701C Knobless Compression Metal Flow Control - BSPP

Package Quantity: 5 Units

Specifications for Variant SKU: FCK701C-6M-2G Parker \| 5 \|
Series:	FCK701C Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Petrochemical, Valved, Flow Control

Product Features:	Treated brass body Stainless steel gripping ring Electroless-nickel-plated brass adjustment screw Nickel-plated brass locking nut Nickel-plated threads Nitrile D seal
Markets:	Factory/Process Automation Petrochemical Automotive Process
Applications:	Robotics Packaging Textile
Pressure Range:	15 to 145 psi (1.0 to 9.9 bar)
Temperature Range:	-4° to +158° F (-20° to +70° C)
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A Nylon Fluoropolymer


Part Number	Tube Size	BSPP	Hex 1	Hex 2	H	L	L1
FCK701C-4M-2G	4 mm	1/8"	13 mm	10 mm	26.0 mm	25.5 mm	14.5 mm
FCK701C-6M-2G	6 mm	1/8"	13 mm	13 mm	26.0 mm	25.5 mm	14.5 mm
FCK701C-8M-2G	8 mm	1/8"	13 mm	14 mm	26.0 mm	29.5 mm	15.5 mm
FCK701C-8M-4G	8 mm	1/4"	17 mm	14 mm	31.5 mm	31.0 mm	17.0 mm
FCK701C-10M-4G	10 mm	1/4"	17 mm	19 mm	31.5 mm	35.0 mm	19.0 mm
FCK701C-10M-6G	10 mm	3/8"	20 mm	19 mm	44.5 mm	37.5 mm	19.0 mm
FCK701C-10M-8G	10 mm	1/2"	23 mm	19 mm	50.0 mm	37.5 mm	19.0 mm
FCK701C-12M-8G	12 mm	1/2"	23 mm	22 mm	50.0 mm	38.0 mm	21.5 mm
