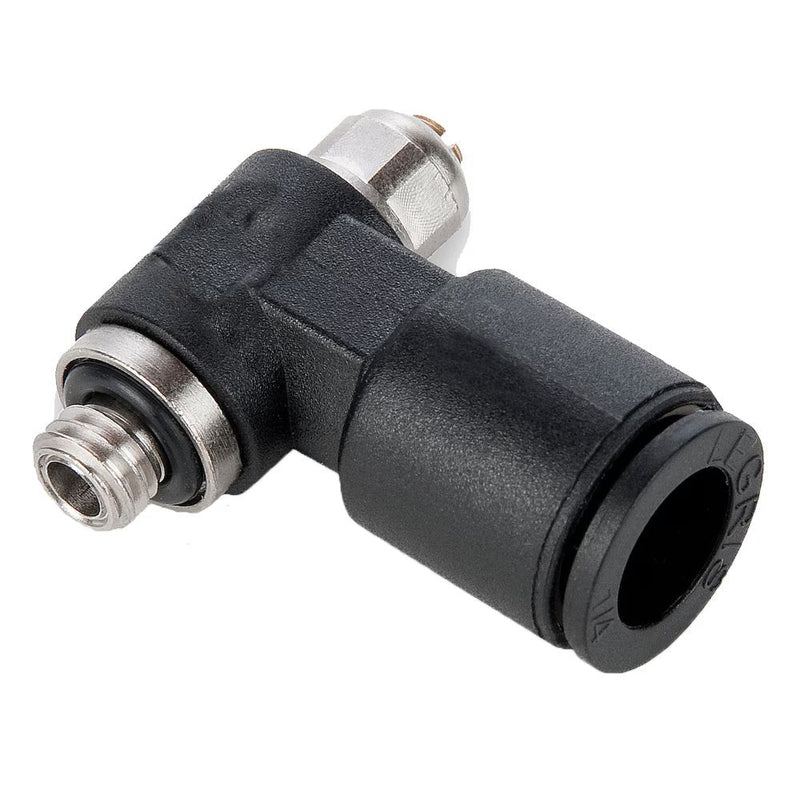

FCMK731-4-4 by Parker | Miniature Flow Controls | 1/4" Push-to-Connect x 1/4" Male NPT Thread | 6 mm Hex | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

FCMK731-4-4 by Parker | Miniature Flow Controls | 1/4" Push-to-Connect x 1/4" Male NPT Thread | 6mm Hex | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

Save $166.40 Save $166.40
$416.00
$416.00 - $416.00
$416.00
$249.60
$249.60 - $249.60
$249.60

by Parker Hannifin
Miniature Flow Controls:FCMK731 Knobless Mini Meter Out Flow Control

Package Quantity: 10 Units

Specifications for Variant SKU: FCMK731-4-4 Parker | 10 |
Series: FCMK731 Series
Shape (Orientation): 90° Elbow
Material(s): Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade, Valved, Mini/Micro Size, Flow Control
Product Features:
  • Glass reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated brass threads
  • Nitrile D seal
  • NPT
  • BSPT
  • BSPP
  • Metric threads
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water And Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size NPT Hex 1 H Open H Closed L
FCMK731-2-0 1/8" 10-32" 6 mm .79" .65" .65"
FCMK731-2-2 1/8" 1/8" 6 mm .85" .71" .71"
FCMK731-4M-0 5/32" 10-32" 6 mm .79" .65" .65"
FCMK731-4M-2 5/32" 1/8" 6 mm .85" .71" .71"
FCMK731-4-0 1/4" 10-32" 6 mm .79" .65" .65"
FCMK731-4-2 1/4" 1/8" 6 mm .85" .71" .73"
FCMK731-4-4 1/4" 1/4" 6 mm .97" .83" .73"
