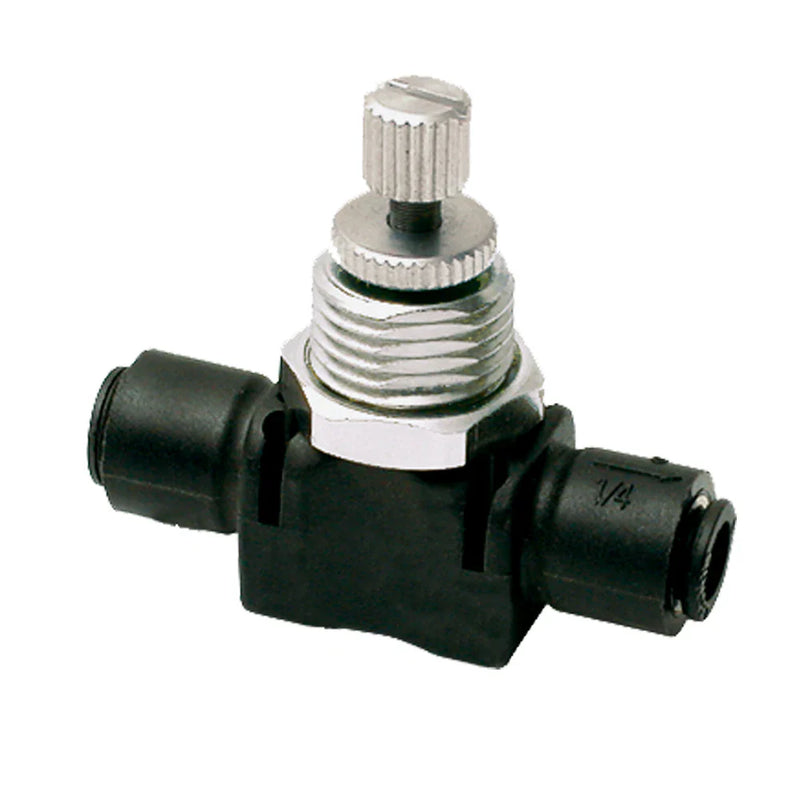

FCPM832-4M by Parker | In-Line Panel Mountable Flow Control | 4 mm Push-to-Connect x 4 mm Push-to-Connect | 36.0 mm Length | Straight | Glass-Reinforced Nylon | Pack of 10

Save $178.22

$445.55

$445.55 - $445.55

$445.55

$267.33

$267.33 - $267.33

$267.33

by Parker Hannifin
In-Line Flow Controls:FCPM832 In-Line Panel Mountable Flow Control

Package Quantity: 10 Units

Specifications for Variant SKU: FCPM832-4M Parker \| 10 \|
Series:	FCPM832 Series
Shape (Orientation):	Straight
Material(s):	Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Food Grade, Valved, Flow Control

Product Features:	Glass reinforced nylon 6.6 body Stainless straight gripping ring Nickel-plated brass adjustment screw Nickel-plated brass locking nut Nickel-plated threads Nitrile D seal Panel mountable
Markets:	Factory/Process Automation Life Science Food Processing Water And Beverage Petrochemical
Applications:	Packaging Filling Dispensing Bottling Pneumatic Circuits
Pressure Range:	15 to 145 psi (1.0 to 9.9 bar)
Temperature Range:	+32° to +158° F (0 to +70° C)
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A Nylon Fluoropolymer


Part Number	Tube Size	Hex 1	Hex 2	H Closed	H Open	K	L	H1	H2	T
FCPM832-4M	4 mm	14 mm	-	21.5 mm	25.5 mm	6.0 mm	36.0 mm	6.5 mm	11.0 mm	10.5 mm
FCPM832-6M	6 mm	19 mm	-	27.5 mm	32.5 mm	7.0 mm	51.0 mm	7.5 mm	13.5 mm	16.5 mm
FCPM832-8M	8 mm	24 mm	11 mm	28.5 mm	34.5 mm	7.0 mm	60.5 mm	9.0 mm	13.5 mm	18.5 mm
FCPM832-10M	10 mm	30 mm	11 mm	29.5 mm	38.5 mm	7.0 mm	76.0 mm	11.5 mm	13.5 mm	24.5 mm
FCPM832-12M	12 mm	32 mm	14 mm	32.0 mm	42.0 mm	8.0 mm	86.0 mm	12.5 mm	15.5 mm	27.5 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
