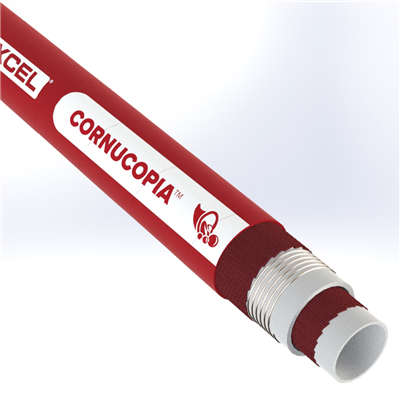

FDA-2.0-100C by Texcel | CORNUCOPIA Series | All-Purpose Sanitary Hose | 2" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Red

$31.99 - $3,198.72

$31.99

$22.85

$22.85 - $2,284.80

$22.85

Texcel
CORNUCOPIA Series | All-Purpose Sanitary Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: FDA-2.0-100C Texcel \| 100 \|
Series:	CORNUCOPIA Series
Hose Color(s):	Red
Internal Diameter:	2in
Outer Diameter:	2.50in
Tubing Construction:	EPDM
Cover Construction:	EPDM

Technical Data:
Description:	CORNOCUPIA™ hose is a multipurpose sanitary hose. CORNUCOPIA™ is formulated for use with fatty foods, wine, beer, potable water, and other related foodstuffs. The white, smooth EPDM tube ensures food quality by being odorless and does not alter taste. The UHMWPE outer cover not only dramatically increases the abrasion resistance of the hose but is Antimicrobial and offers increased dragability. The high working temperature allows for the sterilization of the hose with steam at 230°F for 30 minutes. Meets FDA title 21 part. 177.2600(f) for fatty foods, BfR, ADI Free, D.M. 21/03/73, EC 1935 / 2004.	Tube:	White, EPDM
Cover:	Red, EPDM with a clear UHMWPE wrap	Reinforcement:	High strength synthetic plies with steel helix
Safety Factor:	3:1	Temperature:	-40°F to +284°F
Branding:	TEXCEL® CORNUCOPIA™ ALL PURPOSE SANITARY HOSE 150 PSI (10 BAR) W.P. UHMW COVER TEMP. -40F TO 284F (-40C TO 140C) FDA BfR D.M.21/03/73 ADI FREE STERILIZATION AT 230F FOR 30 MINS	Safety Note:	It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features:	FDA and USDA compliant UHMWPE abrasion-resistant, Antimicrobial cover

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./Ft.
FDA-1.0-100C	1"	1-24/64"	150 psi	29	3.5"	0.54 lbs
FDA-1.5-100C	1-1/2"	1-62/64"	150 psi	29	5"	0.93 lbs
FDA-2.0-100C	2"	2-32/64"	150 psi	29	7.5"	1.28 lbs
FDA-3.0-100C	3"	3-32/64"	150 psi	29	11"	2.02 lbs
FDA-4.0-100	4"	4-36/64"	150 psi	29	13"	3.09 lbs
