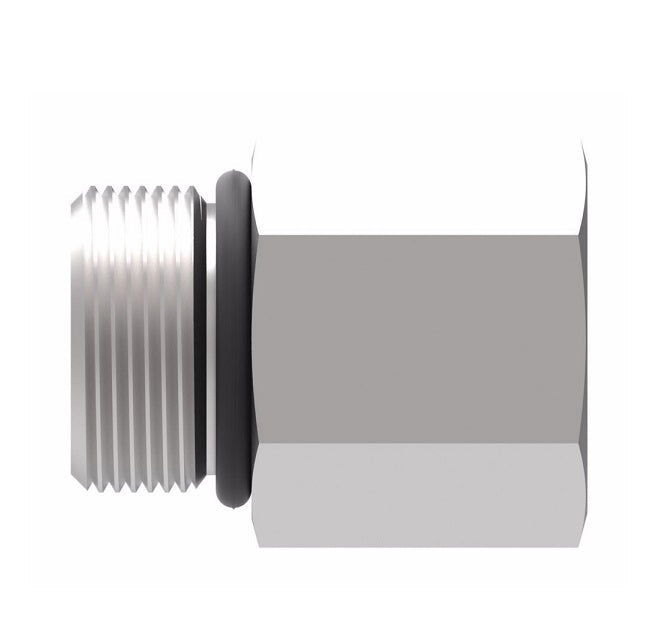

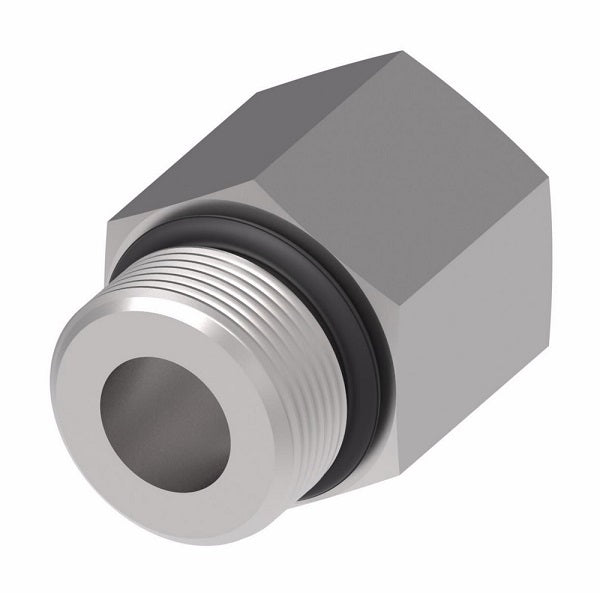

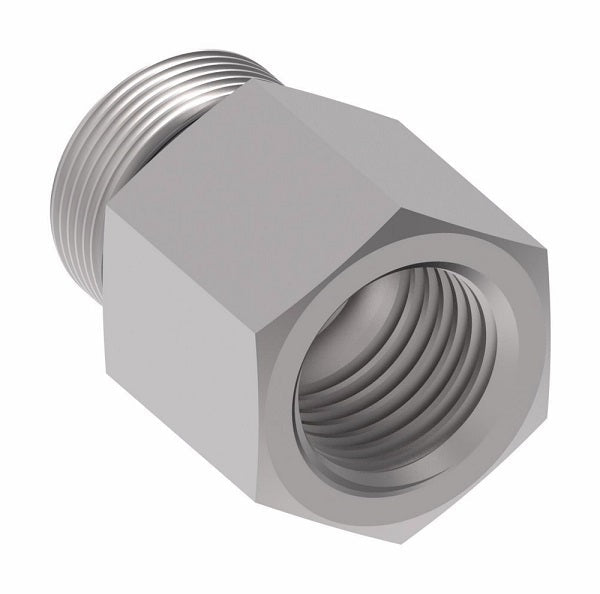

FF1010-0408S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Reducer Adapter | -04 Male SAE O-Ring Boss x -08 Female SAE O-Ring Boss | Steel
FF1010-0408S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Reducer Adapter | -04 Male SAE O-Ring Boss x -08 Female SAE O-Ring Boss | Steel
FF1010-0408S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Reducer Adapter | -04 Male SAE O-Ring Boss x -08 Female SAE O-Ring Boss | Steel
FF1010-0408S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Reducer Adapter | -04 Male SAE O-Ring Boss x -08 Female SAE O-Ring Boss | Steel

FF1010-0408S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Reducer Adapter | -04 Male SAE O-Ring Boss x -08 Female SAE O-Ring Boss | Steel

$20.86 - $20.86
$20.86
$20.86 - $20.86
$20.86

Aeroquip® by Danfoss
SAE O-Ring Boss Reducer Adapter
Male SAE O-Ring Boss x Female SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1010-0408S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male O-Ring Boss, 1/2in Female O-Ring Boss
Material(s): Steel
Construction:
  • Material: Steel
  • Buna-N O-Rings are standard.
Steel
with O-Ring
Part Number 		Steel
without O-Ring
Part Number 		Thread T1 Thread T2 A
FF1010-0304S - 3/8-24 7/16-20 0.96"
FF1010-0406S FF1009-0406S 7/16-20 9/16-18 1.07"
FF1010-0408S FF1009-0408S 7/16-20 3/4-16 1.26"
FF1010-0604S FF1009-0604S 9/16-18 7/16-20 0.96"
FF1010-0806S FF1009-0806S 3/4-16 9/16-18 1.06"
FF1010-1006S - 7/8-14 9/16-18 0.81"
FF1010-1008S FF1009-1008S 7/8-14 3/4-16 1.25"
FF1010-1206S FF1009-1206S 1-1/16-12 9/16-18 1.00"
FF1010-1208S FF1009-1208S 1-1/16-12 3/4-16 1.00"
FF1010-1210S FF1009-1210S 1-1/16-12 7/8-14 1.44"
FF1010-1216S - 1-1/16-12 1-5/16-12 1.79"
FF1010-1412S - 1-3/16-12 1-1/16-12 1.72"
- FF1009-1606S 1-5/16-12 9/16-18 1.00"
FF1010-1608S FF1009-1608S 1-5/16-12 3/4-16 1.00"
FF1010-1610S FF1009-1610S 1-5/16-12 7/8-14 1.44"
FF1010-1612S FF1009-1612S 1-5/16-12 1-1/16-12 1.59"
FF1010-2012S - 1-5/8-12 1-1/16-12 1.00"
FF1010-2016S FF1009-2016S 1-5/8-12 1-5/16-12 1.00"
FF1010-2416S - 1-7/8-12 1-5/16-12 1.00"
FF1010-2420S - 1-7/8-12 1-5/8-12 1.56"
