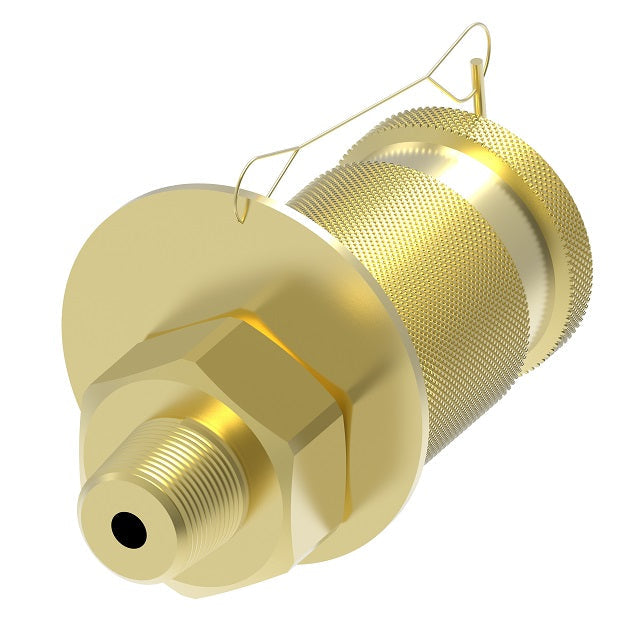

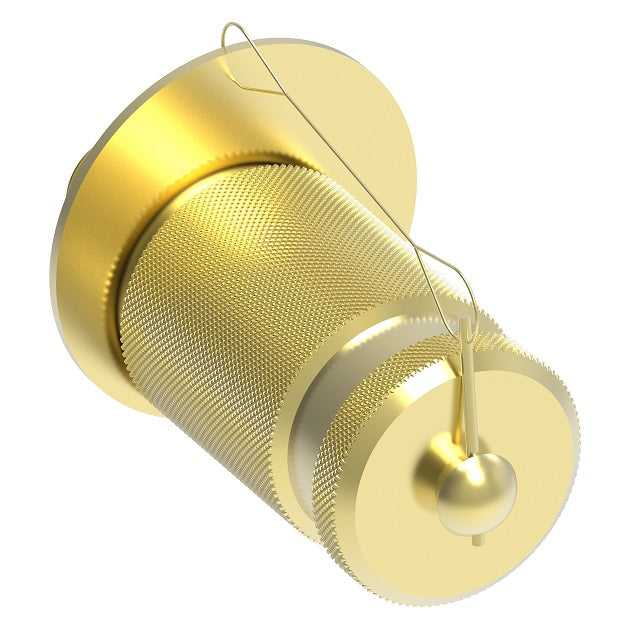

FF14784 Hansen® by Danfoss | Standard Test Coupling | 1/4" Male NPT | FKM Seal | Nickel Plated Steel
FF14784 Hansen® by Danfoss | Standard Test Coupling | 1/4" Male NPT | FKM Seal | Nickel Plated Steel
FF14784 Hansen® by Danfoss | Standard Test Coupling | 1/4" Male NPT | FKM Seal | Nickel Plated Steel

FF14784 Hansen® by Danfoss | Standard Test Coupling | 1/4" Male NPT | FKM Seal | Nickel Plated Steel

$129.93 - $129.93
$129.93
$129.93 - $129.93
$129.93

Hansen® by Danfoss
Standard Test Coupling
Specifications for Variant SKU: FF14784 Danfoss
Brand: Hansen
Shape (Orientation): Straight
Material(s): Zinc/Nickel-Plated Steel
Seal Material(s): Viton/FKM
Applications & Markets:
  • Hydraulics and mineral based fluids
  • Agricultural equipment
  • Construction equipment
  • On-Highway vehicles
  • Industrial equipment
Couplings/Adapters:
  • Standard body material: Zinc Nickel Plated Steel.
  • Standard seal material: FKM.
  • 345 bar (5,000 psi) connect under pressure.
  • 630 bar (9,000 psi) working pressure.
Part Number Thread Dimensions Bag Quantity
A B Hex 1
FF14783 1/8" NPT 1.77"
(45.0mm)		 0.79"
(20.0mm)		 0.67"
(17.0mm)		 4
FF14784 1/4" NPT 1.97"
(50.0mm)		 0.79"
(20.0mm)		 0.67"
(17.0mm)		 4
FF14787 7/16-20 UNF 1.85"
(47.0mm)		 0.79"
(20.0mm)		 0.67"
(17.0mm)		 4
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
