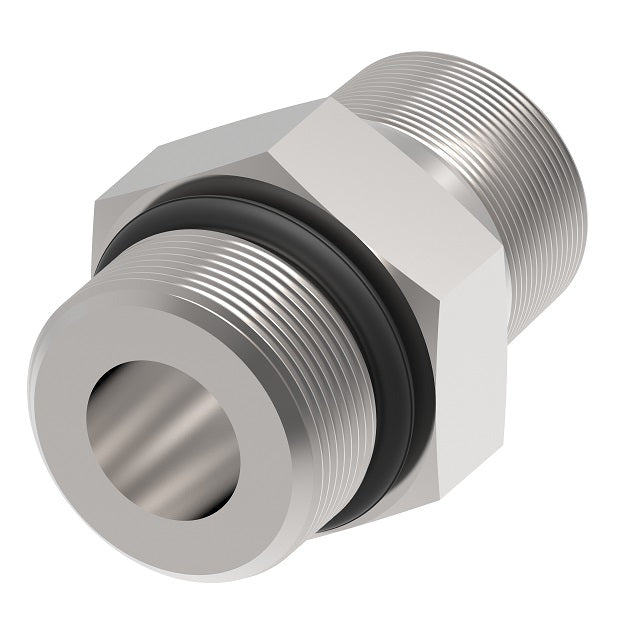

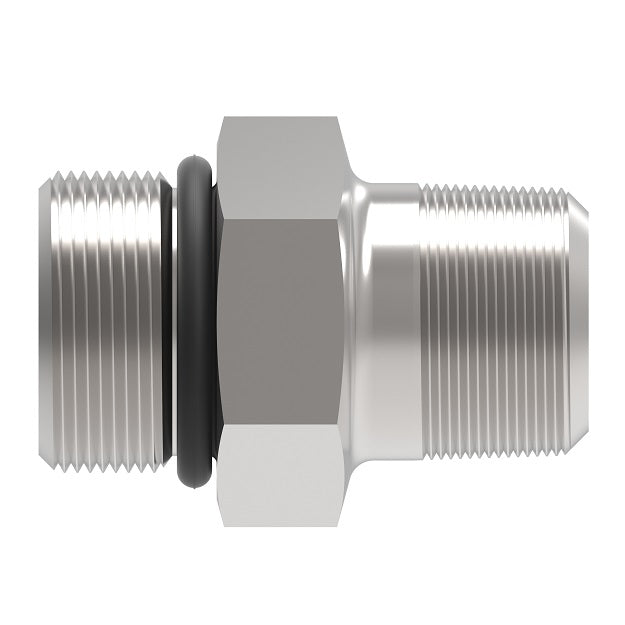

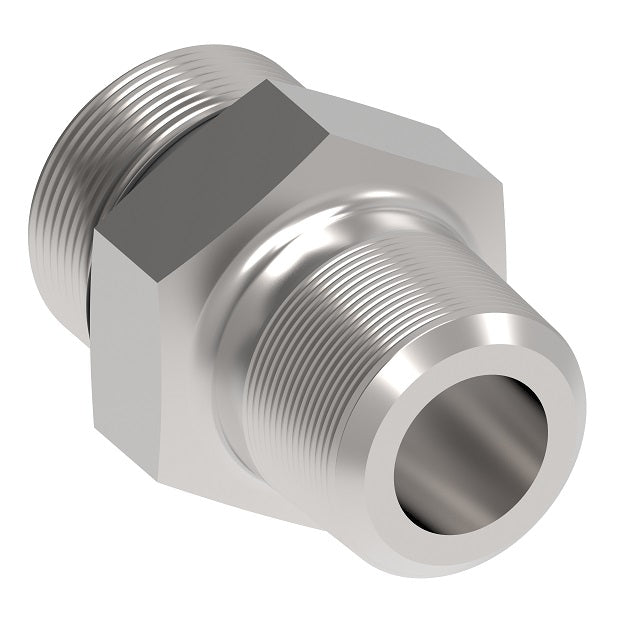

FF1796-0402S Aeroquip by Danfoss | ORB/NPTF External Pipe Adapter | 1/4" Male O-Ring Boss x 1/8" Male NPTF | Carbon Steel

FF1796-0402S Aeroquip by Danfoss | ORB/NPTF External Pipe Adapter | 1/4" Male O-Ring Boss x 1/8" Male NPTF | Carbon Steel

Name: FF1796-0402S Aeroquip by Danfoss | ORB/NPTF External Pipe Adapter | 1/4" Male O-Ring Boss x 1/8" Male NPTF | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF1796-0402S Danfoss
Price: 24.22 USD
Availability: InStock

$24.22 - $24.22

$24.22

$24.22 - $24.22

$24.22

Aeroquip® by Danfoss
ORB/NPTF External Pipe Adapter
Male O-Ring Boss x Male NPTF
Straight

(Formerly Weatherhead series C3249x)

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF1796-0402S Danfoss
Brand:	Aeroquip
Ends Configuration:	1/4in Male O-Ring Boss, 1/8in Male NPTF
Material(s):	Carbon Steel


Steel Part Number	Port Size	Male Pipe Thread	Straight Thread B	Hex C	D	L
FF1796-0402S	1/4"	1/8"	7/16-20	9/16"	0.172"	1.05"
FF1796-0604S	3/8"	1/4"	9/16-18	11/16"	0.281"	1.30"
FF1796-0806S	1/2"	3/8"	3/4-16	7/8"	0.391"	1.36"
FF1796-0808S	1/2"	1/2"	3/4-16	7/8"	0.391"	1.55"
FF1796-1008S	5/8"	1/2"	7/8-14	1"	0.484"	1.69"
FF1796-1212S	3/4"	3/4"	1-1/16-12	1-1/4"	0.609"	1.73"
FF1796-1616S	1"	1"	1-5/16-12	1-1/2"	0.844"	2.06"
FF1796-2020S	1-1/4"	1-1/4"	1-5/8-12	1-7/8"	1.078"	2.17"
FF1796-2424S	1-1/2"	1-1/2"	1-7/8-12	2-1/8"	1.312"	2.26"
FF1796-3232S	2"	2"	2 1/2-12	2 3/4"	1.781"	2.47"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
