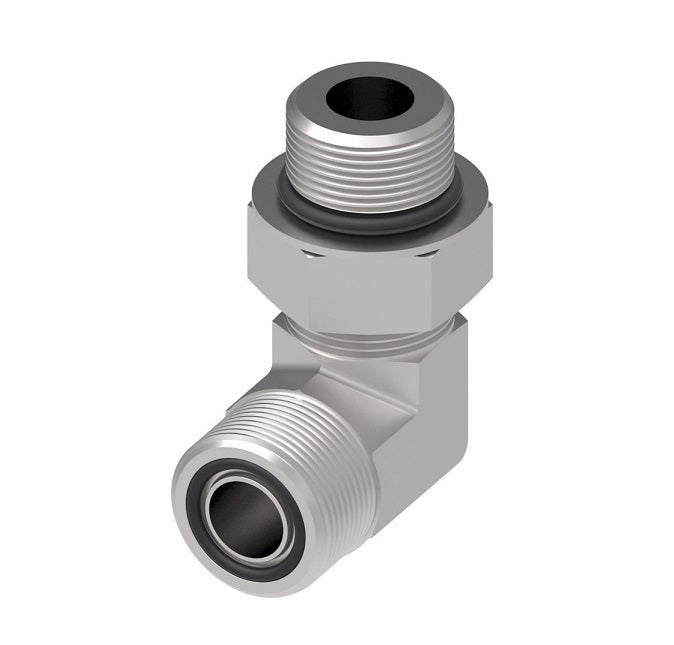

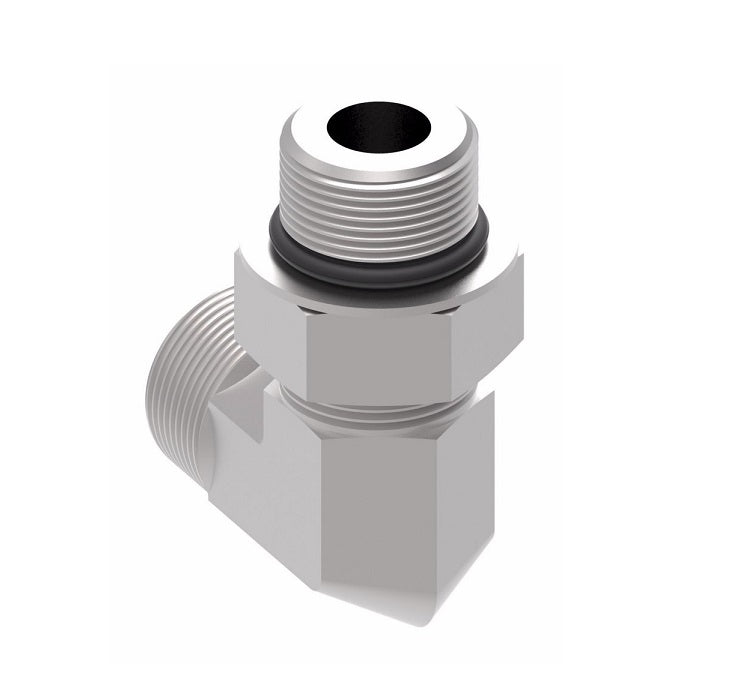

FF1868T1616-213 Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) 90° Elbow Adapter | -16 Male O-Ring Face Seal x -16 Male SAE O-Ring Boss | Viton O-Ring | Steel
FF1868T1616-213 Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) 90° Elbow Adapter | -16 Male O-Ring Face Seal x -16 Male SAE O-Ring Boss | Viton O-Ring | Steel
FF1868T1616-213 Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) 90° Elbow Adapter | -16 Male O-Ring Face Seal x -16 Male SAE O-Ring Boss | Viton O-Ring | Steel
FF1868T1616-213 Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) 90° Elbow Adapter | -16 Male O-Ring Face Seal x -16 Male SAE O-Ring Boss | Viton O-Ring | Steel

FF1868T1616-213 Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) 90° Elbow Adapter | -16 Male O-Ring Face Seal x -16 Male SAE O-Ring Boss | Viton O-Ring | Steel

$41.28 - $41.28
$41.28
$41.28 - $41.28
$41.28

Aeroquip® by Danfoss
ORS/SAE O-Ring Boss (adj.) Adapter
Male O-Ring Face Seal x Male SAE O-Ring Boss
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1868T1616-213 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1in Male O-Ring Face Seal, 1in Male O-Ring Boss
Material(s): Steel
Specifications:
  • Ref. SAE 520120
Construction:
  • Buna-N O-Rings are standard.
Steel with
Buna-N O-Ring
Part Number 		Steel with
Viton O-Ring
Part Number 		Tube OD Thread T1 Thread T2 A B C
FF1868T0403S - 0.25" 9/16-18 3/8-24 0.85" 1.19" 0.36"
FF1868T0404S - 0.25" 9/16-18 7/16-20 0.85" 1.29" 0.41"
FF1868T0405S - 0.25" 9/16-18 1/2-20 0.88" 1.36" 0.41"
FF1868T0406S - 0.25" 9/16-18 9/16-18 0.92" 1.45" 0.46"
FF1868T0408S - 0.25" 9/16-18 3/4-16 0.97" 1.60" 0.52"
FF1868T0604S - 0.38" 11/16-16 7/16-20 0.98" 1.37" 0.41"
FF1868T0605S - 0.38" 11/16-16 1/2-20 0.98" 1.37" 0.41"
FF1868T0606S - 0.38" 11/16-16 9/16-18 0.98" 1.45" 0.46"
FF1868T0608S - 0.38" 11/16-16 3/4-16 1.04" 1.60" 0.52"
FF1868T0610S - 0.38" 11/16-16 7/8-14 1.15" 1.97" 0.62"
FF1852T0612S - 0.38" 11/16-16 1-1/16-12 1.25" 2.17" 0.71"
FF1868T0806S - 0.50" 13/16-16 9/16-18 1.11" 1.44" 0.46"
FF1868T0808S - 0.50" 13/16-16 3/4-16 1.10" 1.60" 0.52"
FF1868T0810S - 0.50" 13/16-16 7/8-14 1.21" 1.97" 0.62"
FF1868T0812S - 0.50" 13/16-16 1-1/16-12 1.32" 2.17" 0.71"
FF1868T1008S - 0.63" 1-14 3/4-16 1.31" 1.80" 0.52"
FF1868T1010S FF1868T1010-213 0.63" 1-14 7/8-14 1.31" 1.97" 0.62"
FF1868T1012S - 0.63" 1-14 1-1/16-12 1.41" 2.17" 0.71"
FF1868T1208S - 0.75" 1-3/16-12 3/4-16 1.47" 1.84" 0.52"
FF1868T1212S FF1868T1212-213 0.75" 1-3/16-12 1-1/16-12 1.47" 2.17" 0.71"
FF1868T1216S - 0.75" 1-3/16-12 1-5/16-12 1.62" 2.35" 0.71"
FF1868T1612S - 1.00" 1-7/16-12 1-1/16-12 1.64" 2.32" 0.71"
FF1868T1616S FF1868T1616-213 1.00" 1-7/16-12 1-5/16-12 1.64" 2.35" 0.71"
FF1868T1620S FF1868T1620-213 1.00" 1-7/16-12 1-5/8-12 1.76" 2.45" 0.71"
FF1868T2016S - 1.25" 1-11/16-12 1-5/16-12 1.76" 2.42" 0.71"
FF1868T2020S - 1.25" 1-11/16-12 1-5/8-12 1.76" 2.45" 0.71"
FF1868T2420S - 1.50" 2-12 1-5/8-12 1.92" 2.59" 0.71"
FF1868T2424S - 1.50" 2-12 1-7/8-12 1.92" 2.59" 0.71"
