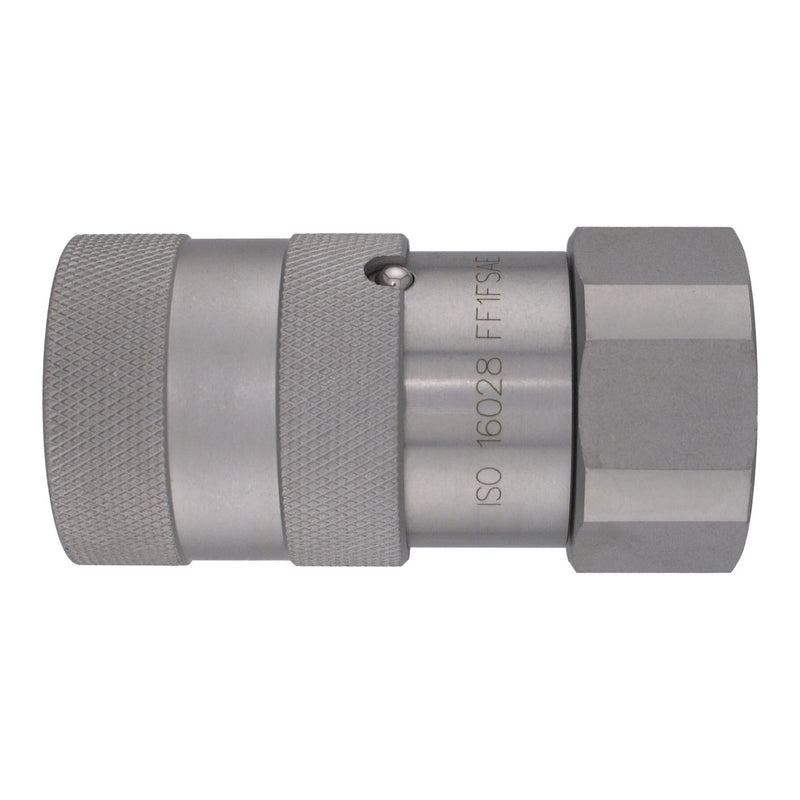

FF1FSAE by Midland | Hydraulic Quick Disconnect | FF Series | Flush Face ISO 16028 Socket | 1" Body Size x 1" Female SAE O-Ring Boss | Steel

FF1FSAE by Midland | Hydraulic Quick Disconnect | FF Series | Flush Face ISO 16028 Socket | 1" Body Size x 1" Female SAE O-Ring Boss | Steel

Save $89.11 Save $89.11
$222.78
$222.78 - $222.78
$222.78
$133.67
$133.67 - $133.67
$133.67

Midland Industries
Hydraulic Quick Disconnects: FF Series - Flush Face ISO 16028 Socket - Steel
Specifications for Variant SKU: FF1FSAE Midland
Series: FF Series
Ends Configuration: 1in ISO-16028 Flush Face QD Interchange, 1in Female O-Ring Boss
Material(s): Steel
Features:
  • Steel construction, zinc nickel plated finish. Hardened Nipples and sleeves and solid barstock construction for maximum resistance to damage from hydraulic and mechanical shock.
  • This Anti-Blowout Nitrile/ PTFE bonded seal is designed to prevent blow out or damage during servere service conditions.
  • Durable ball-locking mechanism assures reliable connection everytime.
  • Temp Range -65° to +250°.
Flush Face Series
Body Size Steel Coupler/ Plug Coupled
Maximum Working Burst
PSI Bar PSI Bar
1/4" 5,000 PSI 345 Bar 18,270 PSI 1,200 Bar
3/8" 4,000 PSI 275 Bar 18,270 PSI 1,200 Bar
1/2" 4,000 PSI 275 Bar 16,500 PSI 1,100 Bar
5/8" 4,000 PSI 275 Bar 14,800 PSI 1,000 Bar
3/4" 4,000 PSI 275 Bar 12,400 PSI 850 Bar
1" 3,000 PSI 200 Bar 12,600 PSI 850 Bar
FF Series | Flush Face ISO 16028 Socket
Part Number Body
Size		 Female
SAE O-Ring Boss		 Thread
FF14FSAE 1/4" 1/4" 7/16-20
FF38FSAE 3/8" 3/8" 9/16-18
FF3812FSAE 3/8" 1/2" 3/4-16
FF12FSAE 1/2" 1/2" 3/4-16
FF1234FSAE 1/2" 3/4" 1-1/16-12
FF1FSAE 1" 1" 1-5/16-12
FF Series | Flush Face ISO 16028 Plug
Part Number Body
Size		 Female
SAE O-Ring Boss		 Thread
FF14MSAE 1/4" 1/4" 7/16-20
FF38MSAE 3/8" 3/8" 9/16-18
FF3812MSAE 3/8" 1/2" 3/4-16
FF12MSAE 1/2" 1/2" 3/4-16
FF1234MSAE 1/2" 3/4" 1-1/16-12
FF1MSAE 1" 1" 1-5/16-12

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
