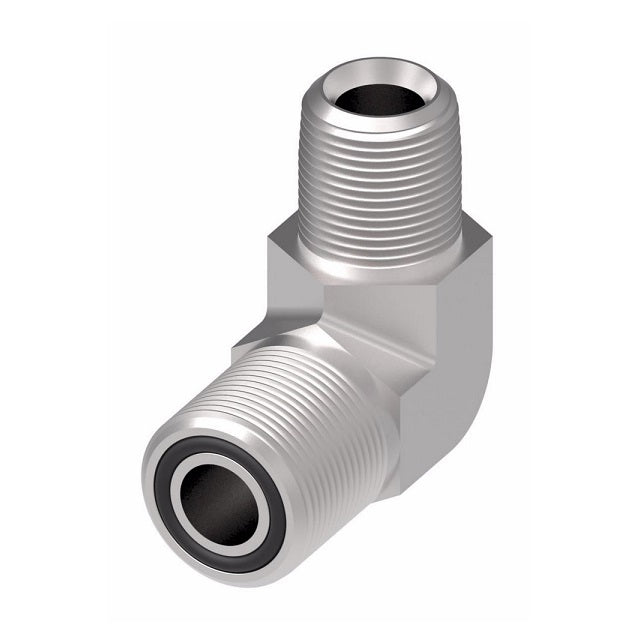

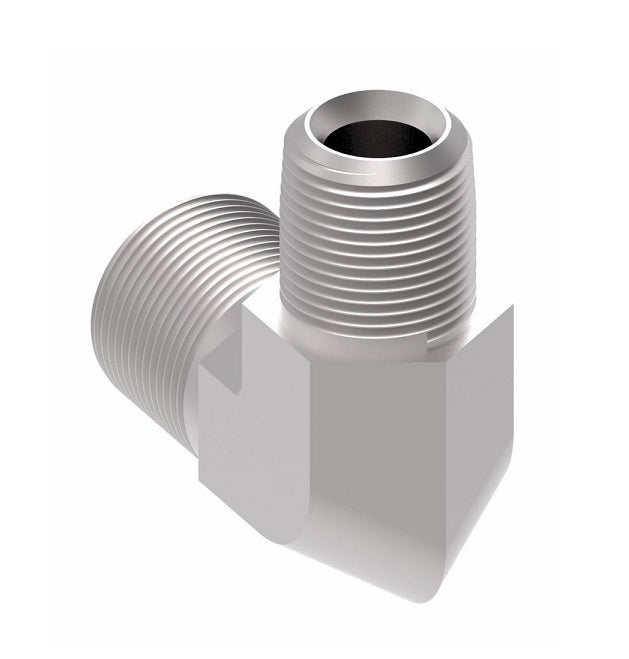

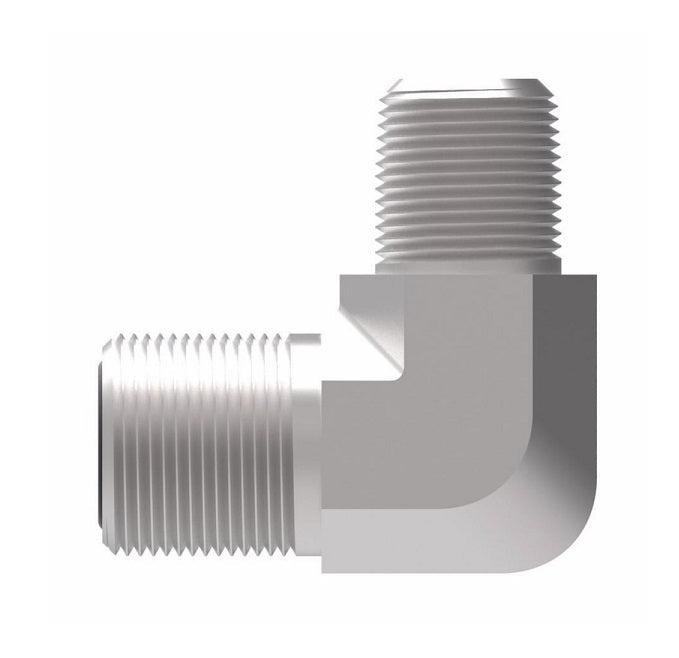

FF2032T1008S Aeroquip by Danfoss | ORS/Male NPTF 90° Elbow Adapter | -10 Male O-Ring Face Seal x -08 Male NPTF | Steel
FF2032T1008S Aeroquip by Danfoss | ORS/Male NPTF 90° Elbow Adapter | -10 Male O-Ring Face Seal x -08 Male NPTF | Steel
FF2032T1008S Aeroquip by Danfoss | ORS/Male NPTF 90° Elbow Adapter | -10 Male O-Ring Face Seal x -08 Male NPTF | Steel
FF2032T1008S Aeroquip by Danfoss | ORS/Male NPTF 90° Elbow Adapter | -10 Male O-Ring Face Seal x -08 Male NPTF | Steel

FF2032T1008S Aeroquip by Danfoss | ORS/Male NPTF 90° Elbow Adapter | -10 Male O-Ring Face Seal x -08 Male NPTF | Steel

$38.30 - $38.30
$38.30
$38.30 - $38.30
$38.30

Aeroquip® by Danfoss
ORS/Male NPTF Adapter
Male O-Ring Face Seal x Male NPTF
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2032T1008S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Male O-Ring Face Seal, 1/2in Male NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 520202
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 A B
FF2032T0402S 0.25" 9/16-18 1/8-27 0.85" 0.84"
FF2032T0404S 0.25" 9/16-18 1/4-18 0.92" 1.15"
FF2032T0406S 0.25" 9/16-18 3/8-18 0.96" 1.25"
FF2032T0602S 0.38" 11/16-16 1/8-27 0.98" 0.96"
FF2032T0604S 0.38" 11/16-16 1/4-18 0.98" 1.15"
FF2032T0606S 0.38" 11/16-16 3/8-18 1.04" 1.25"
FF2032T0608S 0.38" 11/16-16 1/2-14 1.15" 1.53"
FF2032T0802S 0.50" 13/16-16 1/8-27 1.10" 0.87"
FF2032T0806S 0.50" 13/16-16 3/8-18 1.10" 1.25"
FF2032T0808S 0.50" 13/16-16 1/2-14 1.21" 1.53"
FF2032T0812S 0.50" 13/16-16 3/4-14 1.32" 1.65"
FF2032T1008S 0.63" 1-14 1/2-14 1.31" 1.53"
FF2032T1012S 0.63" 1-14 3/4-14 1.41" 1.65"
FF2032T1208S 0.75" 1-3/16-12 1/2-14 1.47" 1.65"
FF2032T1212S 0.75" 1-3/16-12 3/4-14 1.47" 1.65"
FF2032T1216S 0.75" 1-3/16-12 1-11-1/2 1.62" 2.03"
FF2093T1612S 1.00" 1-7/16-12 3/4-14 1.64" 1.84"
FF2032T1616S 1.00" 1-7/16-12 1-11-1/2 1.64" 2.03"
FF2032T2016S 1.25" 1-11/16-12 1-11-1/2 1.76" 2.38"
FF2032T2020S 1.25" 1-11/16-12 1-1/4-11-1/2 1.76" 2.41"
FF2032T2424S 1.50" 2-12 1-1/2-11-1/2 1.92" 2.70"
