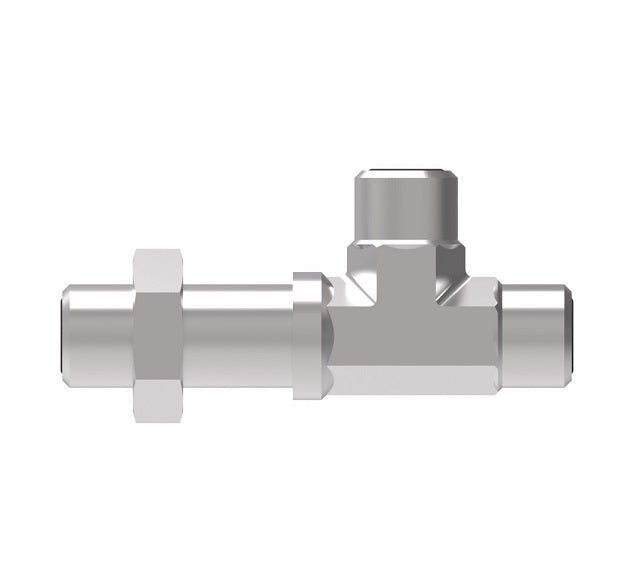

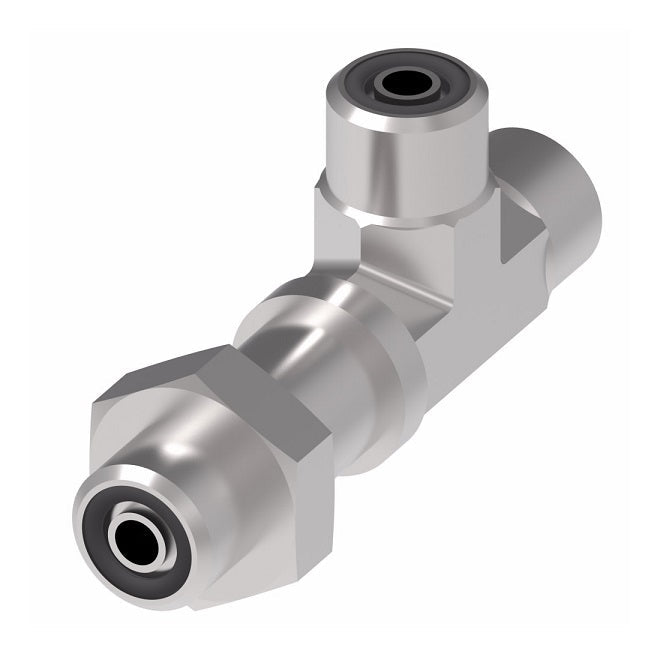

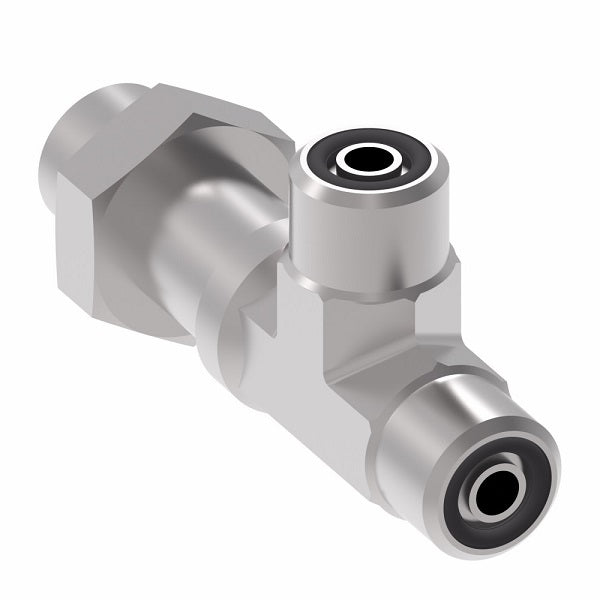

FF2174T1212S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Male Bulkhead Run Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal | Steel
FF2174T1212S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Male Bulkhead Run Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal | Steel
FF2174T1212S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Male Bulkhead Run Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal | Steel
FF2174T1212S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Male Bulkhead Run Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal | Steel

FF2174T1212S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Male Bulkhead Run Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal | Steel

$63.70 - $63.70
$63.70
$63.70 - $63.70
$63.70

Aeroquip® by Danfoss
ORS Male/ORS Male/ORS Male Bulkhead Run Tee Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal x Male O-Ring Face Seal

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2174T1212S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/4in Male O-Ring Face Seal, 3/4in Male O-Ring Face Seal, 3/4in Male O-Ring Face Seal
Material(s): Steel
Specifications:
  • Ref. SAE 520958
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 Thread T3 A B C
FF2174T0404S 0.25" 9/16-18 9/16-18 9/16-18 1.85" 0.89" 0.89"
FF2174T0606S 0.38" 11/16-16 11/16-16 11/16-16 2.05" 1.02" 1.01"
FF2174T0808S 0.50" 13/16-16 13/16-16 13/16-16 2.18" 1.14" 1.13"
FF2174T1212S 0.75" 1-3/16-12 1-3/16-12 1-3/16-12 2.16" 1.60" 1.60"
FF2174T1616S 1.00" 1-7/16-12 1-7/16-12 1-7/16-12 2.80" 1.67" 1.67"
FF2174T2020S - - - - - - -
