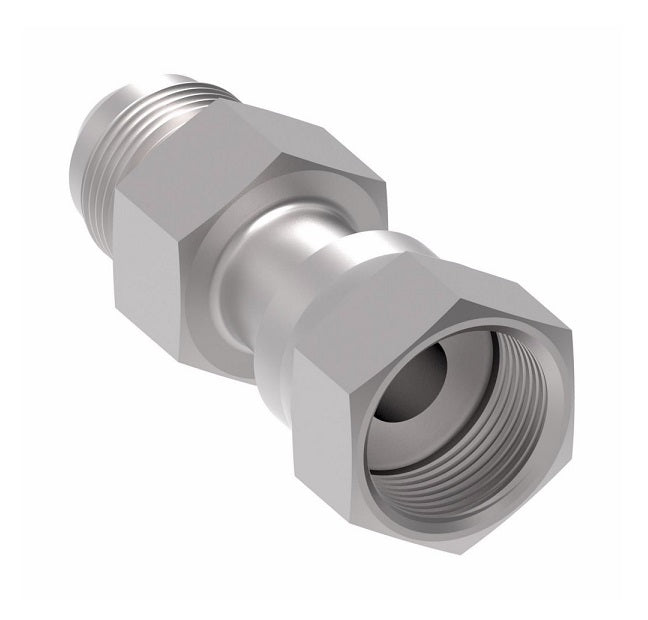

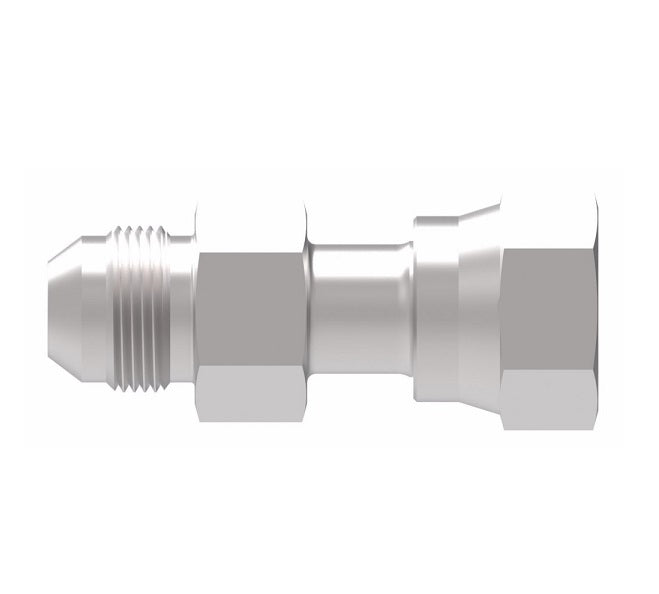

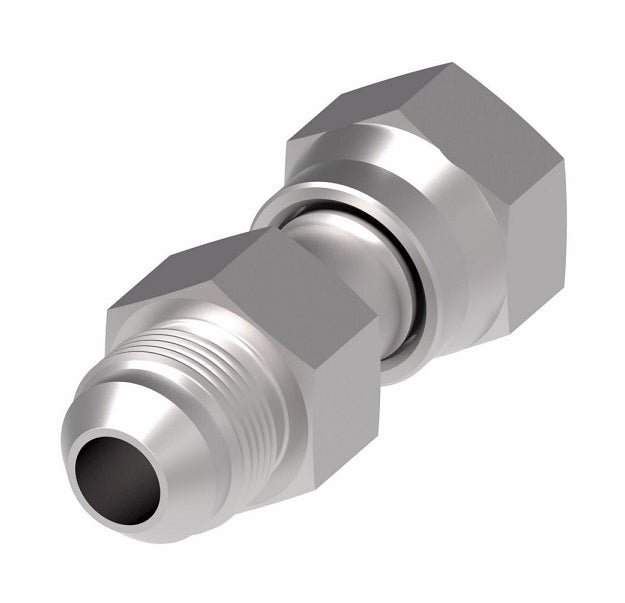

FF2209T1616S Aeroquip by Danfoss | ORS Female Swivel / Male 37° JIC Flare Adapter | -16 Female O-Ring Face Seal Swivel x -16 Male 37° JIC Flare | Steel

FF2209T1616S Aeroquip by Danfoss | ORS Female Swivel / Male 37° JIC Flare Adapter | -16 Female O-Ring Face Seal Swivel x -16 Male 37° JIC Flare | Steel

Name: FF2209T1616S Aeroquip by Danfoss | ORS Female Swivel / Male 37° JIC Flare Adapter | -16 Female O-Ring Face Seal Swivel x -16 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: FF2209T1616S Danfoss
Price: 43.47 USD
Availability: InStock

$43.47 - $43.47

$43.47

$43.47 - $43.47

$43.47

Aeroquip® by Danfoss
ORS Female Swivel / Male 37° JIC Flare Adapter
Female O-Ring Face Seal Swivel x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF2209T1616S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1in Female O-Ring Face Seal, 1in Male JIC
Material(s):	Steel

Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	A	B
FF2209T0404S	-	-	-	-	-
FF2209T0412S	0.25"	9/16-18	1-1/16-12	1.99"	0.86"
FF2209T0606S	-	-	-	-	-
FF2209T0612S	0.38"	11/16-16	1-1/16-12	2.07"	0.86"
FF2209T0808S	0.50"	13/16-16	3/4-16	2.03"	0.66"
FF2209T0812S	0.50"	13/16-16	1-1/16-12	2.25"	0.86"
FF2209T1010S	-	-	-	-	-
FF2209T1212S	0.75"	1-3/16-12	1-1/16-12	2.44"	0.86"
FF2209T1616S	1.00"	1-7/16-12	1-5/16-12	2.82"	0.91"
FF2209T2016S	1.25"	1-11/16-12	1-5/16-12	2.88"	0.91"
FF2209T2020S	-	-	-	-	-
