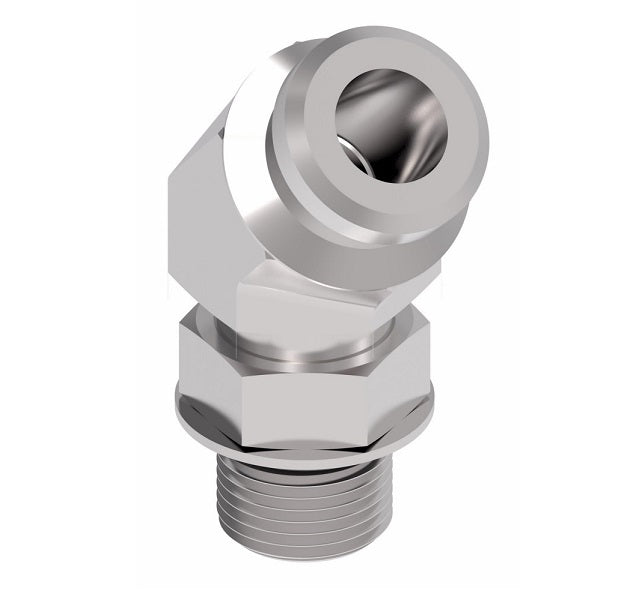

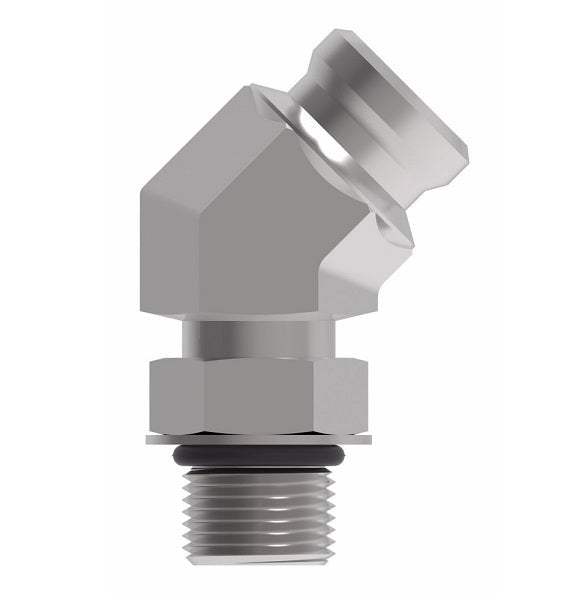

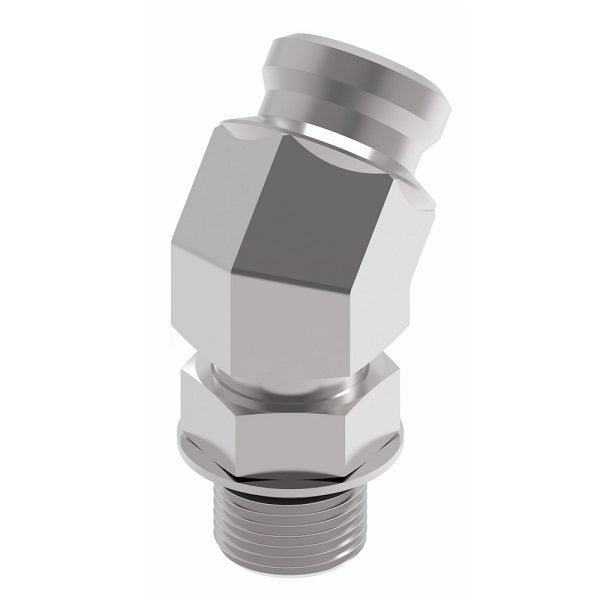

FF3038-0808S Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) 45° Elbow Adapter (FF) | -08 Male SAE O-Ring Boss x -08 Female STC | Steel
FF3038-0808S Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) 45° Elbow Adapter (FF) | -08 Male SAE O-Ring Boss x -08 Female STC | Steel
FF3038-0808S Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) 45° Elbow Adapter (FF) | -08 Male SAE O-Ring Boss x -08 Female STC | Steel
FF3038-0808S Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) 45° Elbow Adapter (FF) | -08 Male SAE O-Ring Boss x -08 Female STC | Steel

FF3038-0808S Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) 45° Elbow Adapter (FF) | -08 Male SAE O-Ring Boss x -08 Female STC | Steel

$33.18 - $33.18
$33.18
$33.18 - $33.18
$33.18

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - Male SAE ORB to Female STC (Snap to Connect) Adapter (FF) - 45° Elbow

STC adapters come standard with nitrile o-rings.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF3038-0808S Danfoss
Ends Configuration: 1/2in Male O-Ring Boss, 1/2in Female STC
Material(s): Steel
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 A B DIA E Hex "T" Thread STC Release Tool
FF3038-0406S 0.73" 1.12" 0.67" 0.17" 0.75" 7/16-20 2A FF90213-06
FF3038-0606S 0.73" 1.18" 0.67" 0.30" 0.75" 9/16-18 2A FF90213-06
FF3038-0808S 0.84" 1.36" 0.80" 0.39" 0.86" 3/4-16 2A FF90213-08
FF3038-1010S 0.91" 1.67" 0.96" 0.48" 1.05" 7/8-14 2A FF90213-10
