Aeroquip® by Danfoss

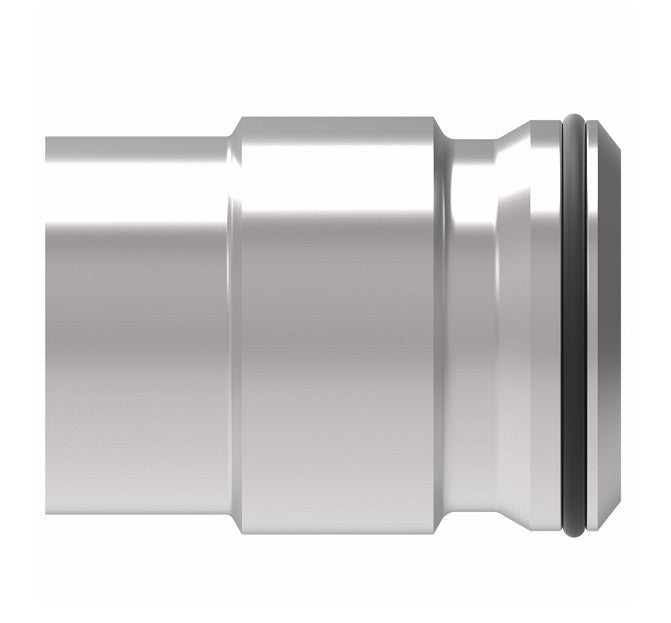

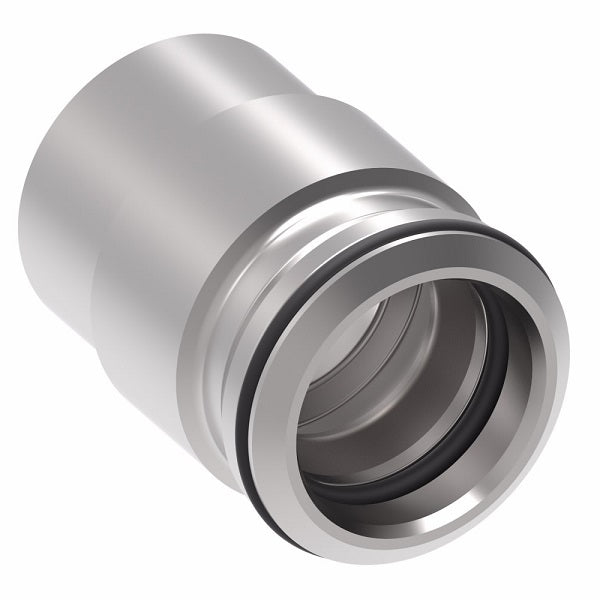

STC (Snap to Connect) Fitting - Braze-On Female Spud for Tube (FF)

O-ring, back-up ring, and latch ring must be purchased seperately and assembled after brazing.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF3059-0606S Danfoss
Ends Configuration: 3/8in Female STC, 3/8in Braze End
Material(s): Steel
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 A B DIA E F G STC Release Tool
FF3059-0606S 0.91" 0.29" 0.67" 0.38" 0.63" 0.71" FF90213-06
FF3059-0808S 1.14" 0.37" 0.80" 0.50" 0.75" 0.83" FF90213-08
FF3059-1010S 1.25" 0.37" 0.96" 0.63" 0.91" 0.98" FF90213-10
FF3059-1212S 1.47" 0.34" 1.23" 0.75" 1.00" 1.26" FF90213-12
