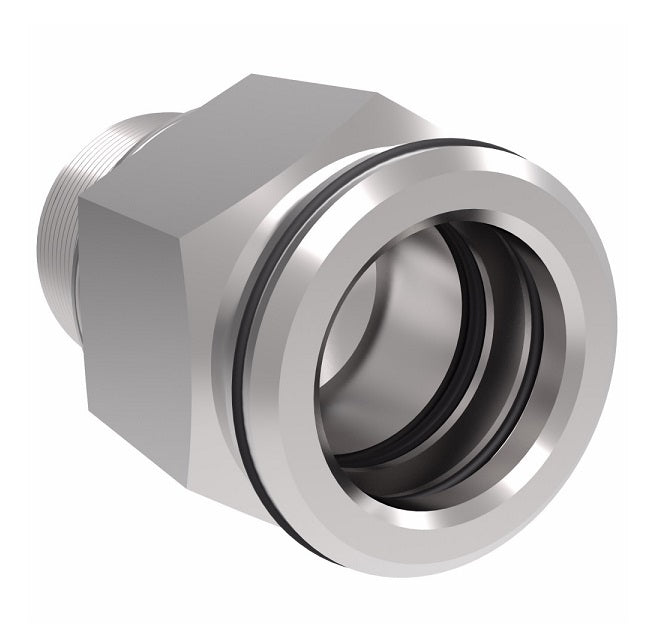

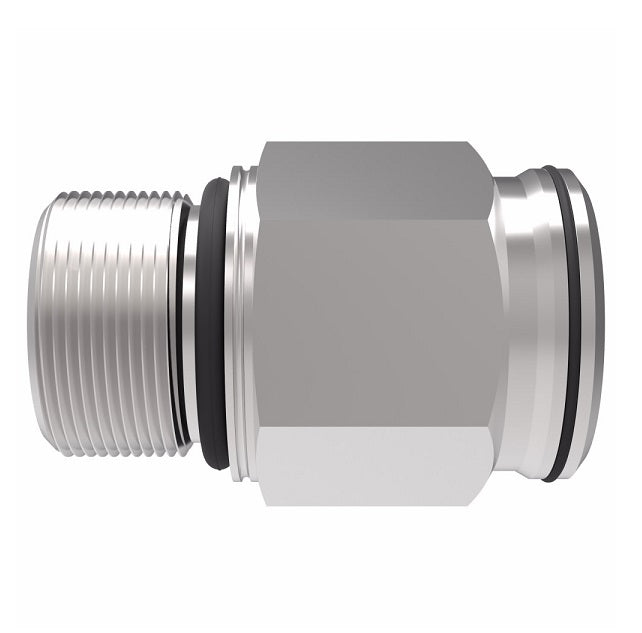

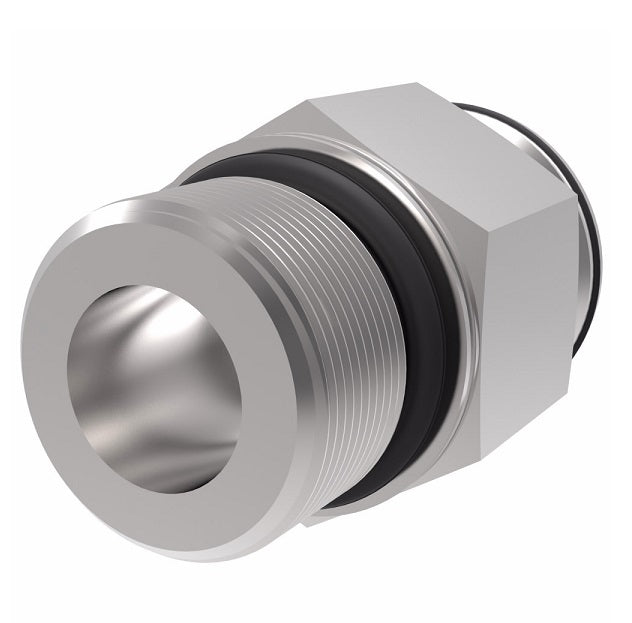

FF3061-1606S Aeroquip by Danfoss | Male ISO 6149 ORB (S-Series) to Female STC (Snap to Connect) Adapter (FF) | M16 Male Metric O-Ring Boss x -06 Female STC | Steel

FF3061-1606S Aeroquip by Danfoss | Male ISO 6149 ORB (S-Series) to Female STC (Snap to Connect) Adapter (FF) | M16 Male Metric O-Ring Boss x -06 Female STC | Steel

$28.30 - $28.30
$28.30
$28.30 - $28.30
$28.30

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - Male ISO 6149 ORB (S-Series) to Female STC (Snap to Connect) Adapter (FF) - Straight

STC adapters come standard with nitrile o-rings.

(Formerly Eaton Aeroquip)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FF3061-1606S Danfoss
Material(s): Steel
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 Steel
HNBR O-Ring
Part Number		 A B DIA E Hex "T"
Thread		 STC
Release Tool
FF3061-1406S - 1.20" 0.43" 0.67" 0.24" 0.75" M14x1.5 6g FF90213-06
FF3061-1606S - 1.26" 0.49" 0.67" 0.28" 0.86" M16x1.5 6g FF90213-06
FF3061-1608S - 1.43" 0.49" 0.80" 0.28" 0.86" M16x1.5 6g FF90213-08
FF3061-1806S - 1.32" 0.55" 0.67" 0.36" 0.94" M18x1.5 6g FF90213-06
FF3061-1808S FF3061-1808-461 1.50" 0.55" 0.80" 0.36" 0.94" M18x1.5 6g FF90213-08
FF3061-1812S - 1.97" 0.55" 1.23" 0.36" 1.26" M18x1.5 6g FF90213-12
FF3061-2210S - 1.59" 0.59" 0.96" 0.48" 1.06" M22x1.5 6g FF90213-10
FF3061-2212S - 2.01" 0.59" 1.23" 0.48" 1.26" M22x1.5 6g FF90213-12
