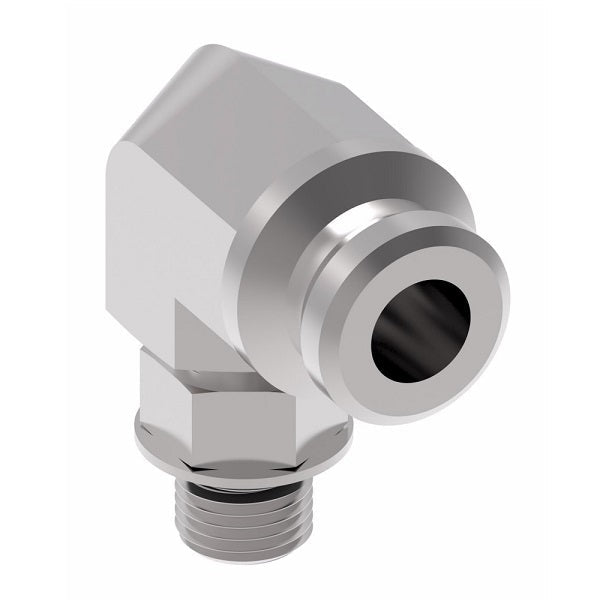

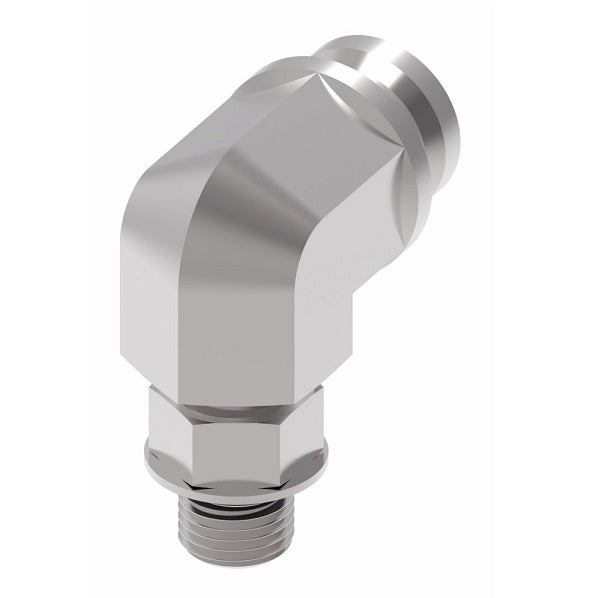

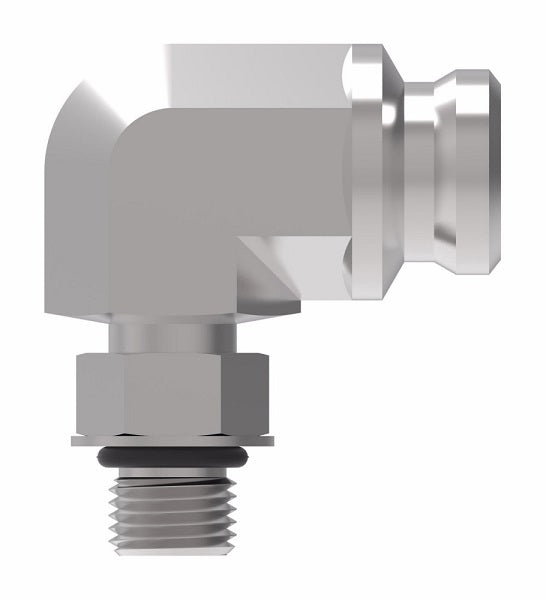

FF3067-1406S Aeroquip by Danfoss | Male ISO 6149 ORB (S-Series) to Female STC (Snap to Connect) 90° Elbow Adapter (FF) | M14 Male Metric O-Ring Boss x -06 Female STC | Steel
FF3067-1406S Aeroquip by Danfoss | Male ISO 6149 ORB (S-Series) to Female STC (Snap to Connect) 90° Elbow Adapter (FF) | M14 Male Metric O-Ring Boss x -06 Female STC | Steel
FF3067-1406S Aeroquip by Danfoss | Male ISO 6149 ORB (S-Series) to Female STC (Snap to Connect) 90° Elbow Adapter (FF) | M14 Male Metric O-Ring Boss x -06 Female STC | Steel
FF3067-1406S Aeroquip by Danfoss | Male ISO 6149 ORB (S-Series) to Female STC (Snap to Connect) 90° Elbow Adapter (FF) | M14 Male Metric O-Ring Boss x -06 Female STC | Steel

FF3067-1406S Aeroquip by Danfoss | Male ISO 6149 ORB (S-Series) to Female STC (Snap to Connect) 90° Elbow Adapter (FF) | M14 Male Metric O-Ring Boss x -06 Female STC | Steel

$54.70 - $54.70
$54.70
$54.70 - $54.70
$54.70

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - Male ISO 6149 ORB (S-Series) to Female STC (Snap to Connect) Adapter (FF) - 90° Elbow

STC adapters come standard with nitrile o-rings.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF3067-1406S Danfoss
Material(s): Steel
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 Steel
HNBR O-Ring
Part Number		 A B DIA E Hex "T"
Thread		 STC
Release Tool
FF3067-1406S - 0.98" 1.40" 0.67" 0.24" 0.75" M14x1.5 6g FF90213-06
FF3067-1606S - 1.09" 1.69" 0.67" 0.28" 0.75" M16x1.5 6g FF90213-06
FF3067-1808S - 1.11" 1.74" 0.80" 0.36" 0.87" M18x1.5 6g FF90213-08
FF3067-2712S - 1.48" 2.18" 1.23" 0.60" 1.26" M27x2 6g FF90213-12
