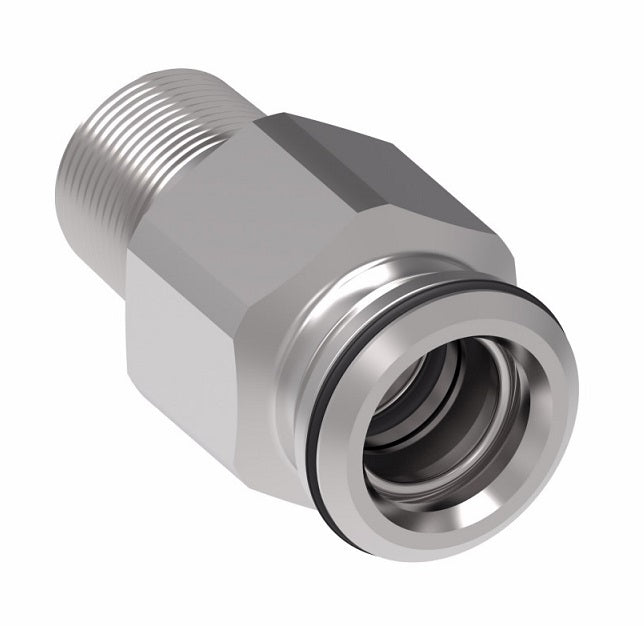

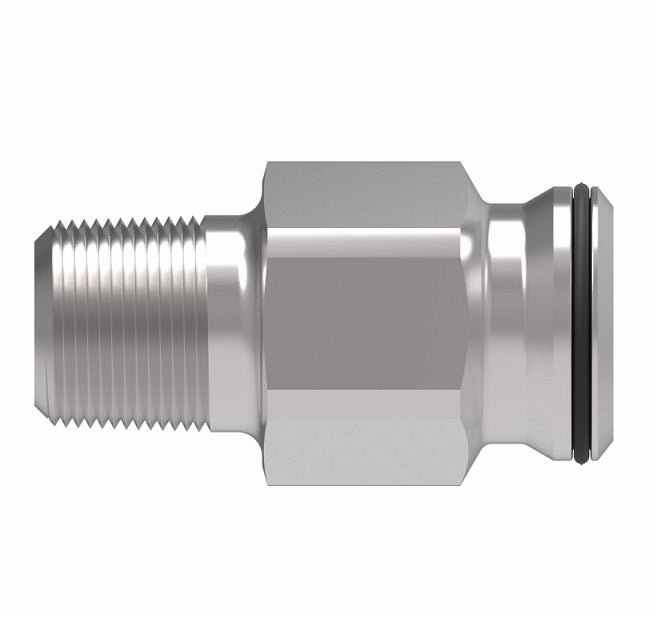

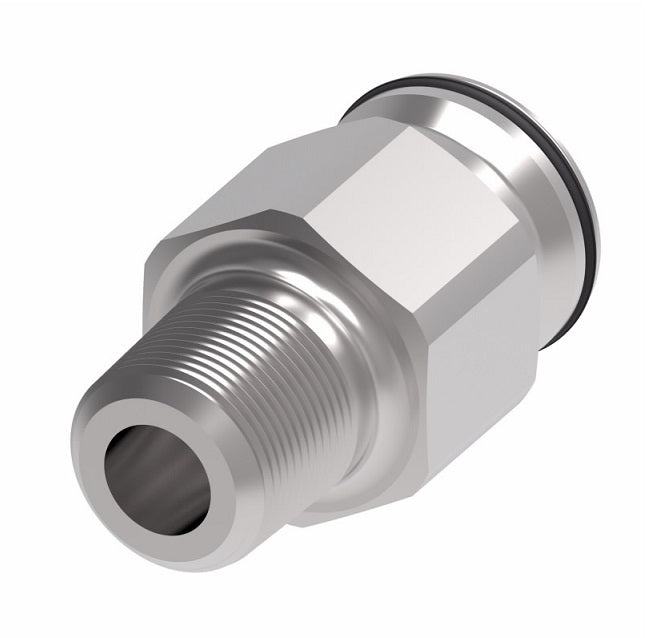

FF3089-0808S Aeroquip by Danfoss | Male NPTF to Female STC (Snap to Connect) Adapter (FF) | -08 Male NPTF x -08 Female STC | Steel
FF3089-0808S Aeroquip by Danfoss | Male NPTF to Female STC (Snap to Connect) Adapter (FF) | -08 Male NPTF x -08 Female STC | Steel
FF3089-0808S Aeroquip by Danfoss | Male NPTF to Female STC (Snap to Connect) Adapter (FF) | -08 Male NPTF x -08 Female STC | Steel
FF3089-0808S Aeroquip by Danfoss | Male NPTF to Female STC (Snap to Connect) Adapter (FF) | -08 Male NPTF x -08 Female STC | Steel

FF3089-0808S Aeroquip by Danfoss | Male NPTF to Female STC (Snap to Connect) Adapter (FF) | -08 Male NPTF x -08 Female STC | Steel

$85.53 - $85.53
$85.53
$85.53 - $85.53
$85.53

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - Male NPTF to Female STC (Snap to Connect) Adapter (FF) - Straight

STC adapters come standard with nitrile o-rings.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF3089-0808S Danfoss
Ends Configuration: 1/2in Male NPTF, 1/2in Female STC
Material(s): Steel
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 A B DIA E Hex "T"
Thread		 STC
Release Tool
FF3089-0406S 1.45" 0.57" 0.67" 0.28" 0.75" 1/4-18 FF90213-06
FF3089-0606S 1.45" 0.57" 0.67" 0.41" 0.75" 3/8-18 FF90213-06
FF3089-0608S 1.53" 0.57" 0.80" 0.41" 0.83" 3/8-18 FF90213-08
FF3089-0806S 1.64" 0.76" 0.67" 0.38" 0.88" 1/2-14 FF90213-06
FF3089-0808S 1.49" 0.76" 0.80" 0.48" 0.94" 1/2-14 FF90213-08
FF3089-0810S 1.73" 0.76" 0.96" 0.53" 1.00" 1/2-14 FF90213-10
FF3089-1212S 1.76" 0.76" 1.23" 0.72" 1.26" 3/4-14 FF90213-12
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
