FF3318T1010-458 Aeroquip by Danfoss | Male ORFS to Male STC (Snap to Connect) Repair Adapter (FF) | -10 Male O-Ring Face Seal x -10 Male STC | Steel

FF3318T1010-458 Aeroquip by Danfoss | Male ORFS to Male STC (Snap to Connect) Repair Adapter (FF) | -10 Male O-Ring Face Seal x -10 Male STC | Steel

$27.10 - $27.10
$27.10
$27.10 - $27.10
$27.10

Aeroquip® by Danfoss

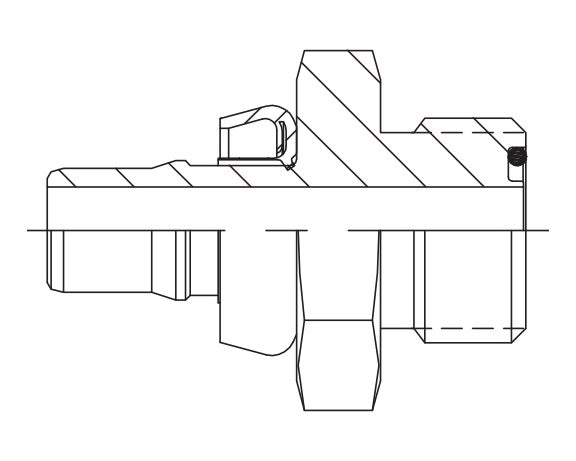

STC (Snap to Connect) Fitting - Male ORFS to Male STC (Snap to Connect) Repair Adapter - Straight

Repair adapters can be used to convert hose assembly with male pipe, female JIC, or female ORFS hose ends to a STC female direct port or a STC female adapter.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF3318T1010-458 Danfoss
Ends Configuration: 5/8in Male O-Ring Face Seal, 5/8in Male STC
Material(s): Steel
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 Thread Male STC Size STC
Release Tool
FF3318T0406-458 9/16-18 -06 FF90213-06
FF3318T0606-458 11/16-16 -06 FF90213-06
FF3318T0808-458 13/16-16 -08 FF90213-08
FF3318T1010-458 1-14 -10 FF90213-10
FF3318T1212-458 1-3/16-12 -12 FF90213-12
FF3318T1616-458 1-7/16-12 -16 FF90213-01-16S
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
