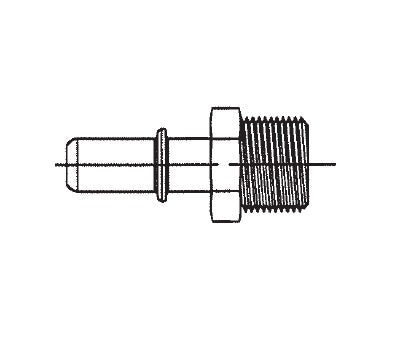

FF3959-0608B by Danfoss | Pipe Adapter | SAE J2044 Fitting | -06 Male NPTF x -08 Hose Barb | Brass

Name: FF3959-0608B by Danfoss | Pipe Adapter | SAE J2044 Fitting | -06 Male NPTF x -08 Hose Barb | Brass
Brand: Danfoss/Eaton
SKU: FF3959-0608B Danfoss
Price: 10.61 USD
Availability: InStock

$10.61 - $10.61

$10.61

$10.61 - $10.61

$10.61

Aeroquip® by Danfoss
Pipe Adapter - SAE J2044 Fitting

Quantity

Specifications for Variant SKU: FF3959-0608B Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male NPTF, 1/2in Hose Barb
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Male Pipe Thread	D	D1	Hex C	L
FF3959-0406B	1/4-18	0.26"	0.26"	9/16"	2.00"
FF3959-0608B	3/8-18	0.33"	0.41"	11/16"	2.25"
