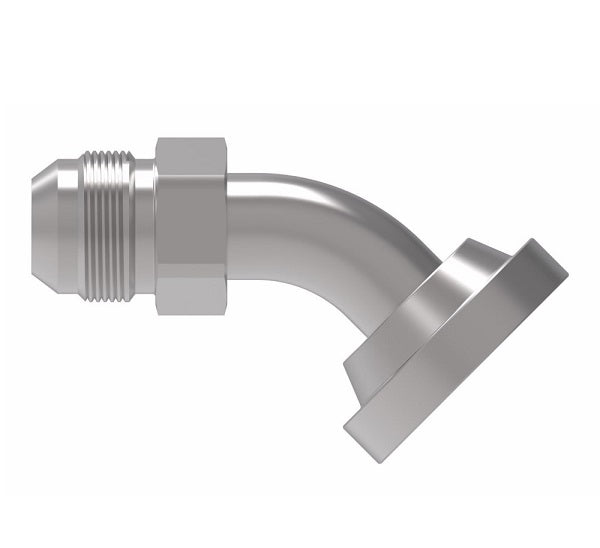

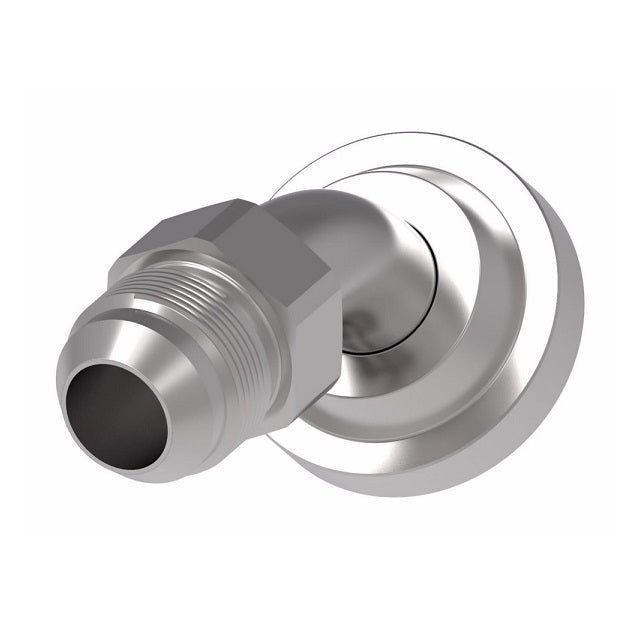

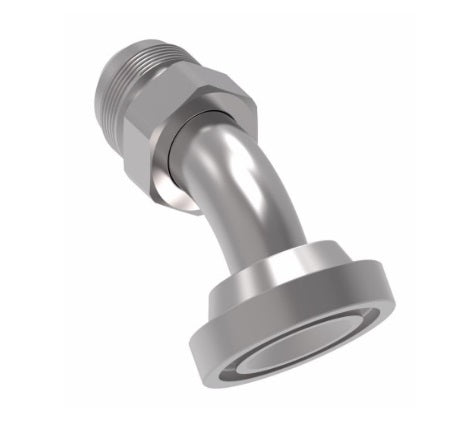

FF5539-1612S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare 45° Elbow Adapter | Standard Pressure Series | -16 Code 62 Split Flange x -12 Male 37° JIC Flare | Steel
FF5539-1612S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare 45° Elbow Adapter | Standard Pressure Series | -16 Code 62 Split Flange x -12 Male 37° JIC Flare | Steel
FF5539-1612S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare 45° Elbow Adapter | Standard Pressure Series | -16 Code 62 Split Flange x -12 Male 37° JIC Flare | Steel
FF5539-1612S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare 45° Elbow Adapter | Standard Pressure Series | -16 Code 62 Split Flange x -12 Male 37° JIC Flare | Steel

FF5539-1612S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare 45° Elbow Adapter | Standard Pressure Series | -16 Code 62 Split Flange x -12 Male 37° JIC Flare | Steel

$97.87 - $97.87
$97.87
$97.87 - $97.87
$97.87

Aeroquip® by Danfoss
Code 62 Split Flange/37° JIC Flare Adapter
Code 62 Split Flange x Male 37° JIC Flare
Standard Pressure Series
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF5539-1612S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1in Code 62 Flange, 3/4in Male JIC
Material(s): Steel
Note:
  • The performance rating of these adapters is the lower of the two terminal ends. These adapters are rated to JIC pressures as specified in SAE J514.
  • Mates with FC3425-size-449 flanges.
Part Number Steel Split Flange Size Tube O.D. Thread T A B
FF5539-1212S - - - - -
FF5539-1612S 1" 0.75" 1-1/16-12 3.09" 1.00"
FF5539-1616S 1" 1.00" 1-1/16-12 3.60" 1.06"
FF5539-2016S - - - - -
FF5539-2020S 1-1/4" 1.25" 1-5/8-12 3.86" 1.15"
FF5536-2416S 1-1/2" 1.00" 1-5/16-12 4.06" 1.25"
FF5539-2420S 1-1/2" 1.25" 1-5/8-12 3.86" 1.15"
FF5539-2424S 1-1/2" 1.50" 1-7/8-12 4.61" 1.41"
