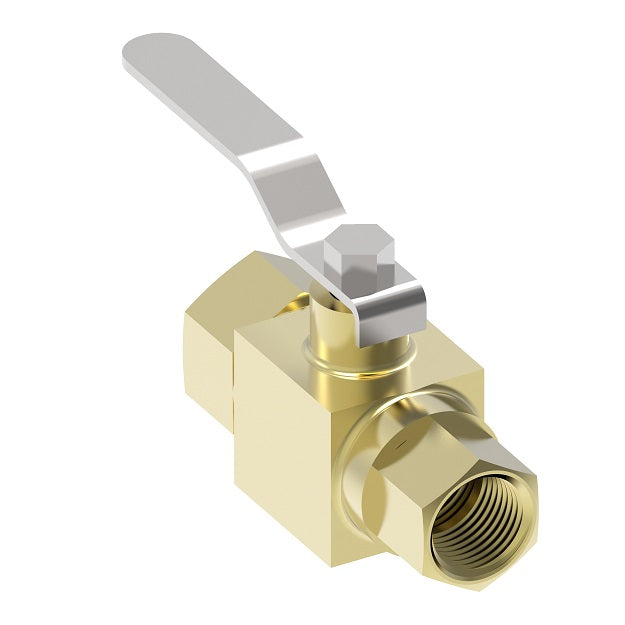

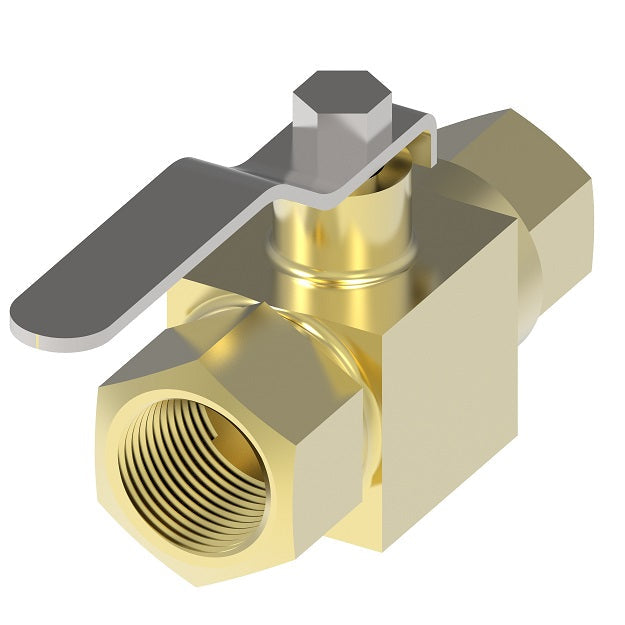

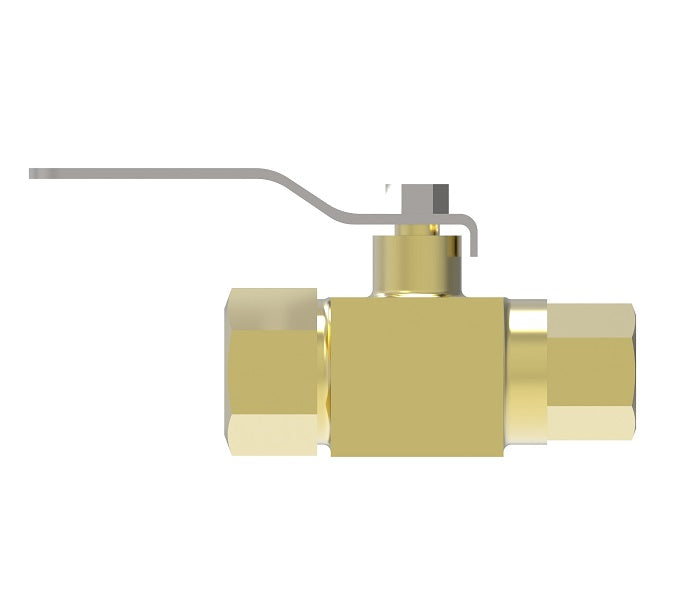

FF90589-12 by Danfoss | Ball Valve | Forged Body | 3/4" Female NPTF x 3/4" Female NPTF | Brass
FF90589-12 by Danfoss | Ball Valve | Forged Body | 3/4" Female NPTF x 3/4" Female NPTF | Brass
FF90589-12 by Danfoss | Ball Valve | Forged Body | 3/4" Female NPTF x 3/4" Female NPTF | Brass
FF90589-12 by Danfoss | Ball Valve | Forged Body | 3/4" Female NPTF x 3/4" Female NPTF | Brass

FF90589-12 by Danfoss | Ball Valve | Forged Body | 3/4" Female NPTF x 3/4" Female NPTF | Brass

$51.36 - $51.36
$51.36
$51.36 - $51.36
$51.36

Aeroquip® by Danfoss
Ball Valve - Forged Body Brass Ball Valve
Specifications for Variant SKU: FF90589-12 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPTF, 3/4in Female NPTF, Some Ends Match
Material(s): Brass
For use with:
  • Water, oils and gases.
Applications:
  • Vacuum service
  • Industrial service
  • Machine/engine coolant
  • Water service
  • Fuel tank - gasoline/diesel
Features/Benefits:
  • Blowout proof stem.
  • Double o-ring stem seal.
  • Tamper proof design.
  • Floating ball design.
  • 1/4 turn - full on/off.
  • Vacuum rating: Full.
Material:
  • Forged brass body.
  • Chrome plated brass ball.
  • Standard steel handle.
Pressure:
  • Working pressure: 600 psig WOG @ 70ºF.
Temperature Range:
  • Temperature range: -40ºF to +300ºF
Orifice Diameters:
  • 1/4" = .44"
  • 3/8" = .50"
  • 1/2" = .50"
  • 3/4" = .69"
  • 1" = .88"
  • 1-1/4" = 1.18"
  • 1-1/2" = 1.57"
  • 2" = 1.89"
Note:
  • Not steam rated.
Brass
Part Number		 Connections Size X Y Z
FF90589-04 F x F NPT 1/4" 3.70" 2.38" 2.25"
FF90589-08 F x F NPT 1/2" 3.70" 2.38" 2.25"
FF90589-12 F x F NPT 3/4" 3.80" 2.72" 2.98"
FF90589-16 F x F NPT 1" 4.50" 3.00" 3.34"
FF90589-20 F x F NPT 1-1/4" 6.20" 3.78" 3.65"
FF90589-32 F x F NPT 2" 6.20" 4.75" 4.76"
