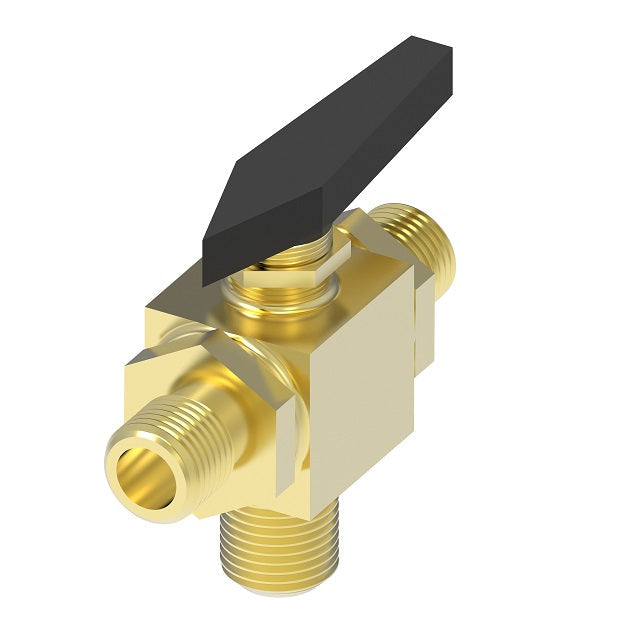

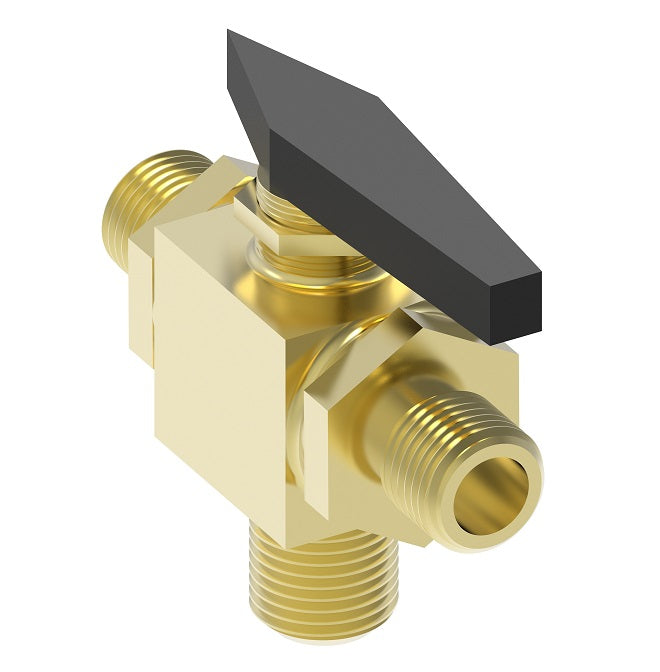

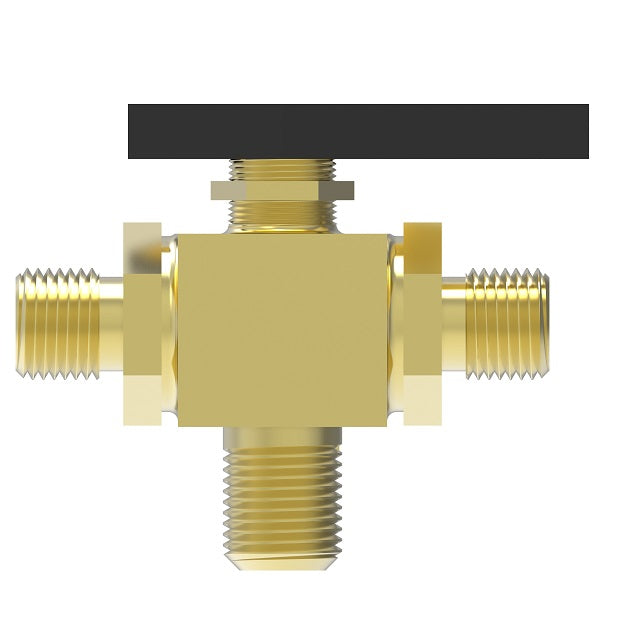

FF90598-04 by Danfoss | Instrumentation 3-Way Ball Valve | Compression | 1/4" Tube OD x 1/4" Tube OD | Brass
FF90598-04 by Danfoss | Instrumentation 3-Way Ball Valve | Compression | 1/4" Tube OD x 1/4" Tube OD | Brass
FF90598-04 by Danfoss | Instrumentation 3-Way Ball Valve | Compression | 1/4" Tube OD x 1/4" Tube OD | Brass
FF90598-04 by Danfoss | Instrumentation 3-Way Ball Valve | Compression | 1/4" Tube OD x 1/4" Tube OD | Brass

FF90598-04 by Danfoss | Instrumentation 3-Way Ball Valve | Compression | 1/4" Tube OD x 1/4" Tube OD | Brass

$116.22 - $116.22
$116.22
$116.22 - $116.22
$116.22

Aeroquip® by Danfoss
Ball Valve - Instrumentation 3-Way Ball Valve
Specifications for Variant SKU: FF90598-04 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Tube Compression, 1/4in Tube Compression, Some Ends Match
Material(s): Brass
For use with:
  • Water, oils and gases.
Applications:
  • Vacuum service.
  • Industrial service.
  • Center off position.
  • Water service.
  • Panel mounting.
Features/Benefits:
  • Blowout proof stem.
  • Double o-ring stem seal - never needs tightening.
  • Center off position.
  • Vacuum rating: Full.
Material:
  • Brass bar stock body.
  • Nickel plated ball.
  • Viton stem seal.
  • Metal retainer seal.
  • Seals: Ball Seats = Teflon,
    Stem Seals = 2 O-Rings (Viton & Buna-N).
Pressure:
  • Working pressure: 1/8" & 1/4" = 1500 psig @ 70°F
  • 3/8" & 1/2" = 1,000 psig @ 70°F (side port inlet) 1000 psig (bottom port inlet)
Temperature Range:
  • Temperature range: -40ºF to +300ºF
Orifice Diameters:
  • 1/8" & 1/4" = .250"
  • 3/8" & 1/2" = .340"
  • Panel mount hole size: 9/16" ID
Note:
  • Not steam rated.
Brass
Part Number 		Connections Size X Y Z
FF90597-02 F x F NPT 1/8" 0.92" 0.92" 2.12"
FF90597-04 F x F NPT 1/4" 0.92" 0.92" 2.12"
FF90597-06 F x F NPT 3/8" 1.10" 1.10" 2.59"
FF90598-02 Compression 1/8" 0.92" 0.92" 2.12"
FF90598-04 Compression 1/4" 0.92" 0.92" 2.12"
FF90598-08 Compression 1/2" 1.19" 1.19" 2.59"
