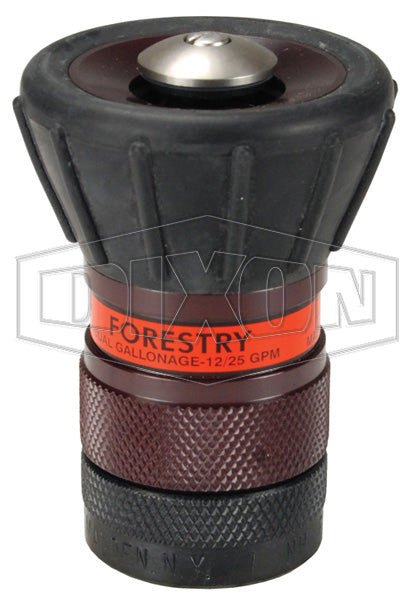

FFN75GHT Dixon Aluminum Forestry Fog Nozzle - 3/4" Female GHT

Name: FFN75GHT Dixon Aluminum Forestry Fog Nozzle - 3/4" Female GHT
Brand: Dixon
SKU: FFN75GHT Dixon
Price: 144.41 USD
Availability: InStock

Save $17.20

$161.61

$161.61 - $161.61

$161.61

$144.41

$144.41 - $144.41

$144.41

Dixon Fire Fittings
Fire Nozzles - Forestry Fog Nozzle

Quantity

Specifications for Variant SKU: FFN75GHT Dixon
Shape (Orientation):	Straight
Material(s):	Anodized Aluminum

Features:
Maroon hard-coated barrel allows for easy identification. Corrosion resistant plated. Dual flow rate nozzles offer two straight stream and two fog patterns. Combination fog and straight stream. Maximum operating pressure: 600 PSI (water only) at 70°F (21°C).

Part Number	Size	GPM @ 100 PSI Straight Stream		NSN	Forestry Service Specification	Weight (Lbs.)
		1st	2nd
FFN75GHT	3/4" GHT	1-2	3-4*	-	-	0.8500
FFN100	1" NPSH	12	25	4210-01-165-6603	USFS 5100-239A 5100-239C 5100-107a	0.8200
FFN150	1-1/2" NPSH	25	70	-	-	1.0250
FFN100NST	1" NST (NH)	12	25	-	-	0.6200
FFN150NST	1-1/2" NST (NH)	25	70	4210-01-167-1123	USFS 5100-107A 5100-239C 5100-107a	0.9100

* GPM @ 40 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
