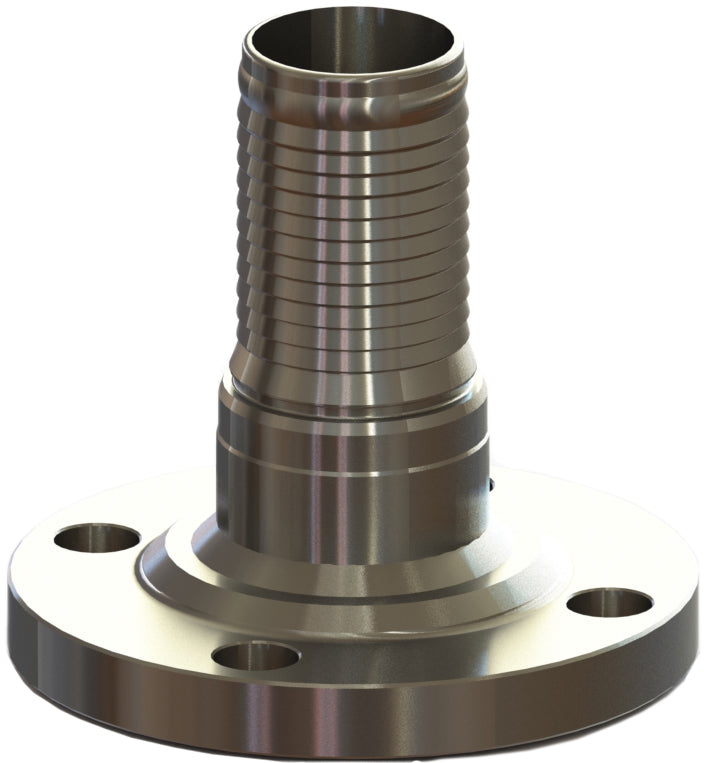

FHASS-16C by Campbell Fittings | Fixed Flange | 4" 150# Flange x 4" Hose Barb | 316 Stainless Steel

FHASS-16C by Campbell Fittings | Fixed Flange | 4" 150# Flange x 4" Hose Barb | 316 Stainless Steel

Save $346.37 Save $346.37
$865.92
$865.92 - $865.92
$865.92
$519.55
$519.55 - $519.55
$519.55

by Campbell
Crimpnology Nipple:FHASS Flanged (with 150lb. fixed flange)
Specifications for Variant SKU: FHASS-16C Campbell Fittings
Series: FHASS Series
Shape (Orientation): Straight
Ends Configuration: 4in 150# Flange, 4in Hose Barb
Material(s): 316 Stainless Steel
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules.
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible.
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage.
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles.
Recommended Hose Attachments:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
Part Number Hose Size
FHASS-4C 1"
FHASS-6C 1-1/2"
FHASS-8C 2"
FHASS-10C 2-1/2"
FHASS-12C 3"
FHASS-16C 4"
FHASS-24C 6"
FHASS-32C 8"
”_x0001_
Campbell Fittings

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
