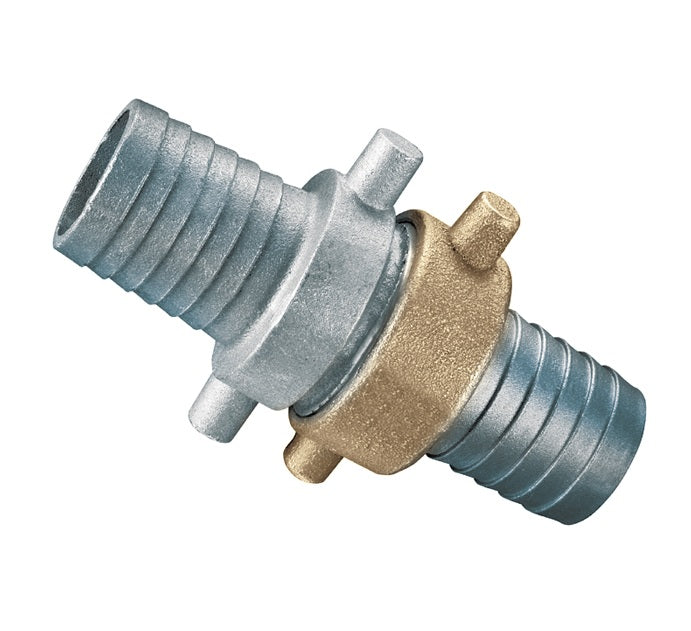

FHNST250 by Kuriyama | FHNST Series | Pin Lug Coupling | Complete Set | NST Threads | 2-1/2" Hose Barb x 2-1/2" Hose Barb | Aluminum with Brass Swivel Nut

Save $12.05

$46.93

$46.93 - $46.93

$46.93

$34.88

$34.88 - $34.88

$34.88

Versatile threaded hose connectors designed for suction and discharge applications.

Specifications for Variant SKU: FHNST250 Kuriyama
Series:	FHNST Series
Shape (Orientation):	Straight
Ends Configuration:	2-1/2in Hose Barb, 2-1/2in Hose Barb, Some Ends Match
Material(s):	Aluminum, Brass
Applicable Specs & Approvals:	ASTM B108-92, ASTM B283

What are the Features?

Versatile threaded hose connectors designed for suction and discharge applications.
Male ends supplied with NST threads (National Fire Hose Straight Threads).
Cylindrical studs or “pins" positioned on the outside rim of the coupling allowing the use of a spanner wrench to tighten the coupling.
Replacement gaskets for all versions of the pin lug couplings with NST threads.

What are the Materials?

ASTM B108-92 356 aluminum alloy.
ASTM B283 Grade C37700 brass alloy.
Gasket Material: Buna-N.
Gasket Temperature Rating: -40°F (-40°C) to +250°F (+121°C).

Part Number	Size (in)	PSI Rating at 70°F	Weight Each (lbs)
FHNST150	1-1/2"	75 PSI	0.43lbs
FHNST250	2-1/2"	50 PSI	1.04lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
