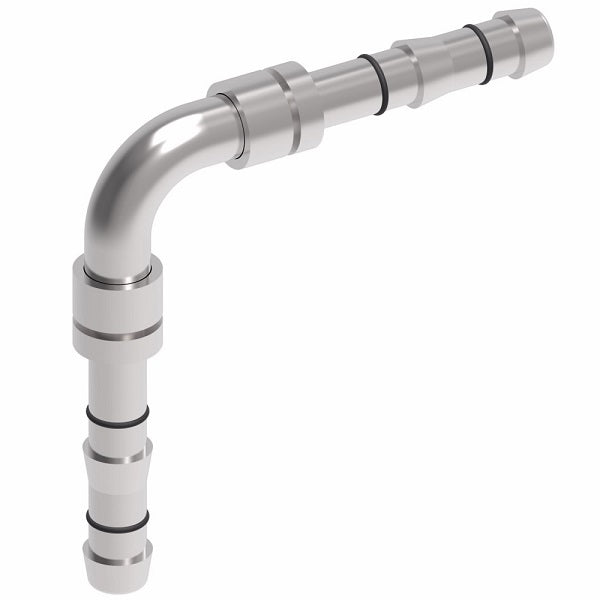

FJ3058-04-1212S E-Z Clip System by Danfoss | Male splicer 90° Elbow | A/C Refrigeration Fitting | -12 Male splicer x - 12 Hose Barb | Steel

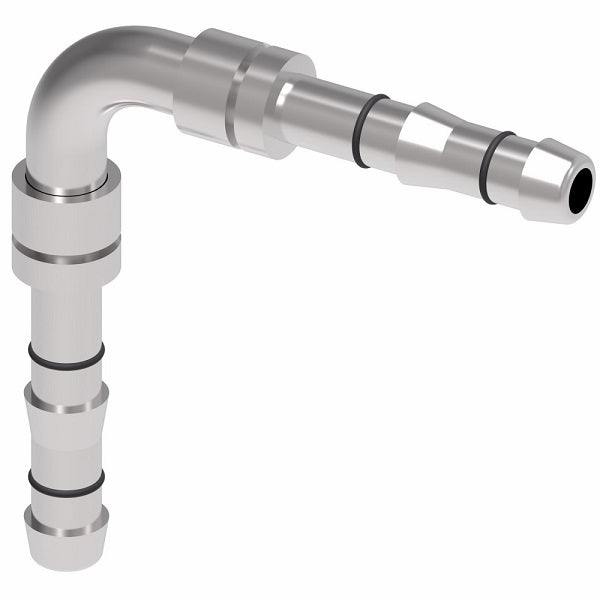

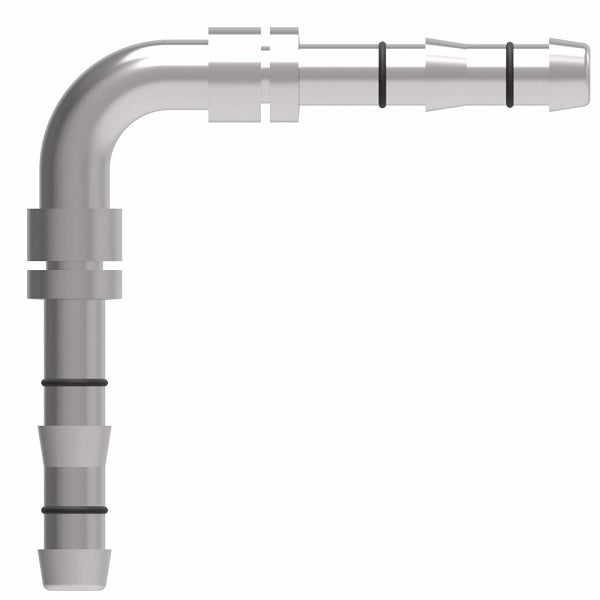

FJ3058-04-1212S E-Z Clip System by Danfoss | Splicer 90° Elbow | A/C Refrigeration Fitting | -12 Hose Barb x -12 Hose Barb | Steel | Pack of 10
FJ3058-04-1212S E-Z Clip System by Danfoss | Splicer 90° Elbow | A/C Refrigeration Fitting | -12 Hose Barb x -12 Hose Barb | Steel | Pack of 10
FJ3058-04-1212S E-Z Clip System by Danfoss | Male splicer 90° Elbow | A/C Refrigeration Fitting | -12 Male splicer x - 12 Hose Barb | Steel

FJ3058-04-1212S E-Z Clip System by Danfoss | Splicer 90° Elbow | A/C Refrigeration Fitting | -12 Hose Barb x -12 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$379.20 - $379.20
$379.20
$379.20 - $379.20
$379.20

Danfoss A/C & Refrigeration
E-Z Clip System - Splicer - 90° Elbow

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3058-04-1212S Danfoss | 10 |
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Hose Barb, 3/4in Hose Barb, Some Ends Match
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)
FJ3058-01-0606S - -06 2.71" 1.18" 2.71" - FF13819
FJ3058-02-0808S - -08 2.98" 1.43" 2.98" - FF13820
FJ3058-03-1010S - -10 3.08" 1.53" 3.08" - FF13821
FJ3058-04-1212S - -12 3.68" 2.11" 3.68" - FF13822
FJ3058-05-1010S - -10 6.86" 5.61" 6.86" - FF13821
FJ3058-06-1212S - -12 6.86" 5.36" 6.86" - FF13822

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
