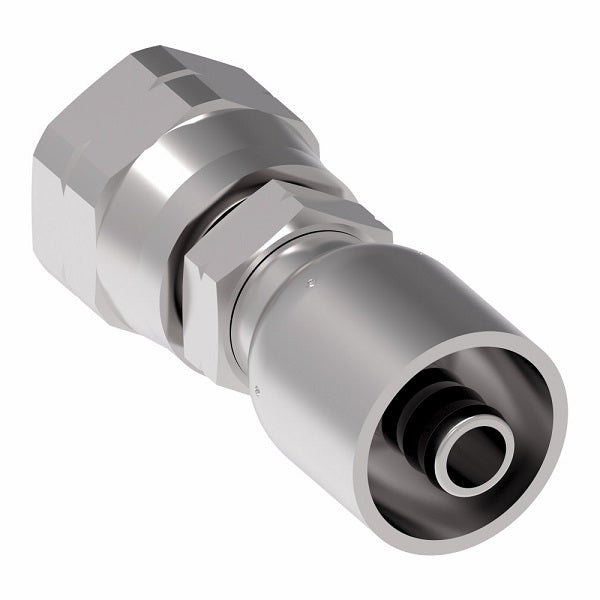

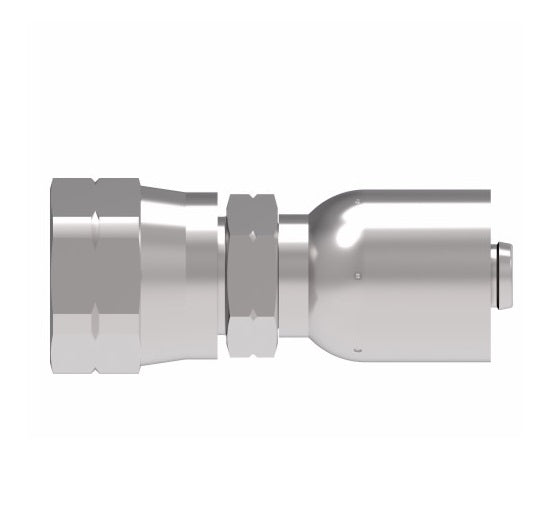

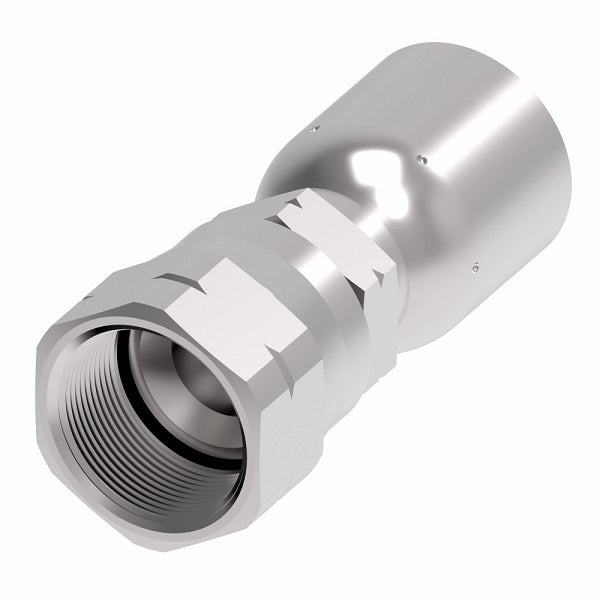

FJ3094-0405S Aeroquip by Danfoss | Female SAE 45° Swivel 100R5 Crimp Fitting | FJ Series | -04 Female SAE 45° Swivel x -05 Hose Barb | Steel

FJ3094-0405S Aeroquip by Danfoss | Female SAE 45° Swivel 100R5 Crimp Fitting | FJ Series | -04 Female SAE 45° Swivel x -05 Hose Barb | Steel

Name: FJ3094-0405S Aeroquip by Danfoss | Female SAE 45° Swivel 100R5 Crimp Fitting | FJ Series | -04 Female SAE 45° Swivel x -05 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FJ3094-0405S Danfoss
Price: 16.8 USD
Availability: InStock

$16.80 - $16.80

$16.80

$16.80 - $16.80

$16.80

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female SAE 45° Swivel - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FJ3094-0405S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female SAE 45 Flare, 5/16in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| FC234 Series \| FC300 Series \| FC350 Series \| FC355 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	Hex
FJ3094-0404S	-04	7/16-20	1.88"	1.10"	0.56"
FJ3094-0405S	-05	7/16-20	1.94"	1.15"	0.56"
FJ3094-0505S	-05	1/2-20	2.09"	1.13"	0.62"
FJ3094-0606S	-06	5/8-18	2.07"	1.28"	0.75"
FJ3094-0806S	-06	3/4-16	2.41"	1.32"	0.88"
FJ3094-0808S	-08	3/4-16	2.15"	1.35"	0.88"
FJ3094-1010S	-10	7/8-14	2.41"	1.53"	1.00"
FJ3094-1012S	-12	7/18-14	2.69"	1.43"	1.00"
FJ3094-1212S	-12	1-1/16-14	2.43"	1.55"	1.25"
