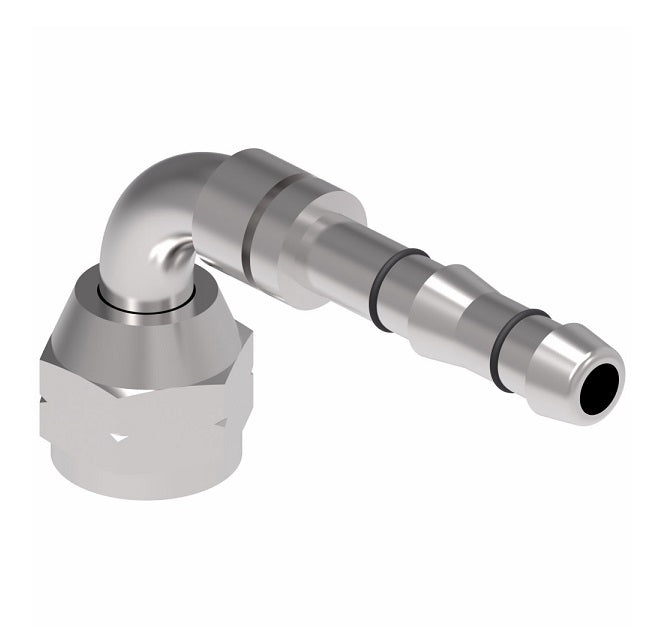

FJ3149-03-0808S E-Z Clip System by Danfoss | Female SAE 45° Flare (Universal) 90° Elbow | A/C Refrigeration Fitting | -08 Female SAE 45° Flare x -08 Hose Barb | Steel
FJ3149-03-0808S E-Z Clip System by Danfoss | Female SAE 45° Flare (Universal) 90° Elbow | A/C Refrigeration Fitting | -08 Female SAE 45° Flare x -08 Hose Barb | Steel
FJ3149-03-0808S E-Z Clip System by Danfoss | Female SAE 45° Flare (Universal) 90° Elbow | A/C Refrigeration Fitting | -08 Female SAE 45° Flare x -08 Hose Barb | Steel

FJ3149-03-0808S E-Z Clip System by Danfoss | Female SAE 45° Flare (Universal) 90° Elbow | A/C Refrigeration Fitting | -08 Female SAE 45° Flare x -08 Hose Barb | Steel

$23.36 - $23.36
$23.36
$23.36 - $23.36
$23.36

Danfoss A/C & Refrigeration
E-Z Clip System - Female SAE 45° Flare - 45° Elbow

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3149-03-0808S Danfoss
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female SAE 45 Flare, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)
FJ3149-0404S* 7/16-20 -04 1.47" 0.80" 0.68" 0.56" FF14175
FJ3149-01-0606S** 5/8-18 -06 2.51" 0.98" 0.85" 0.75" FF14171
FJ3149-02-0608S** 5/8-18 -08 2.52" 0.98" 0.85" 0.75" FF14172
FJ3149-03-0808S* 3/4-16 -08 2.74" 1.20" 1.09" 0.88" FF14172
FJ3149-04-1010S* 7/8-14 -10 3.09" 1.54" 1.19" 1.00" FF14173
FJ3149-05-1012S* 7/8-14 -12 3.09" 1.54" 1.19" 1.00" FF14174
FJ3149-06-1212S* 1-1/16-14 -12 3.68" 2.11" 1.80" 1.25" FF14174
FJ3149-07-0810S* 7/8-14 -10 2.83" 1.30" 1.09" 0.88" FF14173

* Universal flare

** Double notch in nut for universal type identification.
