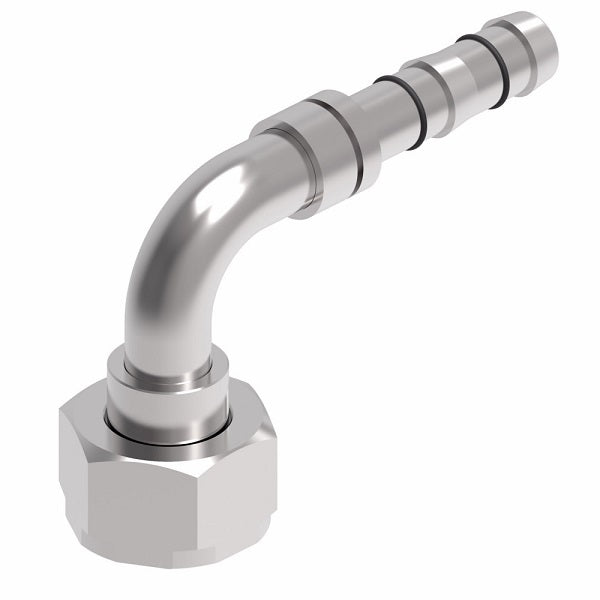

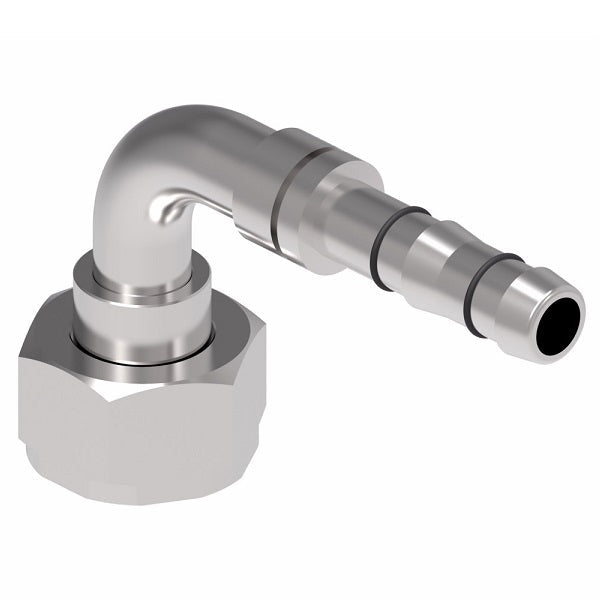

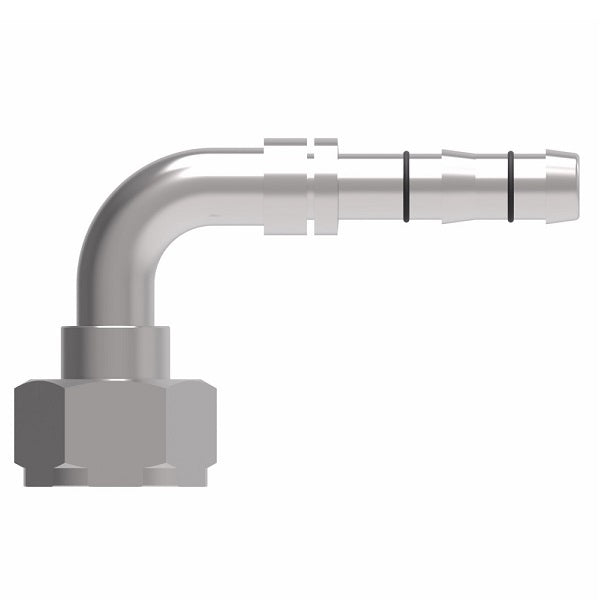

FJ3225-1008S E-Z Clip System by Danfoss | Female Rotalok 90° Elbow | A/C Refrigeration Fitting | -10 Female Rotalok x -08 Hose Barb | Steel

FJ3225-1008S E-Z Clip System by Danfoss | Female Rotalok 90° Elbow | A/C Refrigeration Fitting | -10 Female Rotalok x -08 Hose Barb | Steel | Pack of 10

$538.95 - $538.95

$538.95

$538.95 - $538.95

$538.95

Danfoss A/C & Refrigeration
E-Z Clip System - Female Rotalok - 90° Elbow

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.

Package Quantity: 10 Units

Specifications for Variant SKU: FJ3225-1008S Danfoss \| 10 \|
Brand:	E-Z Clip
Shape (Orientation):	90 Degree
Material(s):	Steel
Compatible with the following Series:	GH001 Series \| GH134 Series

Additional Information:
E-Z Clip Assembly Instructions & Guide.PDF


Steel Part Number	Thread "T"	Hose Size	A Ref.	D Ref.	H Ref.	Ref.	Clip & Cage Kit (Required)
FJ3225-1010S	1-14	-10	2.98"	1.43"	1.52"	1.13"	FF14173
FJ3225-1008S	1-14	-08	2.98"	1.43"	1.52"	1.13"	FF14172
FJ3225-1012S	1-14	-12	3.11"	1.54"	1.62"	1.13"	FF14174
