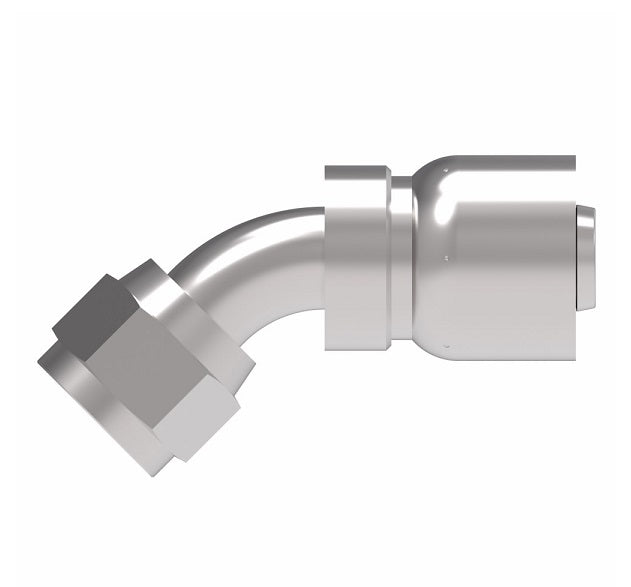

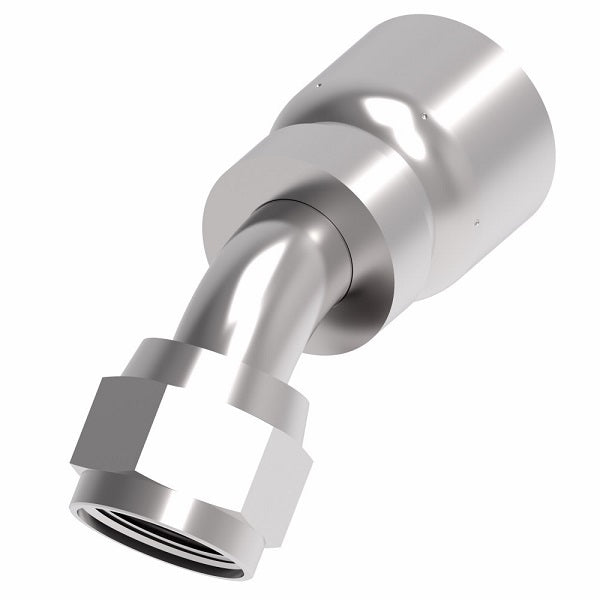

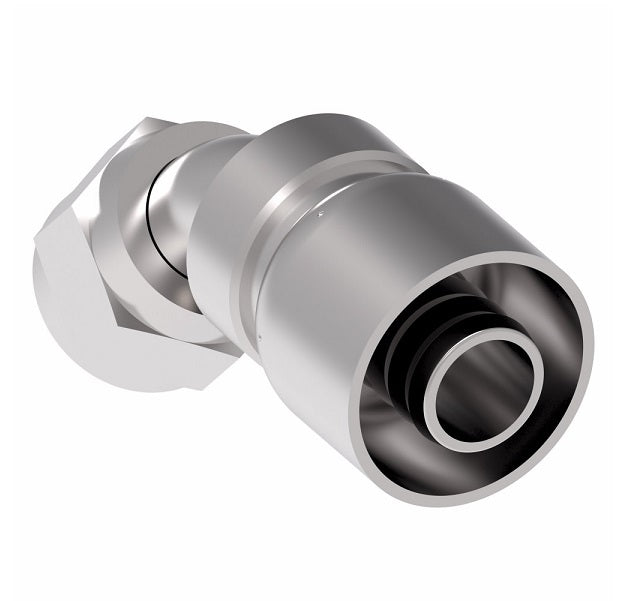

FJ3243-1012S Aeroquip by Danfoss | Female Universal Swivel 45° Elbow 100R5 Crimp Fitting | FJ Series | -10 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -12 Hose Barb | Steel

FJ3243-1012S Aeroquip by Danfoss | Female Universal Swivel 45° Elbow 100R5 Crimp Fitting | FJ Series | -10 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -12 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$704.60 - $704.60

$704.60

$704.60 - $704.60

$704.60

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female Universal Swivel - 45° Elbow

Female JIC Swivel also Couples with SAE 45° Flare

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FJ3243-1012S Danfoss \| 10 \|
Shape (Orientation):	45 Degree
Ends Configuration:	5/8in Female JIC, 3/4in Hose Barb, 5/8in Female SAE 45 Flare
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| FC234 Series \| FC300 Series \| FC350 Series \| FC355 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	H	Hex
FJ3243-0404S	-04	7/16-20	1.72"	0.94"	0.33"	0.56"
FJ3243-0505S	-05	1/2-20	1.79"	0.99"	0.36"	0.62"
FJ3243-0808S	-08	3/4-16	2.30"	1.58"	0.55"	0.88"
FJ3243-0810S	-10	3/4-16	2.42"	1.54"	0.55"	0.88"
FJ3243-1010S	-10	7/8-14	2.50"	1.62"	0.63"	1.00"
FJ3243-1012S	-12	7/8-14	-	1.70"	0.64"	-
