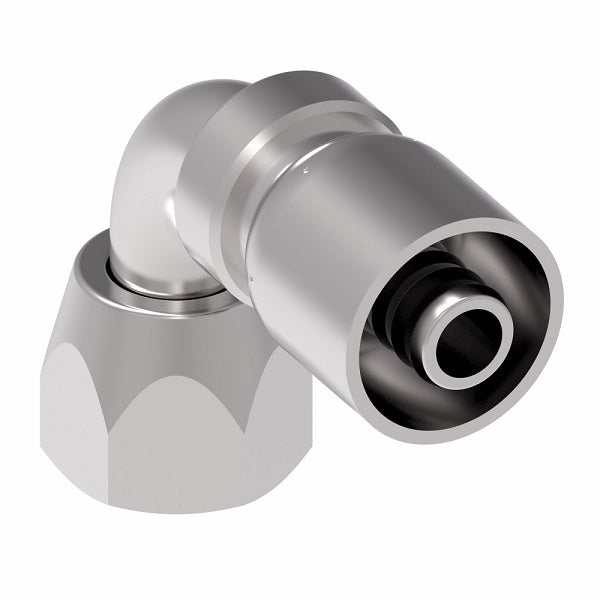

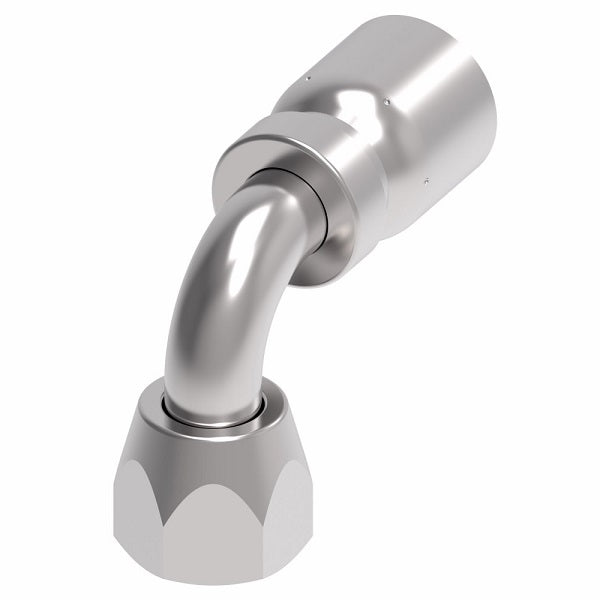

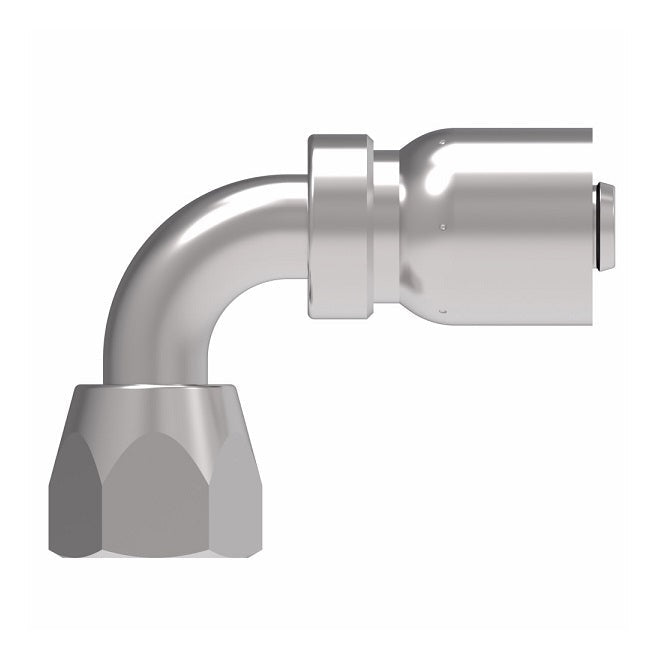

FJ3244-0808S Aeroquip by Danfoss | Female Universal Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -08 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -08 Hose Barb | Steel
FJ3244-0808S Aeroquip by Danfoss | Female Universal Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -08 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -08 Hose Barb | Steel | Pack of 10
FJ3244-0808S Aeroquip by Danfoss | Female Universal Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -08 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -08 Hose Barb | Steel | Pack of 10
FJ3244-0808S Aeroquip by Danfoss | Female Universal Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -08 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -08 Hose Barb | Steel

FJ3244-0808S Aeroquip by Danfoss | Female Universal Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -08 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -08 Hose Barb | Steel | Pack of 10

$294.80 - $294.80
$294.80
$294.80 - $294.80
$294.80

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female Universal Swivel - 90° Elbow

Female JIC Swivel also Couples with SAE 45° Flare.

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: FJ3244-0808S Danfoss | 10 |
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female JIC, 1/2in Hose Barb, 1/2in Female SAE 45 Flare
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 1503 Series  |   FC234 Series  |   FC300 Series  |   FC350 Series  |   FC355 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D H Hex
FJ3244-0404S -04 7/16-20 1.61" 0.83" 0.68" 0.56"
FJ3244-0405S -05 7/16-20 1.62" 0.83" 0.68" 0.56"
FJ3244-0505S -05 1/2-20 1.68" 0.89" 0.77" 0.62"
FJ3244-0808S -08 3/4-16 2.07" 1.27" 1.09" 0.88"
FJ3244-0810S -10 3/4-16 2.17" 1.29" 1.09" 0.88"
FJ3244-1010S -10 7/8-14 2.51" 1.63" 1.23" 1.00"
FJ3244-1012S -12 7/8-14 2.60" 1.71" 1.23" 1.00"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
