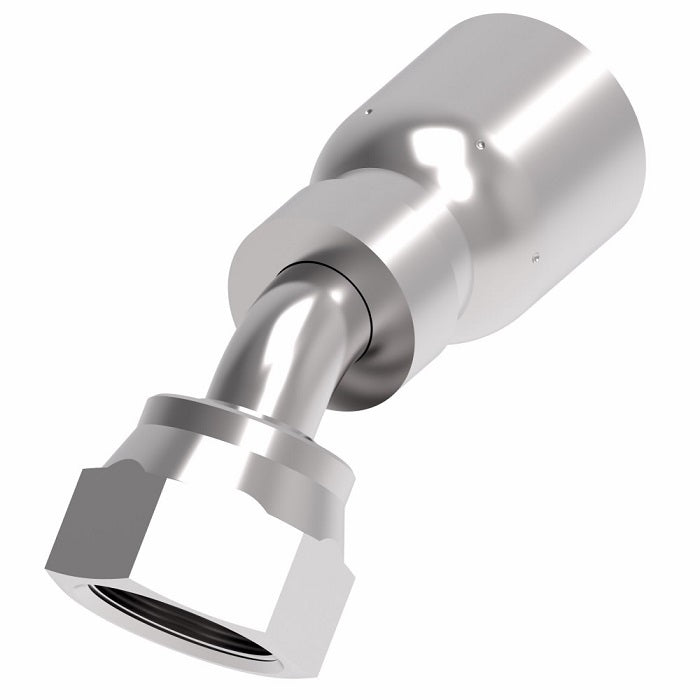

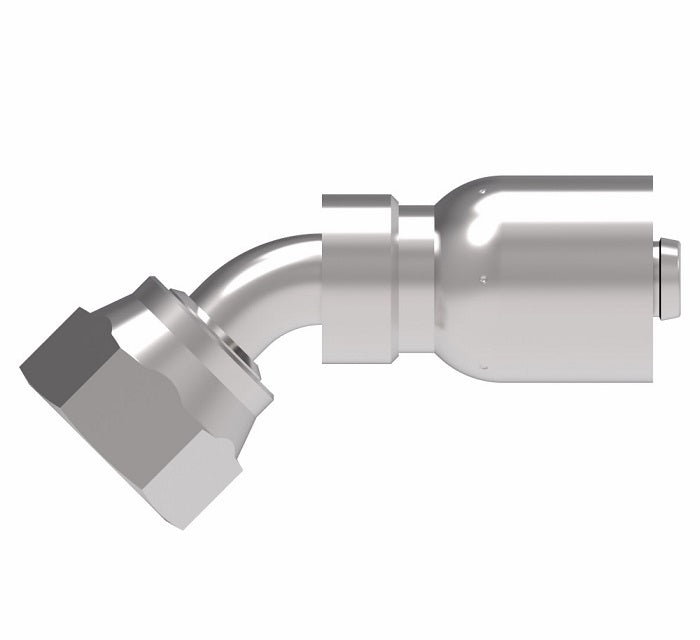

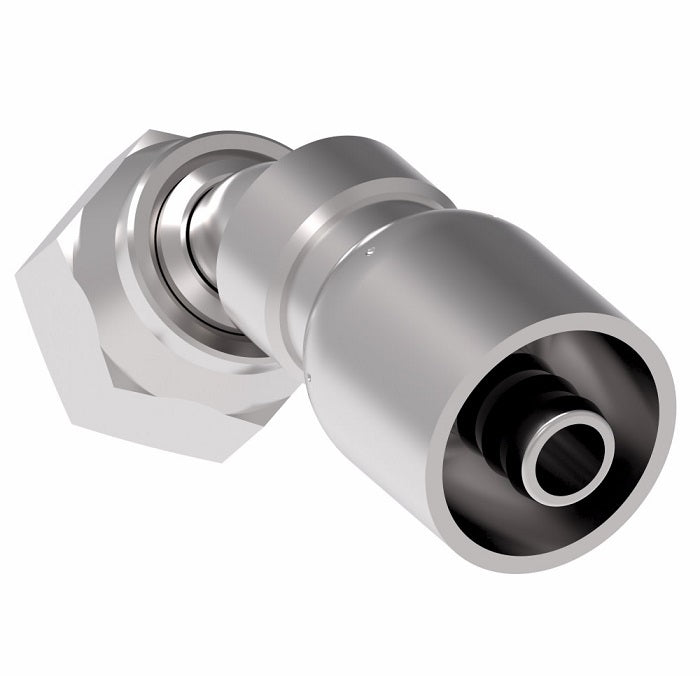

FJ3254-1616S Aeroquip by Danfoss | Female ORS Swivel 45° Elbow 100R5 Crimp Fitting | FJ Series | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

FJ3254-1616S Aeroquip by Danfoss | Female ORS Swivel 45° Elbow 100R5 Crimp Fitting | FJ Series | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel | Pack of 10

$853.63 - $853.63

$853.63

$853.63 - $853.63

$853.63

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female ORS Swivel - 45° Elbow

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: FJ3254-1616S Danfoss \| 10 \|
Shape (Orientation):	45 Degree
Ends Configuration:	1in Female O-Ring Face Seal, 1in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| FC234 Series \| FC300 Series \| FC350 Series \| FC355 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	H	Hex
FJ3254-0404S	-04	9/16-18	1.83"	1.05"	0.44"	0.69"
FJ3254-0608S	-08	11/16-16	-	-	-	-
FJ3254-0606S	-06	11/16-16	1.99"	1.19"	0.44"	0.81"
FJ3254-0808S	-08	13/16-16	2.34"	1.54"	0.59"	0.94"
FJ3254-0810S	-10	13/16-16	2.45"	1.57"	0.59"	0.94"
FJ3254-1010S	-10	1-14	2.65"	1.77"	0.69"	1.13"
FJ3254-1210S	-10	1-3/16-12	2.91"	2.03"	0.85"	1.38"
FJ3254-1212S	-12	1-3/16-12	2.88"	1.99"	0.83"	1.38"
FJ3254-1612S	-12	1-7/16-12	-	-	-	-
FJ3254-1616S	-16	1-7/16-12	3.25"	2.27"	0.95"	1.63"
