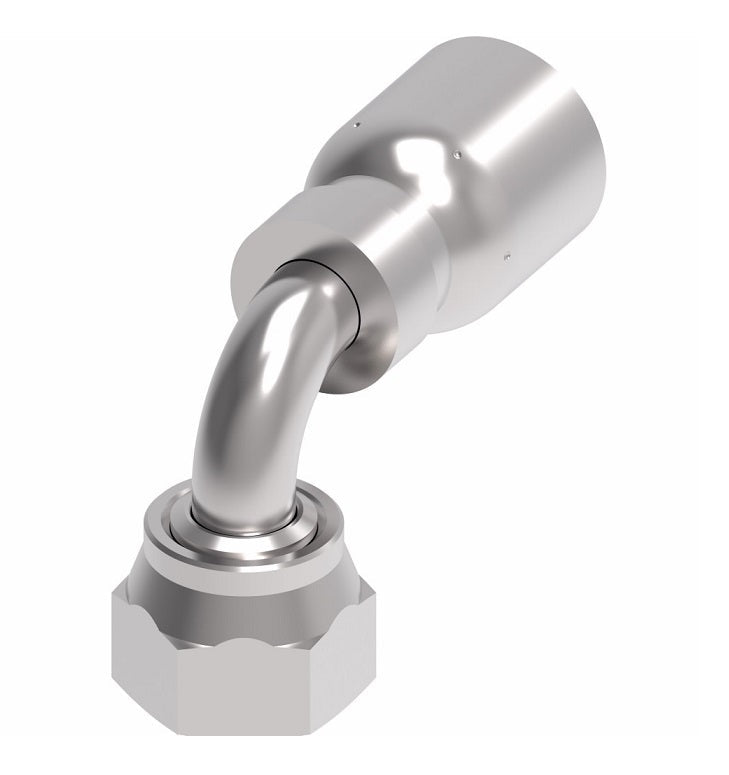

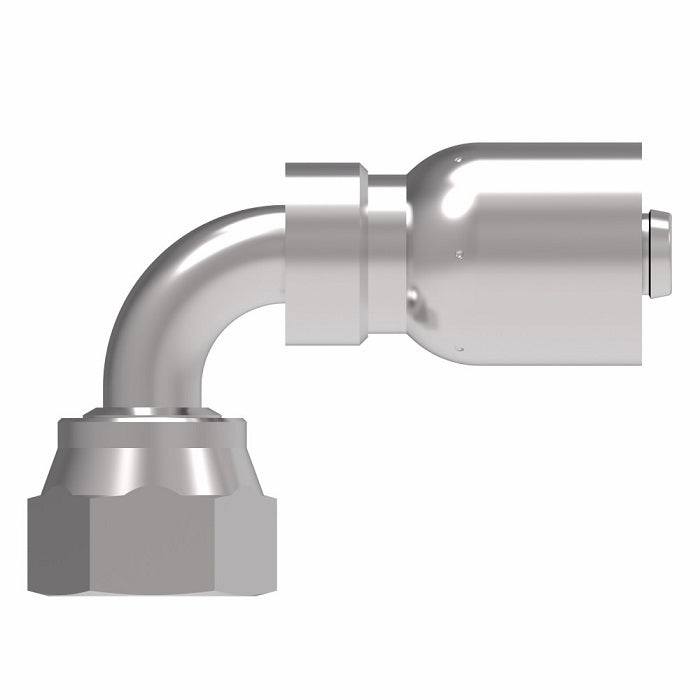

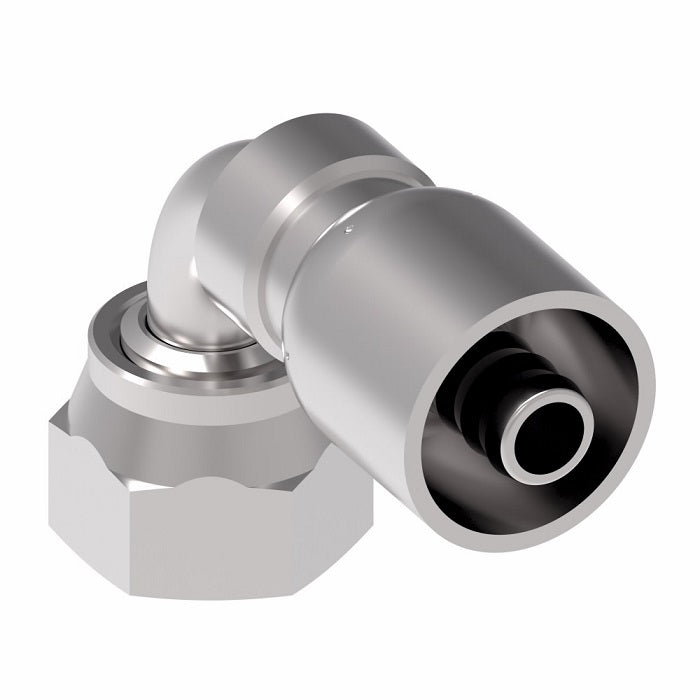

FJ3255-1010S Aeroquip by Danfoss | Female ORS Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

FJ3255-1010S Aeroquip by Danfoss | Female ORS Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

$57.59 - $57.59
$57.59
$57.59 - $57.59
$57.59

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female ORS Swivel - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ3255-1010S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female O-Ring Face Seal, 5/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 1503 Series  |   FC234 Series  |   FC300 Series  |   FC350 Series  |   FC355 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D H Hex
FJ3255-0404S -04 9/16-18 1.61" 0.83" 0.84" 0.69"
FJ3255-0406S -06 9/16-18 1.72" 0.93" 0.84" 0.69"
FJ3255-0606S -06 11/16-16 1.84" 1.05" 0.91" 0.81"
FJ3255-0806S -06 11/16-16 2.06" 1.27" 1.15" 0.94"
FJ3255-0608S -08 11/16-16 1.86" 1.07" 0.94" 0.81"
FJ3255-0808S -08 13/16-16 2.07" 1.27" 1.15" 0.94"
FJ3255-0810S -10 13/16-16 2.18" 1.30" 1.17" 0.94"
FJ3255-1010S -10 1-14 2.30" 1.42" 1.31" 1.13"
FJ3255-1210S -10 1-3/16-12 2.80" 1.91" 1.93" 1.38"
FJ3255-1212S -12 1-3/16-12 2.78" 1.90" 1.90" 1.38"
FJ3255-1612S -12 - - - - -
FJ3255-1616S -16 1-7/16-12 3.19" 2.20" 2.22" 1.63"
FJ3255-2020S -20 1-11/16-12 3.65" 2.47" 2.50" 1.88"
