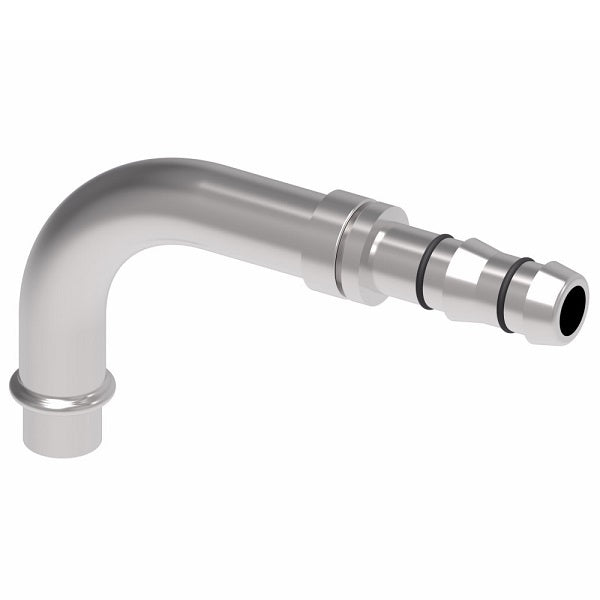

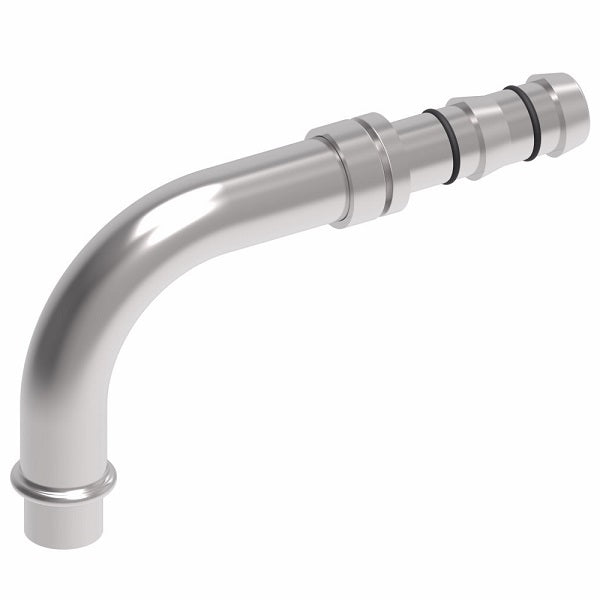

FJ3496-01-1010S E-Z Clip System by Danfoss | Pilot Connection (Long Pilot) 90° Elbow | A/C Refrigeration Fitting | -10 Long Pilot Connection x -10 Hose Barb | Steel
FJ3496-01-1010S E-Z Clip System by Danfoss | Pilot Connection (Long Pilot) 90° Elbow | A/C Refrigeration Fitting | -10 Long Pilot Connection x -10 Hose Barb | Steel
FJ3496-01-1010S E-Z Clip System by Danfoss | Pilot Connection (Long Pilot) 90° Elbow | A/C Refrigeration Fitting | -10 Long Pilot Connection x -10 Hose Barb | Steel
FJ3496-01-1010S E-Z Clip System by Danfoss | Pilot Connection (Long Pilot) 90° Elbow | A/C Refrigeration Fitting | -10 Long Pilot Connection x -10 Hose Barb | Steel

FJ3496-01-1010S E-Z Clip System by Danfoss | Pilot Connection (Long Pilot) 90° Elbow | A/C Refrigeration Fitting | -10 Long Pilot Connection x -10 Hose Barb | Steel

$90.76 - $90.76
$90.76
$90.76 - $90.76
$90.76

Danfoss A/C & Refrigeration
E-Z Clip System - Pilot Connection (Long Pilot) - 90° Elbow

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3496-01-1010S Danfoss
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female O-Ring Long Pilot, 5/8in Hose Barb, Some Ends Match
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)
FJ3496-01-1010S - -10 4.22" 2.67" 1.89" - FF14173
FJ3496-03-1012S - -12 4.25" 2.67" 1.89" - FF14174
