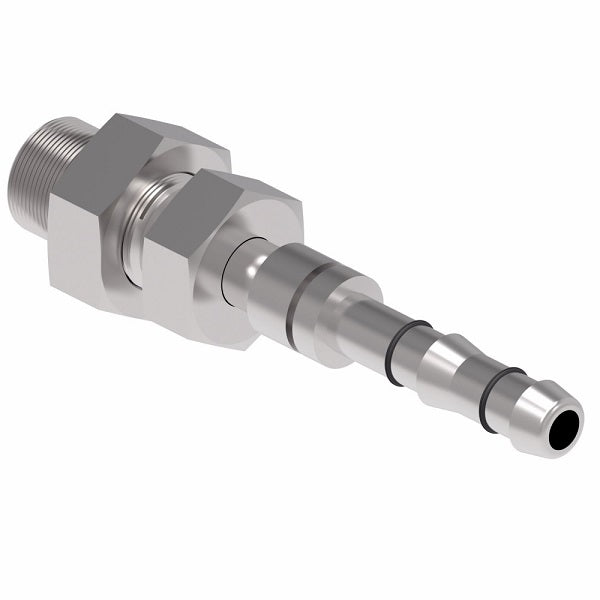

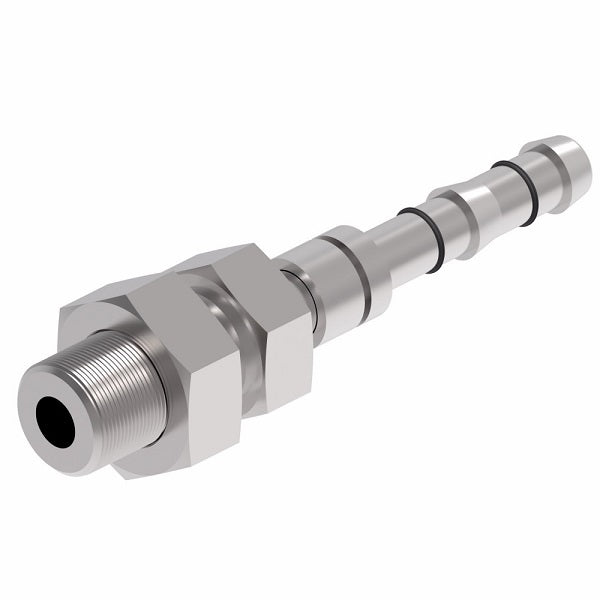

FJ3513-1212S E-Z Clip System by Danfoss | Male O-Ring Pilot Bulkhead | A/C Refrigeration Fitting | -12 Male O-Ring Pilot x -12 Hose Barb | Steel

FJ3513-1212S E-Z Clip System by Danfoss | Male O-Ring Pilot Bulkhead | A/C Refrigeration Fitting | -12 Male O-Ring Pilot x -12 Hose Barb | Steel | Pack of 10

$687.91 - $687.91

$687.91

$687.91 - $687.91

$687.91

Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring Pilot Bulkhead - Straight

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.

Package Quantity: 10 Units

Specifications for Variant SKU: FJ3513-1212S Danfoss \| 10 \|
Brand:	E-Z Clip
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	GH001 Series \| GH134 Series

Additional Information:
E-Z Clip Assembly Instructions & Guide.PDF


Steel Part Number	Thread "T"	Hose Size	A Ref.	D Ref.	Ref.	Clip & Cage Kit (Required)
FJ3513-0606S	5/8-18	-06	3.69"	2.16"	0.94"	FF14171
FJ3513-0808S	3/4-16	-08	3.93"	2.39"	1.00"	FF14172
FJ3513-1010S	7/8-14	-10	4.49"	2.94"	1.13"	FF14173
FJ3513-1212S	1-1/16-14	-12	4.83"	3.24"	1.38"	FF14174
FJ3513-1216S	1-1/16-14	-16	4.92"	3.24"	1.38"	FF14401

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
