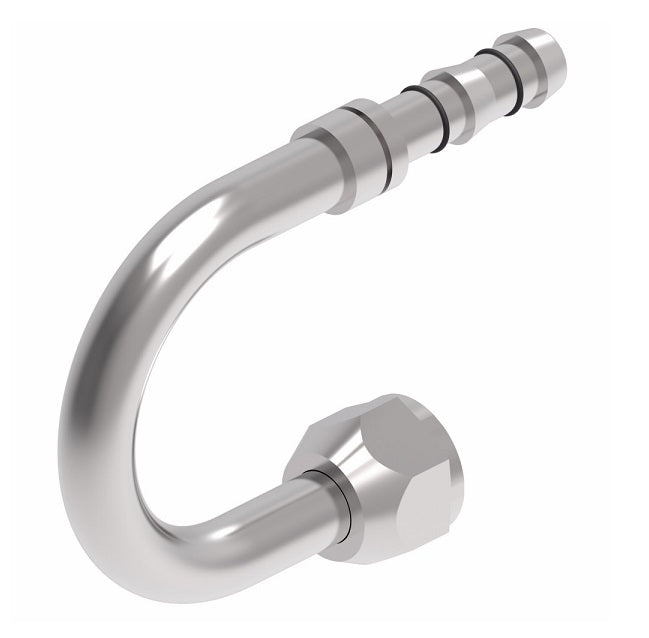

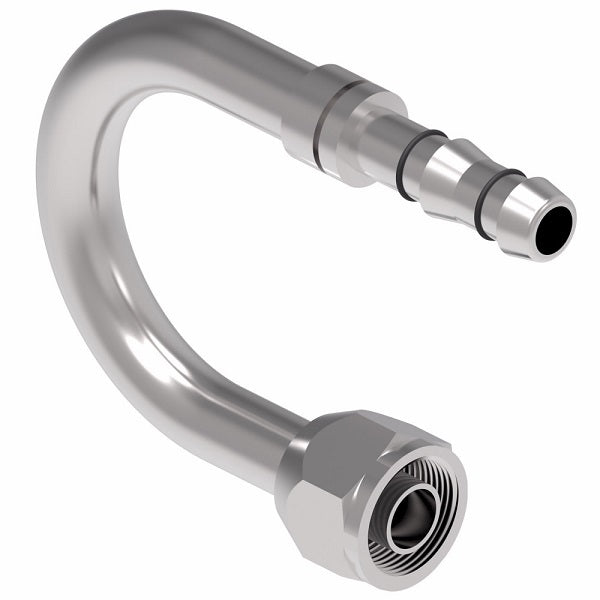

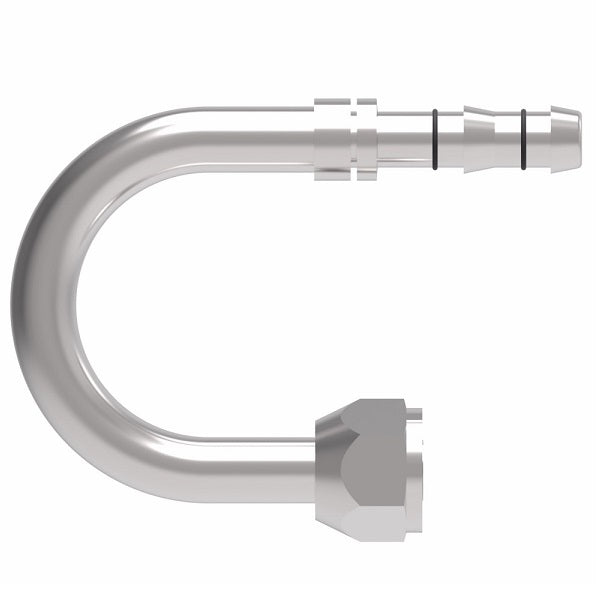

FJ3623-0808S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) 180° Elbow | A/C Refrigeration Fitting | -08 Female O-Ring Long Pilot x -08 Hose Barb | Steel

FJ3623-0808S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) 180° Elbow | A/C Refrigeration Fitting | -08 Female O-Ring Long Pilot x -08 Hose Barb | Steel

Name: FJ3623-0808S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) 180° Elbow | A/C Refrigeration Fitting | -08 Female O-Ring Long Pilot x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FJ3623-0808S Danfoss
Price: 163.06 USD
Availability: InStock

$163.06 - $163.06

$163.06

$163.06 - $163.06

$163.06

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Long Pilot) - 180° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.

Quantity

Specifications for Variant SKU: FJ3623-0808S Danfoss
Brand:	E-Z Clip
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female O-Ring Long Pilot, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	GH001 Series \| GH134 Series

Additional Information:
E-Z Clip Assembly Instructions & Guide.PDF


Steel Part Number	Thread "T"	Hose Size	H Ref.	Ref.	Clip & Cage Kit (Required)	O-Ring Options
Steel Part Number	Thread "T"	Hose Size	H Ref.	Ref.	Clip & Cage Kit (Required)	Neoprene	Green HNBR
FJ3623-0808S*	M20 x 1.5	-08	2.50"	0.94"	FF14172	22546-13	FF90178-13

* Made to Order
