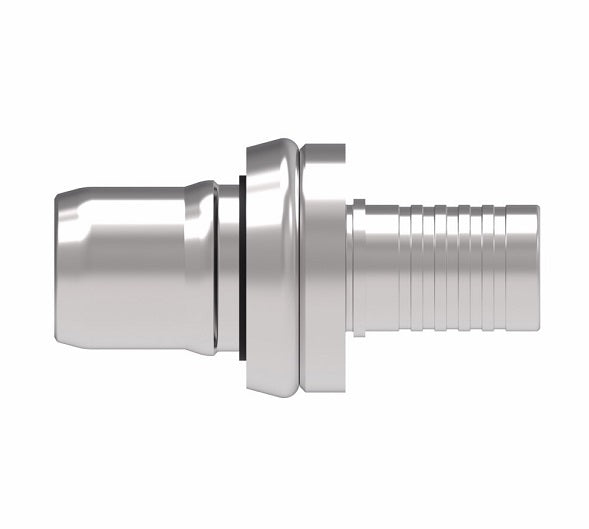

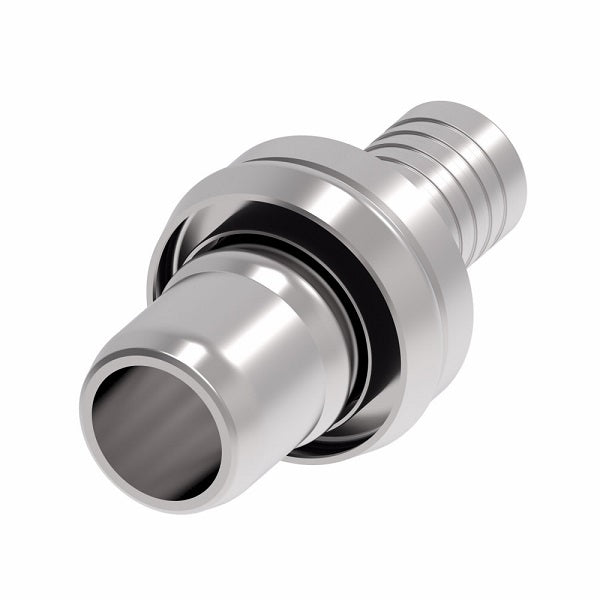

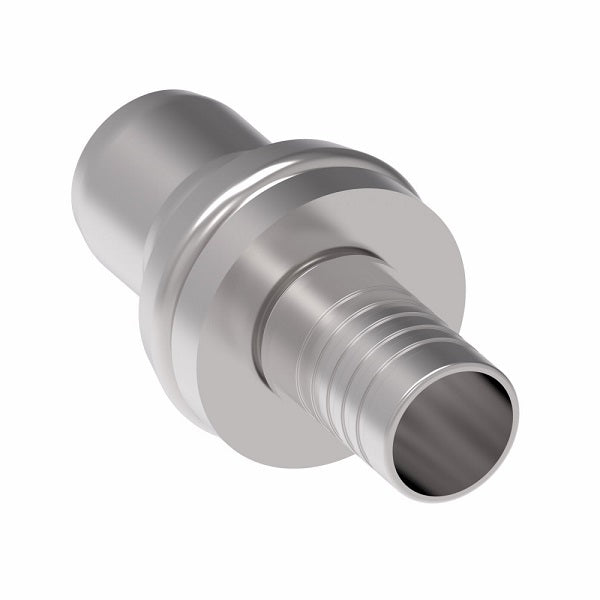

FJ4828-0808S Aeroquip by Danfoss | Nipple Assembly Male STC (Snap to Connect) Hose End (FJ) | For PTFE Hose | -08 Male STC x -08 Hose Barb | Steel
FJ4828-0808S Aeroquip by Danfoss | Nipple Assembly Male STC (Snap to Connect) Hose End (FJ) | For PTFE Hose | -08 Male STC x -08 Hose Barb | Steel
FJ4828-0808S Aeroquip by Danfoss | Nipple Assembly Male STC (Snap to Connect) Hose End (FJ) | For PTFE Hose | -08 Male STC x -08 Hose Barb | Steel
FJ4828-0808S Aeroquip by Danfoss | Nipple Assembly Male STC (Snap to Connect) Hose End (FJ) | For PTFE Hose | -08 Male STC x -08 Hose Barb | Steel

FJ4828-0808S Aeroquip by Danfoss | Nipple Assembly Male STC (Snap to Connect) Hose End (FJ) | For PTFE Hose | -08 Male STC x -08 Hose Barb | Steel

$34.18 - $34.18
$34.18
$34.18 - $34.18
$34.18

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - Nipple Assembly for PTFE Hose - Male STC (Snap to Connect) Hose End (FJ) - Straight

For use with 2807 & FC465 Hose and FC3443 & FC3596 Sockets.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ4828-0808S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male STC, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 2807 Series  |   FC465 Series
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 D1 D2 L1 L2 STC Release Tool
FJ4828-0606S 0.25" 0.71" 1.58" 1.09" FF90213-06
FJ4828-0808S 0.35" 0.91" 2.18" 1.29" FF90213-08
FJ4828-1010S 0.44" 0.94" 2.29" 1.40" FF90213-10
FJ4828-1212S 0.56" 1.26" 2.46" 1.57" FF90213-12
