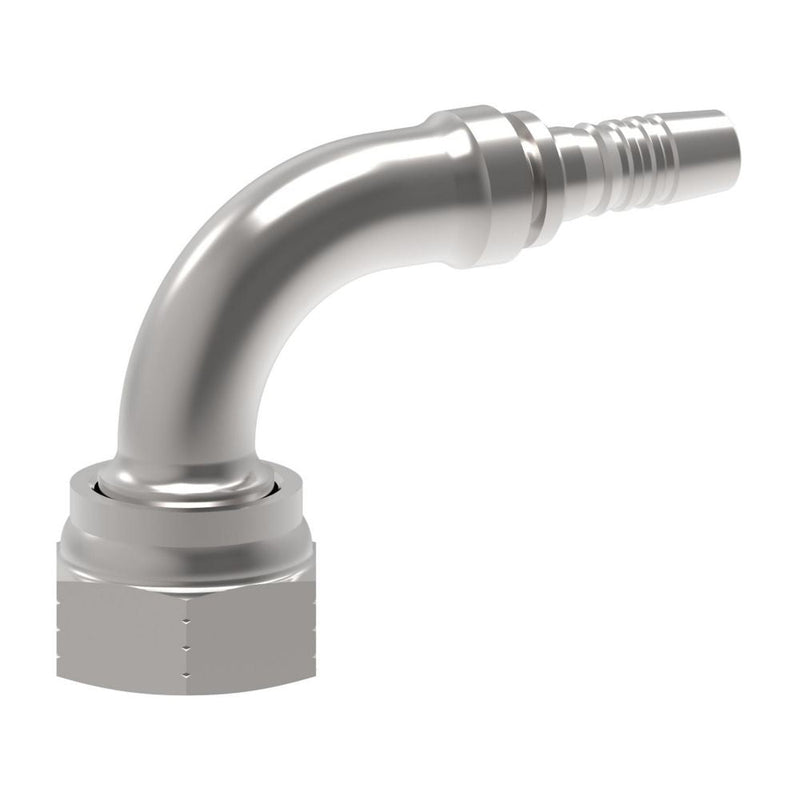

FJ4896-04-0808S Aeroquip by Danfoss | A/C Refrigeration Crimp Hose Fitting | 90° Elbow | -08 Female SAE 45° Swivel x -08 Hose Barb | Carbon Steel

FJ4896-04-0808S Aeroquip by Danfoss | A/C Refrigeration Crimp Hose Fitting | 90° Elbow | -08 Female SAE 45° Swivel x -08 Hose Barb | Carbon Steel

$28.54 - $28.54
$28.54
$28.54 - $28.54
$28.54

Danfoss A/C & Refrigeration
A/C Refrigeration Crimp Hose Fitting - Female SAE 45° Swivel - 90° Elbow
Specifications for Variant SKU: FJ4896-04-0808S Danfoss
Brand: Aeroquip
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female SAE 45 Flare, 1/2in Hose Barb
Material(s): Carbon Steel
Applicable Specs & Approvals: Swivel
Compatible with the following Series: GH001 Series  |   EC007 Series
Carbon Steel
Part Number		 Thread "T" Hose Size A D H Hex 1
FJ4964-0404S 7/16-20 -04 2.08" 1.41" 1.00" 0.56"
FJ4896-03-0606S 5/8-18 -6 2.44" 1.42" 1.25" 0.75"
FJ4896-04-0808S 3/4-16 -08 2.79" 1.65" 1.53" 0.88"
FJ4896-05-1010S 7/8-14 -10 3.48" 1.94" 1.78" 1.06"
FJ4896-06-1012S 7/8-14 -12 3.82" 2.07" 1.78" 1.06"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
