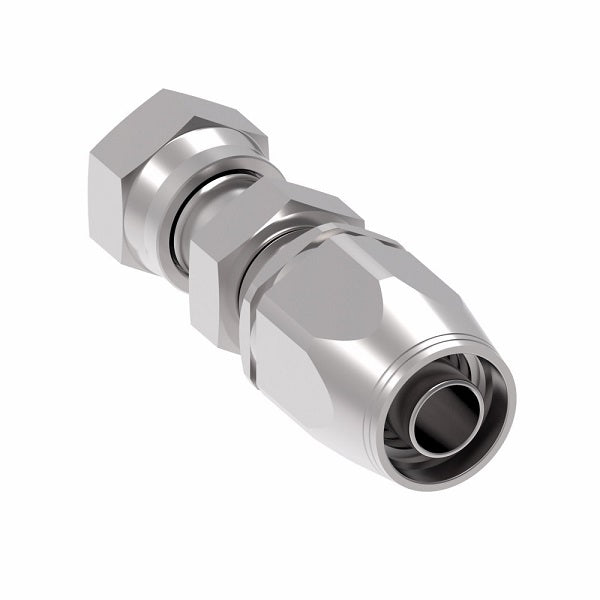

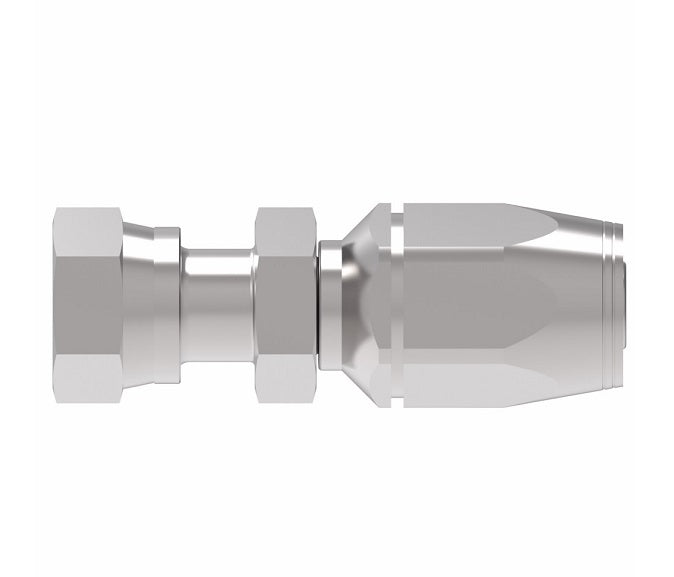

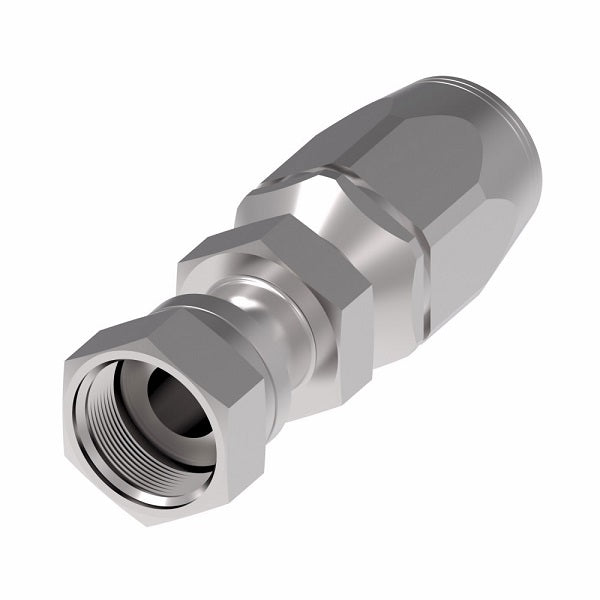

FJ7344-0404S Aeroquip by Danfoss | Female ORS Swivel 100R2 TTC Reusable Hose Fitting | FJ Series | -04 Female O-Ring Face Seal Swivel x -04 Reusable Hose End | Steel
FJ7344-0404S Aeroquip by Danfoss | Female ORS Swivel 100R2 TTC Reusable Hose Fitting | FJ Series | -04 Female O-Ring Face Seal Swivel x -04 Reusable Hose End | Steel | Pack of 10
FJ7344-0404S Aeroquip by Danfoss | Female ORS Swivel 100R2 TTC Reusable Hose Fitting | FJ Series | -04 Female O-Ring Face Seal Swivel x -04 Reusable Hose End | Steel | Pack of 10
FJ7344-0404S Aeroquip by Danfoss | Female ORS Swivel 100R2 TTC Reusable Hose Fitting | FJ Series | -04 Female O-Ring Face Seal Swivel x -04 Reusable Hose End | Steel

FJ7344-0404S Aeroquip by Danfoss | Female ORS Swivel 100R2 TTC Reusable Hose Fitting | FJ Series | -04 Female O-Ring Face Seal Swivel x -04 Reusable Hose End | Steel | Pack of 10

$1,169.15 - $1,169.15
$1,169.15
$1,169.15 - $1,169.15
$1,169.15

Aeroquip® by Danfoss
100R2 TTC Reusable Hose Fitting - FJ Series - Female O-Ring Face Seal (ORS) Swivel - Straight

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: FJ7344-0404S Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 1/4in Female O-Ring Face Seal, 1/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: GH793 Series
Technical Info:
Note:
  • For use with GH793 hose ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size "T" Thread A D EØ
FJ7344-0404S -04 9/16-18 2.76" 1.59" 0.16"
FJ7344-0606S -06 11/16-16 3.03" 1.69" 0.26"
FJ7344-0808S -08 13/16-16 3.40" 1.89" 0.36"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
