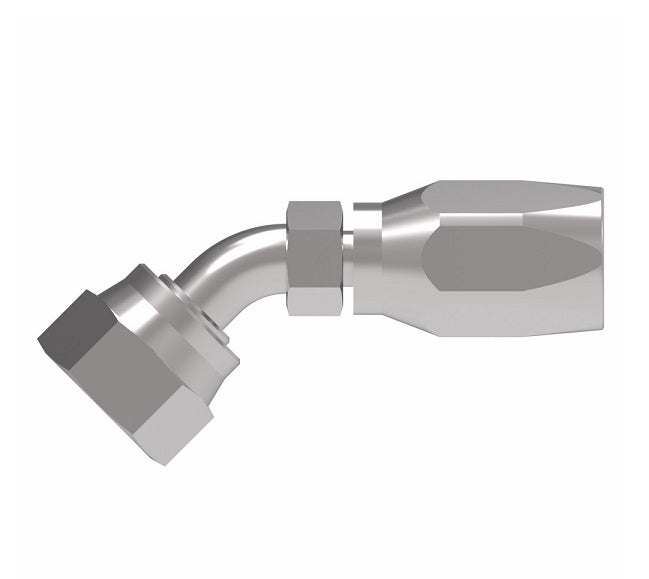

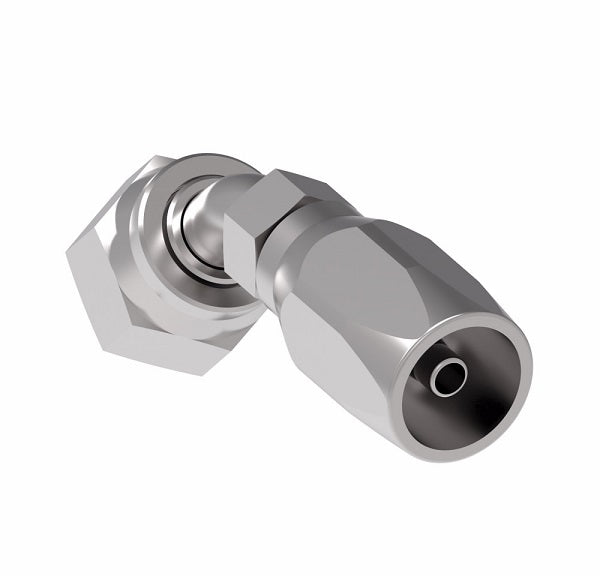

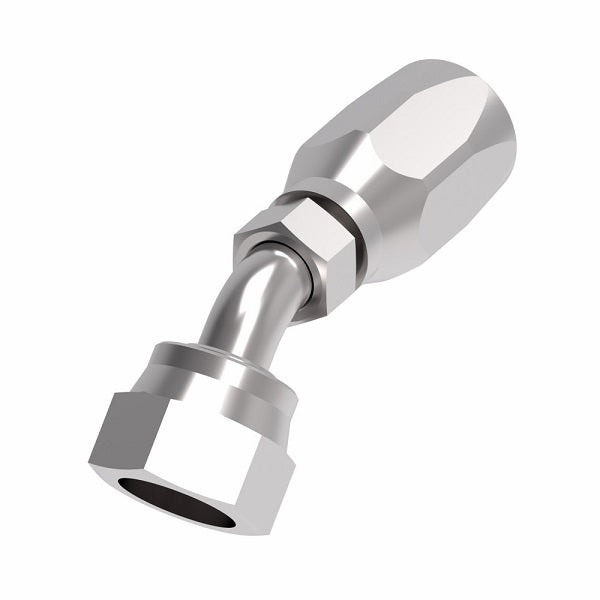

FJ9707-0404S Aeroquip by Danfoss | Female ORS Swivel 45° Elbow 100R5 Reusable Hose Fitting | -04 Female O-Ring Face Seal Swivel x -04 Reusable Hose End | Steel
FJ9707-0404S Aeroquip by Danfoss | Female ORS Swivel 45° Elbow 100R5 Reusable Hose Fitting | -04 Female O-Ring Face Seal Swivel x -04 Reusable Hose End | Steel
FJ9707-0404S Aeroquip by Danfoss | Female ORS Swivel 45° Elbow 100R5 Reusable Hose Fitting | -04 Female O-Ring Face Seal Swivel x -04 Reusable Hose End | Steel
FJ9707-0404S Aeroquip by Danfoss | Female ORS Swivel 45° Elbow 100R5 Reusable Hose Fitting | -04 Female O-Ring Face Seal Swivel x -04 Reusable Hose End | Steel

FJ9707-0404S Aeroquip by Danfoss | Female ORS Swivel 45° Elbow 100R5 Reusable Hose Fitting | -04 Female O-Ring Face Seal Swivel x -04 Reusable Hose End | Steel

$42.02 - $42.02
$42.02
$42.02 - $42.02
$42.02

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female O-Ring Face Seal (ORS) Swivel - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ9707-0404S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Female O-Ring Face Seal, 1/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Hose Size "T" Thread A D EØ H
FJ9707-0404S -04 9/16-18 1.96" 1.21" 0.13" 0.41"
FJ9707-0606S -06 11/16-16 2.27" 1.37" 0.22" 0.43"
FJ9707-0808S -08 13/16-16 3.03" 1.88" 0.36" 1.59"
FJ9707-0404S -10 1-14 3.38" 2.08" 0.46" 0.65"
FJ9707-1212S -12 1-3/16-12 3.84" 2.27" 0.55" 0.83"
FJ9707-1616S -16 1-7/16-12 3.62" 2.35" 0.76" 0.94"
FJ9707-2020S -20 1-11/16-12 4.09" 2.72" 1.01" 1.00"
FJ9707-2424S -24 2-12 4.32" 2.87" 1.26" 1.07"
